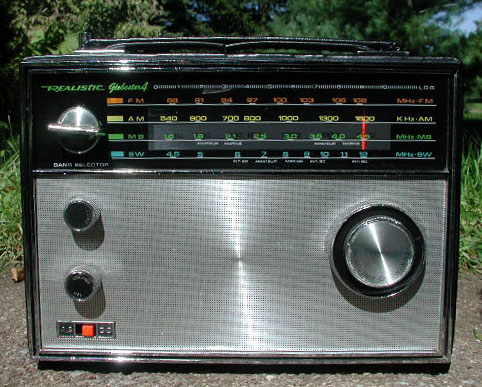

|Realistic "Globester 4"||Grundig "2440U"||Tivoli "Model One"||Grundig "Transistor 1005 Automatic"||General Electric "T128H"|

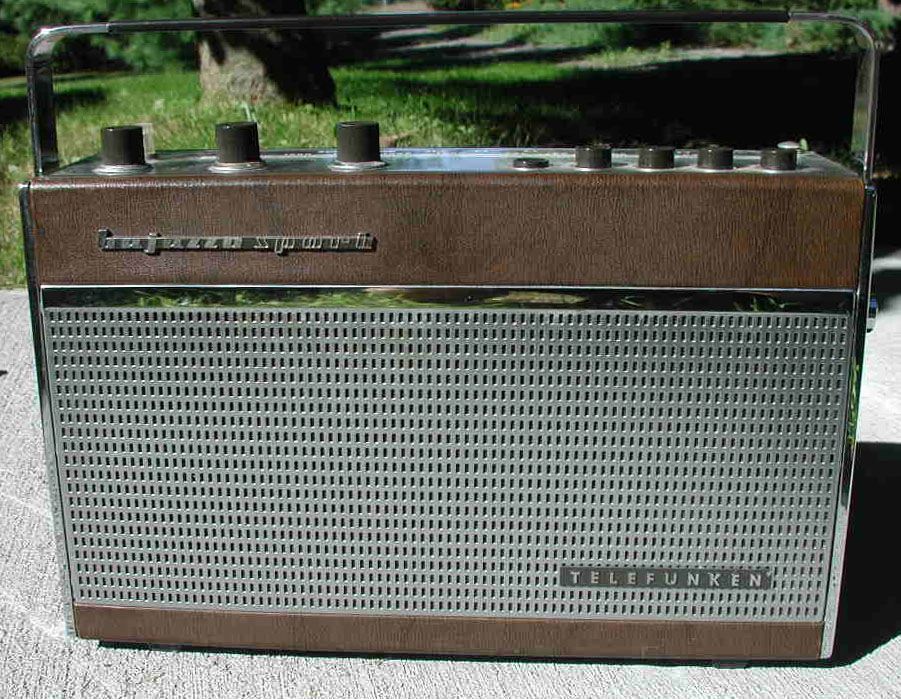

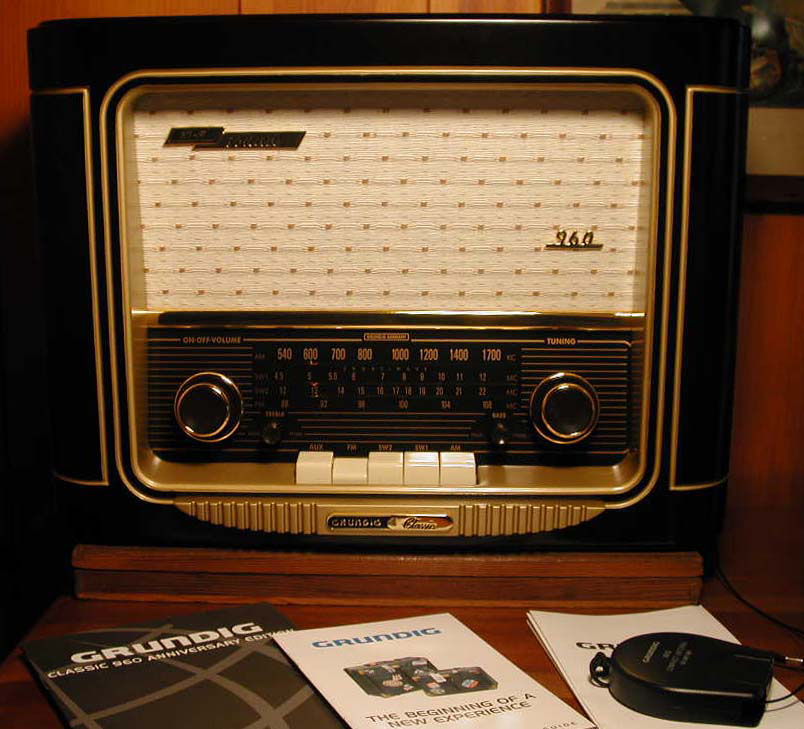

|Grundig "Classic 960"||Telefunken "Bajazzo Sport"||Telefunken "Opus 7"||Realistic "Patrolman CB-8"||Realistic "DX-160"|
|Telefunken "Jubilate de Luxe" Type 5461 W||General Electric "Superadio III" Model 7-2887||Blaupunkt "Sultan" Type 20203||Grundig "S350DL"||Zenith "Trans-Oceanic" B600|
|Uniden "PRO 520XL"||Realistic "TRC-205"||Realistic "TRC-450" AM / SSB C.B. Radio Transceiver||Hallicrafters "S-40"||E.F. Johnson "Viking Valiant" (transmitter)|
|Radio Shack "AM/FM Digital Tune Headset Radio" model: 12-932||Hallicrafters "S-120A"||Toy Car Novelty Radio||General Electric "P977E"||Sony "ST-80W" AM/FM stereo tuner|
|Philco "Tropic" Overseas Model B3101B||Battery Tester (pocket volt meter)||Kiesewetter Battery Tester (pocket volt meter, 1-3 volt range)||Sony "ICF-9550W" AM/FM table-top radio||Grundig "Yacht Boy 400"|

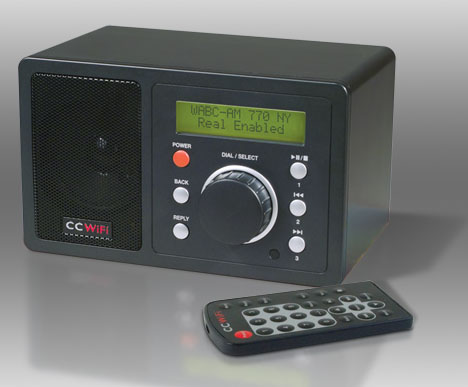

|C. Crane "CC Wi-Fi internet Radio"||"Aqua Guide 705" Radio Direction Finder||Miniature European radio (replica) with tinplate Mercedes-Benz Type 220Sb||Miniature European AM/FM/SW radio (replica)||Grundig "Satellit 750" and Grundig "G6 Aviator"|
|Vintage Mercedes-Benz Grille (Novelty Radio)||Blaupunkt "Granada deluxe 3D 2330"||Nordmende "Transita DeLuxe"||Saba "300 Automatic Stereo 11"||Grundig "Transistor 301"|
|Nordmende "Globetraveler"||Grundig "Locarno 3/U" stereogram||Grundig "RTV 320U"||Panasonic "R-70" / "Panapet"||Gulden's Mustard novelty radio|

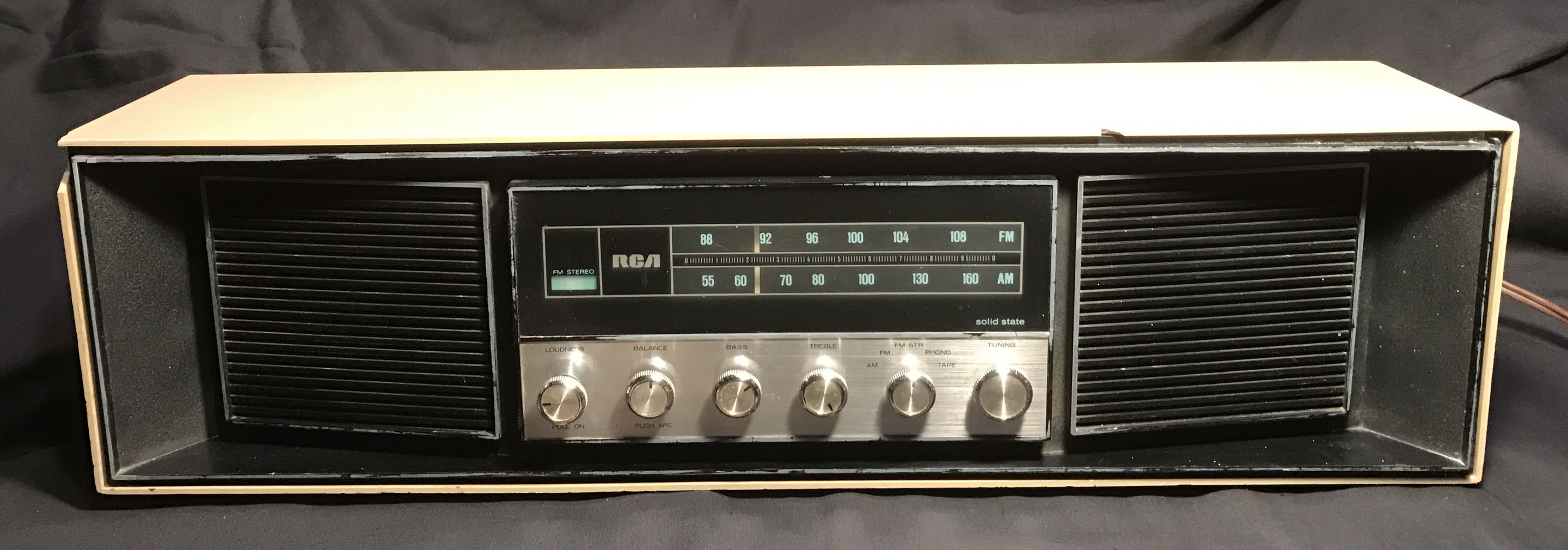

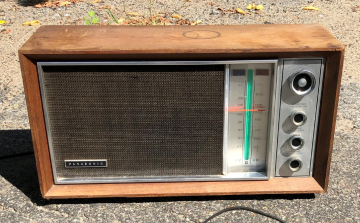

|RCA "RLC 70B"||Grundig "2420U"||Gumby novelty radio||Panasonic "RE-7259"||General Electric "7-4100JA"|

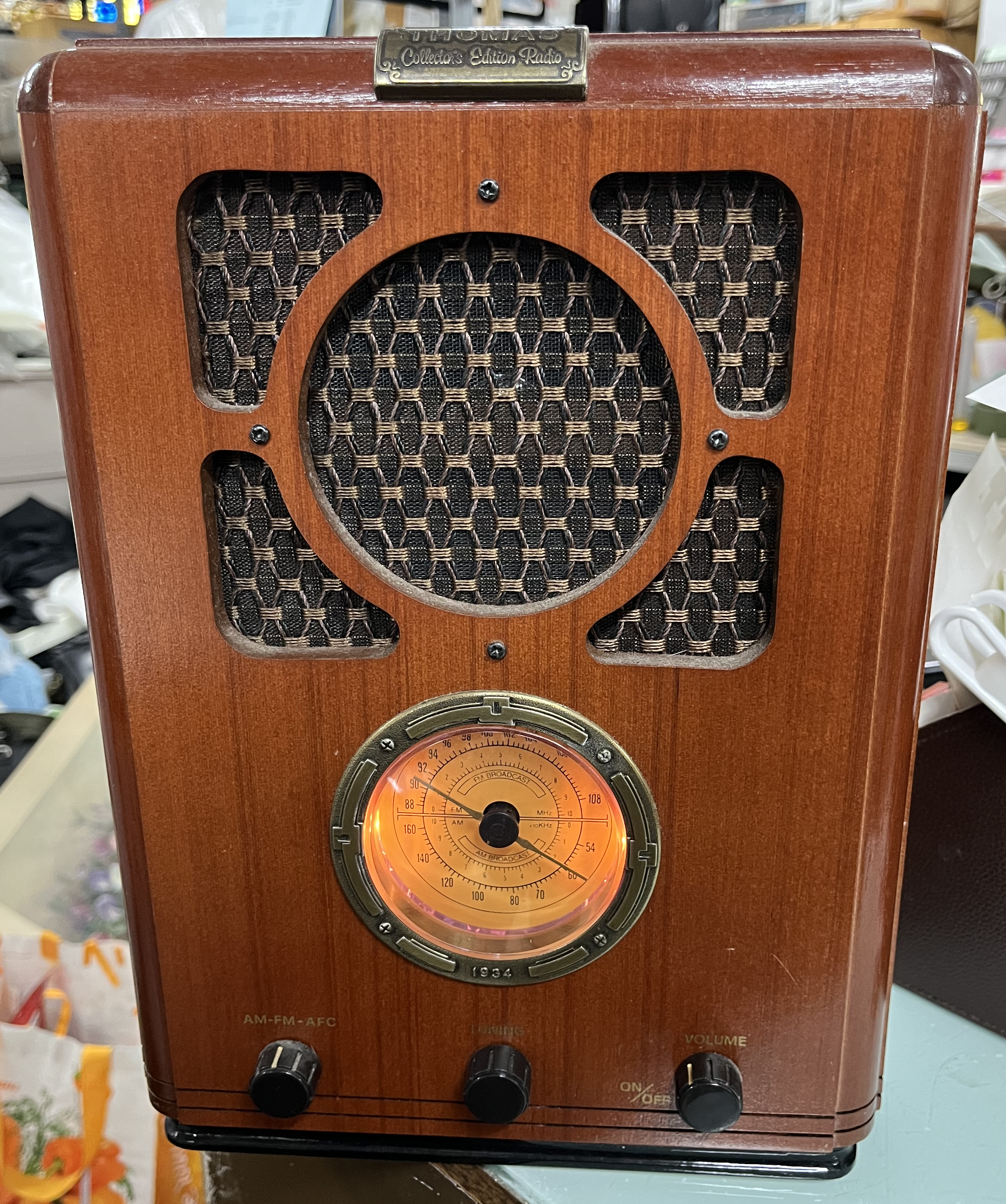

|Thomas "710" 1934 replica||General Electric "Superadio II"||General Electric "7-4691 A"||Other Interesting Radios||C.B. Radios / Scanners|
Growing up in the 1960s, my maternal grandparents owned a 1948 RCA Victor model 77V1 AM radio-phonograph console. The top of the cabinet was divided into two separate hinged sections. Raising the right side revealed the AM radio tuner – with illuminated dial, and dark brown Bakelite knobs. Under the wider, left side, the turntable was accessible. The famous RCA logo with the dog (Nipper) listening to "His Master's Voice" was on the inside of the phono cover. I spent quite a few afternoons and early evenings laying on the dining-room floor listening to various types of music – admiring the colorful record labels. I would focus my gaze on the small red pilot lamp at the base of the console as the sounds drifted through the room. I have a photograph of this set, but need to un-earth it from the archives.
1948 RCA Victor model 77V1 (Chassis RC-615) - AM broadcast radio and

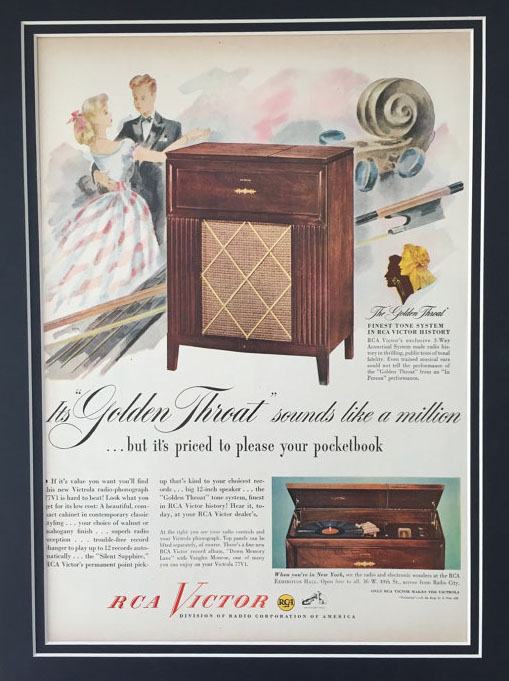

Left: Advertisement from May 17, 1948 LIFE magazine (page 50) / Right: Sams Photofact Set #38 Folder #18 (cover only)

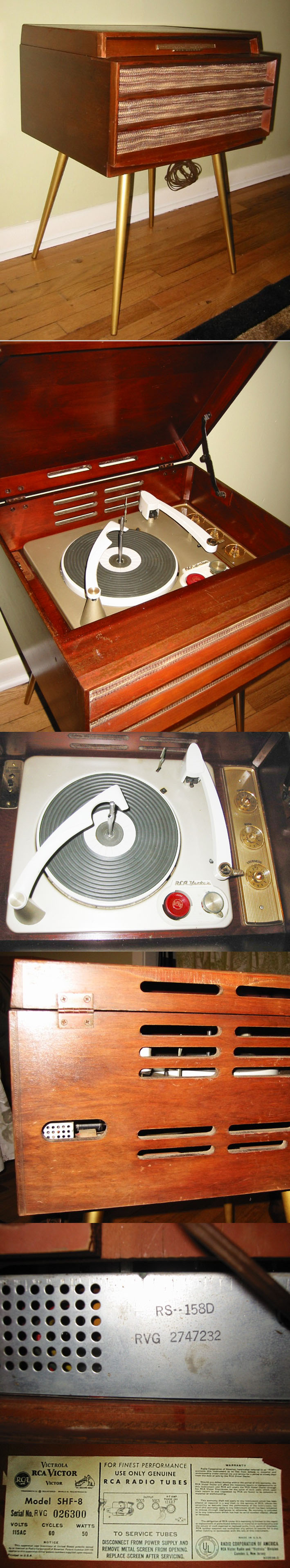

In our own home, we had a circa 1956 RCA "Orthophonic" (model SHF-8) phonograph. It had a contemporary dark wood cabinet, and was supported by thin, tapered, metal legs that were fashionable in the decorative arts such as interior and furniture design (see photo). The legs were removable, so it could be converted to a table-top model. That system was in service until 1972 when we got a Denon AM/FM (stereo) tuner/phonograph. I am not sure what happened to the RCA Orthophonic set. Household favorites played on the RCA system included The Village Stompers (Dixieland Jazz), Louis Armstrong, Oscar Peterson, Herb Alpert and the Tijuana Brass, to name only a few. My parents were members of the Columbia Record Club, and received regular shipments of new music. I have since inherited all of those 12 inch vinyl LP ("long playing") gems, and believe they stood the test of time rather well. The Village Stompers albums are still in excellent condition, and sound great, but I am getting ahead of myself.
RCA "Orthophonic" (model SHF-8) phonograph (no
radio) like the one in my childhood home
Photos Courtesy: Susan Manning / December 6, 2006
My original "Hey Jude" 45 RPM from Jay's Record Ranch
I started to realize that I had a growing personal interest in radio, music, and recorded sound in 1968 when I was eight years old. It began to take shape when my mother drove me to "Jay's Record Ranch" (long gone) in Henrietta, NY to buy my first 45 RPM vinyl record. It was the Beatles "Hey Jude" (B side: "Revolution"). The tune was hugely popular at the time, and through tight Top 40 play-list rotation during the nine weeks it spent at the number one position in the U.S. charts, it became permanently engraved in my mind. That day was to me what the "Big Bang" was to the Universe. A moment in time that marked the beginning of an enduring, ever expanding appreciation for music, as well as buying, collecting, and trading recordings, making audio tapes, radio announcing, production engineering, and having a general interest in (and technical understanding of) audio and radio communications equipment.
Sometime in the late 1960s, I was introduced to a local radio personality called Nick Nickson. As I recall, Nick was a tall, outgoing, charismatic guy with a thunderous baritone voice that was a natural for radio. He also happened to be a business associate of my grandfather's, so I was invited to visit the WBBF (AM 950 kHz) studios, where he worked in downtown Rochester. WBBF was a popular Top 40 hit music station at the time, and it was exciting to see the station from the inside. As a souvenir of my visit, I was given the promotional LP (12 inch vinyl) album, "Past Powers", which featured some of the most popular tunes of the day. I memorized that record, and the tour of the station left an impression. Nick passed away in January 2016 at the age of 93.
WBBF's "Past Powers" oldie album (circa 1967-68). These portraits made up the back sleeve of the album; featuring WBBF radio personalities (clockwise from top left): Jack Palvino, Tim Griffin, Matt Rinaldi, Larry White, Ferdinand J. III, and Art Gibson.
A year or two later, I was also given a follow-up album called, "WBBF 22 Golden Oldies", and I still have both of them in my collection. I later learned that Nick was one of the charter employees of WBBF, and also found photos of him (on the internet) interviewing Elvis Presley ( Photo 1 Photo 2).

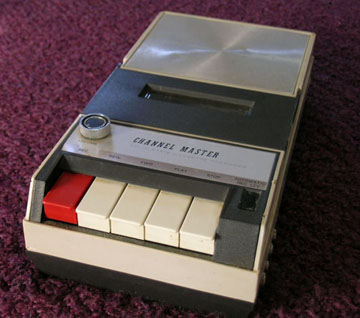

Around 1970-1971, I became fascinated with cassette tape recorders – in part because of a neighborhood school-mate (Scott Vandusen) who shared an interest in recorded sound (radios, music, etc.). The first unit we played with was his Channel Master model "6305A" 3 – a small, portable, AC/DC unit, which was purchased new at Rochester Radio. We spent many afternoons calling local radio stations (primarily WBBF AM 950) making spontaneous requests, and trying to win prizes while recording the antics to enjoy later. Unfortunately, none of the tapes were known to have survived. Update: On February 19, 2016 Scott gave me the old Channel Master and AC "wall wart" power adapter. I cleaned and lubed the internal parts, and used DeoxIT on the volume control pot and wall wart connector, and it sounded as good as ever (see video). Click here to see a 1981 self portrait of Scott Vandusen at WMJQ.
I discovered that when people listen to their own voice recorded for the first time, they may be surprised by what they hear. Experimenting with tape recorders made me develop an opinion of what a good radio announcer should sound like. As I listened to myself (and others) on those early tapes, I began to modify my own speaking style so that I was comfortable hearing the voice played back. This experimentation period proved to be essential later on, when I hosted my own broadcast radio programs.
When I was about 12 or 13 years old, my parents got me my own portable cassette tape recorder with an integrated AM/FM radio. The brand may have been Lloyds, but the model number is lost to history. I remember it had a black plastic body and an imitation wood-grain speaker grille. I would sequester myself in the basement to paint and draw while listening to my favorite stations. One of them was WCMF 96.5 MHz (FM). This points out one of the great features of radio, which is that it allows one to perform other activities while listening. The station (WCMF) had a slightly "underground" format in 1974 and sounded quite different (less corporate) from the last time I scanned the FM dial. It also included a broader, more eclectic musical mix than one generally hears on any given station today. In general, the radio programming was more flexible back then, and still included more than one culture per station, unlike today's state of affairs where big business management and program directors (who may be far removed from the station and the listener community) seem to make programming decisions based on faulty assumptions, or marketing research that the listeners have an extremely limited range of musical tastes. For me, a good radio station would be able to play classical, jazz, news-traffic-weather, funk, heavy metal, folk, sea shanties, klezmer, blues, gospel, grunge, rhythm & blues, polka, bluegrass, rock, fusion, oldies, world, soul, alternative, reggae and ethnic all in one day, but I digress.
Let me rewind to 1974 and WCMF again. The disk jockeys seemed real to me because another wonderful thing about radio is that it enables the listener to use their imagination to fill in the gaps. If someone is telling a story on radio, and 10 people hear it, the story will be visualized in at least 10 different ways. The DJs I remember at WCMF from that period are Bernie Kimble, Suzanne King, Gary Whipple, and Roger McCall (a.k.a. "Unkle Roger"). Roger would normally work the late-night "graveyard" shift and quite often play complete album sides or even entire albums. To a large extent, the music play-list and formatting was left up to the individual announcers, which gave the programs (and the station) a unique personality and provided the listener with more variation. For an example of what can happen when a station does not have enough program direction, search the internet for WSAY 1370 kHz (AM) sometime. Anyway, one particular album Roger McCall (tragically, Roger was murdered in December 2003) played that I remember is Edgar Winter's "Entrance" (1969 / Epic AL34858). One entire album side is devoted to a collection of jazz, rock, funk and R&B compositions strung together to make one interesting larger piece. Bernie Kimble (died March 2017) had the weekday show during the afternoon. He was a good announcer, and every Friday afternoon at 3:00 he would play John Hartford's "Boogie" (...hey babe, ya wanna boogie...). One could set their watch to it and it also signified that the end of the school week (and/or work week) was approaching. Suzanne King had a lovely voice, and as I recall, favored the folk-rock end of the spectrum and many of the British bands of the day. I developed an abstract, imaginary idea of what she, and the other jockeys might look like based on their distinctive and intriguing voices.
Radio Interview with a British Gentleman
In 1976, when I was 16, I took a summer semester driver's education course through my high school (Gates-Chili). I persuaded the instructor, Mrs. Carol Oehlbeck (wife of our gym teacher, Gary Oehlbeck), to let me drive the students (in the school's brand new, dark blue, 1976 Pontiac LeMans four-door sedan) to WCMF in order to see the studios and meet Suzanne King. At the time, the station was located at 129 Leighton Avenue across from East High School. It was a really big moment for me. I guess for lack of interest, nobody else came up to the studio, which was fine. I rang the buzzer and entered. I seem to recall climbing about 25 steps leading up to the studios and offices. When I got to the top, Suzanne was there to greet me in casual and friendly way. I took a quick look around the studio (and the rest of the station) while she continued to do her show. At that time, they were still playing 12” vinyl LPs. It would be almost another 15 years before CDs replaced vinyl in the studio. During that visit, I also met Roger McCall who was hauling stacks of records around the station. It was interesting to meet these people in person because they did not appear anything like I envisioned! This is partly why radio is such an engaging medium – it naturally invites the listener to use their visual imagination.
In 1978, my first car (1968 Oldsmobile Delmont 88 convertible with a 455 cubic inch engine) was equipped with a factory installed AM-only radio, so I bought and installed an "FM converter" to listen to the frequencies that were becoming the "stations of choice", and recall feeling quite technically savvy about doing that! My third car was a 1969 Chevrolet Malibu, which sported a bumper sticker that read, "Radio in Rochester Insults My Intelligence." The source of the sticker was The Record Archive – then located at 1394 Mount Hope Avenue.
It was also during this period (November 20, 1978 to be exact), that I bought my first "serious" audio system, the main component being a 20 watt per channel Harman/Kardon "hk 340" AM/FM stereo receiver. About a year earlier, I looked at the Harman/Kardon "hk 330c" receiver (an earlier model) but by the time I saved up enough clams, the hk 330c had been dropped from the Harman/Kardon program, so I got the newer "hk 340" instead. The system also included the small Advent speakers, also known as the "Advent 1" loudspeakers. The tab for the "hk 340" and the pair of "Advent 1" speakers came to $431.21.
Incidentally, Advent was a company started by Henry Kloss, originally of Acoustic Research and KLH fame. I have provided more detail about Henry Kloss along with the overview of the Tivoli "Model One" radio. In order to spin the 12" vinyl records, I also purchased a Dual "504" belt-drive turntable for $199.02 the day after the Harman/Kardon receiver - November 21, 1978. I bought the "hk 340" receiver and "Advent 1" speakers at The Sound Chamber, which was located in Buckman's plaza at 2584 Ridge Road West, just west of Long Pond Road. I learned that a store's "lifetime warranty" was only good for the lifetime of the store and not the length of time I owned the equipment. When they went out of business a few years later, the warranty vaporized along with them. Finally, to complete the system, a Pioneer "CTF-500" stereo cassette recorder was purchased at "Sounds Great" (Jefferson Road) on January 13, 1979, for $145.52.
As of this writing (August 16, 2006), the Harman/Kardon receiver and Advent 1 loudspeakers and Dual 504 turntable were still in service as a system, although several cassette tape recorders have come and gone, and now, there is also a remote controlled, five disk CD changer. The Harman/Kardon has never needed any repairs, with the exception of the occasional application of contact cleaner on the "function" knob (any maintenance and repair amendments posted below). The system has served me well through five moves. The Advent 1 cabinets have picked up a few small scuffs along the way, but still perform to my satisfaction. The woofers were replaced around 1999 when I discovered the foam suspension material had disintegrated. I went to a local store called The Speaker Place (in the same Henrietta plaza where Jay's Record Ranch, and the El Rancho Gaseteria once stood) that had the correct size OEM (original equipment manufacturer) woofers in stock.

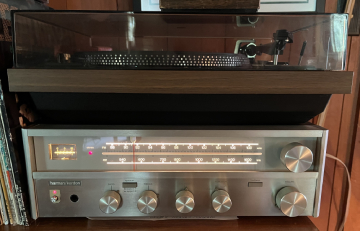

This July 1981 photo features the Harman/Kardon "hk 340" AM/FM stereo receiver with the Dual "504" belt-drive turntable, and a Pioneer "CTF-500" stereo cassette recorder with the "Advent 1" loudspeakers. The RCA radio-phonograph console (1948 model 77V1) at the extreme left of the photo was handed down from my grandparents. I believe the desk (on the right) may have originally been part of a radio set. The space in the center is too small for a chair, but it could have accommodated a floor loudspeaker. I have seen similar desks with the radio and speaker. Anyone with more information on this type of desk, or the RCA console is encouraged to contact me.
Harman/Kardon hk 340 update / 11-mar-2007:
The Harman/Kardon hk 340 needed a signal strength meter lamp. There are five identical "fuse lamps" illuminating the tuning dial and meter. Lamp (original specifications): 8 V, 300 mA, fuse type, incandescent, 1.2" long (30 mm) 0.25" Ø. The bulbs, known as "fuse lamps", look like Type 3AG fuses and are socketed in fuse holders. I bought a set of eight replacement lamps (8V, 250 mA) from Vintage Electronics via eBay. www.vintage-electronics.net Price was $0.75 per lamp. Shipping was reasonable ($4.15). Total was $10.15.
Harman/Kardon hk 340 update / 15-mar-2007:

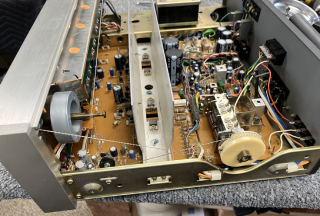

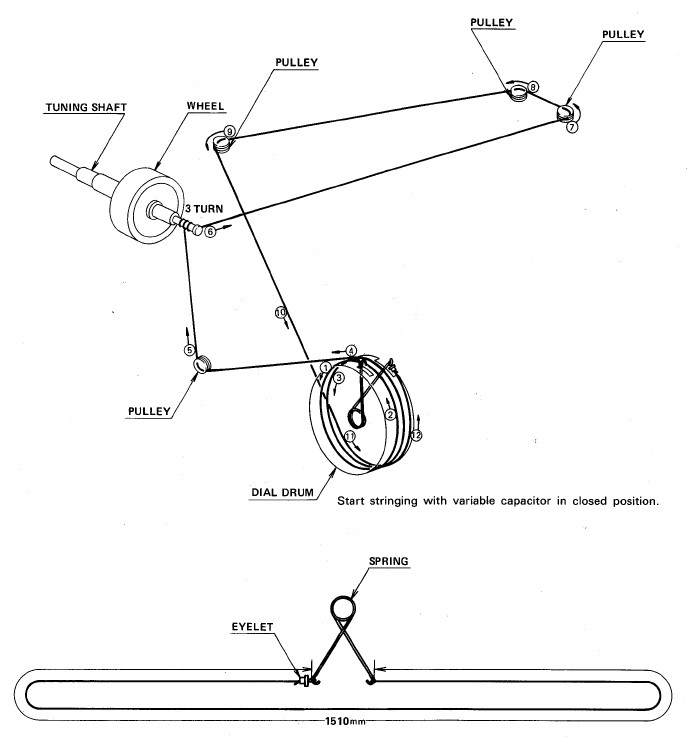

The Harman/Kardon hk 340's signal strength meter stopped working about 10 years ago, so I finally began to investigate. I will disconnect the meter and apply a small current to the two pins of the meter to see if it is faulty. If the problem is with the meter, then no further troubleshooting will be needed. I have located a source for a good meter from another hk 340. I borrowed a Smiths d.c. millivolt source Type 5100 (England) for this job. Most meters have a 50, 100 or 150 µA movement. The Smiths power source is in millivolts. With a 1500 Ω resistor in series connected to the output, set the vernier to zero and the coarse millivolt control to the 10 millivolt range. The meter should move a little. From that point, increase the coarse setting in steps (10, 20, 30, 40, 50 mV) while watching the meter. At about 50 millivolts I should see between 1/3 and full scale deflection depending on what the meter is is rated for. No need to peg the meter at full scale. If it will move to half scale, it is OK. Starting low and working up is the key to not destroying the meter with and overcurrent surge.
In 1981, I hosted the first of two distinctly different college radio shows. The FCC issued my "Restricted Radiotelephone Operator Permit" (for broadcast radio) on June 12, 1981 in order to meet the legal requirements of hosting a classical music program (Beethoven, Mozart, Ravel, etc.) on Saturdays (11:00 a.m. - 1:00 p.m.) at WRUR (88.5 MHz) at the University of Rochester (U of R). The format featured classical music all weekend long. My first show was around May 16, and it repeated every Saturday for 11 weeks – until August 1.
Entrance to the WRUR studios - July 1981
This photo shows the entrance to the WRUR studios at the U of R – taken by myself (aged 21 years) in July 1981. Overall, working at WRUR was both technically, and musically enlightening. It gave me the on-air and studio experience I was seeking, and I became more familiar with classical music. Most of the shows were planned about 30 minutes before the show began by pulling records from their vault. Regrettably, I did not take any photos inside the studios, or make any recordings of the shows.
Mysterious Request from a WRUR Listener
One of the more peculiar things that happened at WRUR was when I agreed to cover a shift for a fellow D.J. called Duncan Walls. He was feeling ill, and asked me to cover his Monday night "dance show." I really had no idea what his (or anyone else's) interpretation of dance music was, but I obliged by showing up that night with a stack of records from my personal collection, which included (favorites at the time): Joni Mitchell, Genesis, Dan Fogelberg, Charles Mingus, and Weather Report – to name just a few. It was a hot August night, and I received one or two calls from the audience (possibly Duncan himself) asking about the dance music, but of course, continued playing selections from my private cache.
In those days (i.e. before music CD players), the next tune had to be queued up on a second turntable. I was already playing a selection from the first turntable, and queued up an obscure track called American Tango from the 1974 Weather Report album Mysterious Traveller.
Cover of the 1974 Weather Report album Mysterious Traveller [sic]
It was all ready to go – when the phone rang. The caller said, "Are you taking requests tonight?" to which I replied, "Sure, what would you like to hear?" The voice said, "Can you play American Tango by Weather Report?" I said, "You're not going to believe this, but it's already queued up."
An illustration from a Mysterious Traveler [sic] comic book
That's the truth, but to this day, I am still unsure how it could have happened. Nobody else visited the studio that night. Maybe it was The Mysterious Traveler himself. Who knows?
Nine years later (from 1990 - 1995), I hosted a jazz music program at WITR 89.7 MHz (FM) at the Rochester Institute of Technology. The station format was all jazz from 6:00 p.m. until midnight every Sunday night. I should also mention that I recorded most of my WITR shows on cassette tape while at the studio.
Self-portrait made in the WITR (89.7 MHz) studio (January 1991) while hosting a weekly jazz program on Sunday nights. The mixing console in the photo was relatively new at the time. My involvement with WITR lasted from 1990 to 1995. The WITR station motto was, "Modern Music and More", so it is interesting to note that it was during this period that I met my future wife, who was hosting an "alternative" music show on Wednesday nights.
Also note Shel Silverstein's 1959 album, "Hairy Jazz" (Elektra EKL 7176). The liner notes for Hairy Jazz were written by Jean Shepherd (July 26, 1921 - October 16, 1999 / formerly K2ORS). At that time, Jean Shepherd was virtually unknown outside New York City.
WYSL (1040 kHz on the AM dial, and 92.1 on the FM dial) is located in the rural community of Avon, New York and has a 20 kW (20,000 watt) daytime signal that covers Rochester and much of the western Finger Lakes Region of New York state. The format is news, talk, weather, live sports, and programs of regional interest.
- September 2018: WYSL added a 250 watt translator (W238DE) in Spencerport, NY to rebroadcast W221CL on 95.5 FM.
- Friday January 15, 2010: WYSL added a 99 watt translator (W221CL) on Pinnacle Hill in Rochester to rebroadcast WYSL 1040 on 92.1 FM.
March 31, 2009 (Tuesday) — Met with the WYSL staff to discuss the possibility of filling a Sunday morning slot. I was invited back Sunday April 5 to start learning the ropes, which included engineering three live church services, and two live talk shows featuring Toronto Life, and New York state wines.
September 28, 2013 (Saturday) – Seized an opportunity to engineer the Saturday morning talk shows, including "The Tom Hamilton Show" (financial chatter, etc.), "Naturally Green" (gardening), "For The Love Of Food", and "Discover The Finger Lakes", which were hosted by Michael Warren Thomas (MWT). The Saturday gig began October 12, 2013.
|N2AWA / Production Engineer at WYSL Radio|
Self-portrait / iPhone 7 / WYSL "Master Control"
Sunday, June 2, 2019 / 9:11 a.m.

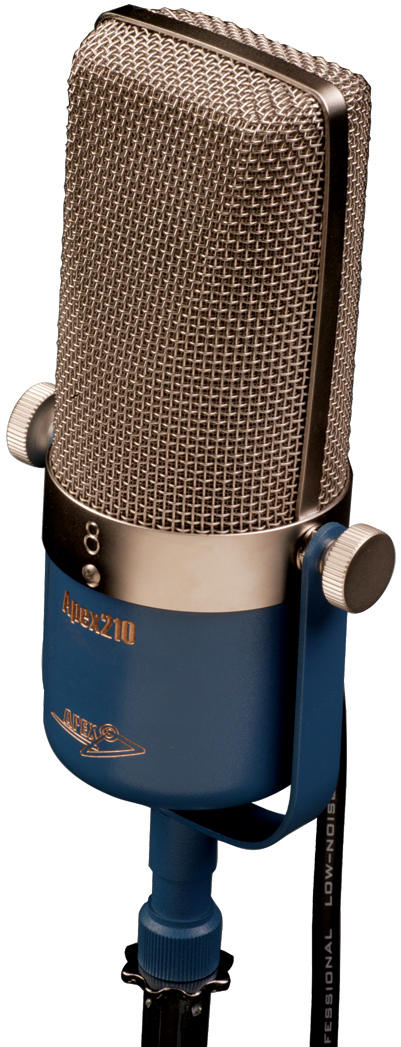

This photo was taken in the "Master Control" studio where I engineered the Saturday and Sunday morning shows with a blend of new and old technology – International Tapetronics Corporation (ITC) cartridge tape players, and contemporary computer automation working in concert! The microphone is an Apex model 210 ribbon style. The General Electric mixing console was built at Electronics Parkway in Syracuse, NY in 1971. A dual Numark "CDN35" CD player and various timers are on the shelf above the console.
Producer and Host of the Time Out! Radio Show at WYSL
Self-portrait / iPhone 8 / WYSL "Studio B"
Planning and producing the Time Out! radio show.
Saturday, August 1, 2020 / 10:00 a.m.
Time Out! host "Nozzle" before recording episode № 111.
Wednesday, August 3, 2022 / 10:18 a.m. / iPhone 13
The next chapter at WYSL began the weekend of June 6-7, 2020 when MWT unexpectedly left the station after being on the air for 19 years at the station. Two weeks later, the scope of the gig expanded for me when the station owner (Bob Savage) offered me my own show. At first, I was hesitant, but after a fortnight of thought, encouragement, and brainstorming (on the title, format, and features), it debuted June 27, 2020. The weekly, one-hour show was called Time Out!, and featured music, interviews, banter, esoterica, humor, etc. A popular feature was called Compare-O-Scope, which compared an early or original version of a song with a later, more popular and well-known cover version of the same song. The show aired Saturdays at 9:00 a.m. and 5:00 p.m. Podcasts were available through the WYSL website. Contact me today to be a guest on the Time Out! radio show.
Advertising = Customers = Revenue
Attention business owners: contact me today to enhance your marketing strategy.
Advertise with one of the most powerful AM stations in the Rochester and western Finger Lakes region of New York. Our broadcast footprint covers 3,000 square miles – and 1.4 million potential new customers. The 92.1 FM signal (via translator W221CL) is centered in Rochester atop Pinnacle Hill, and also broadcast in Spencerport on 95.5 FM – so you will reach your target audience.
Working on the bench (circa 1992). Not a vacuum tube in sight.
I have an A.A.S. in electronic technology, and for about seven years worked at a large factory (Eastman Kodak Company) fabricating, repairing, and maintaining electronic and computer equipment both on the bench and in the field. By the time I began studying the subject (circa 1984), vacuum tubes were only briefly mentioned in the textbooks as a historical footnote. Silicon microchips were the modern building blocks of electronic design. So, until I became interested in vacuum tube radios, I never studied vacuum tubes, or radio theory as such.
Somewhere along the way, I developed an interest in "older" (circa 1953-1974) European multi-band shortwave radios, so between 2003-2004, I began watching swap meets, garage sales, and online auctions in hopes of finding one of those illusive and intriguing sets. I will confess that the impetus for my interest in European radio styling of the 1950s may have been kindled by the magazine advertisements for the Grundig "Classic 960" (50th anniversary reproduction) radio. I searched the internet to find out what people thought of it, and discovered that when compared to the original, it was not well respected, and anyone with a genuine interest in old radios would be better served by finding a true survivor from the past.
When I look at these old radios, I don't just see an antique sitting on a shelf gathering dust. Rather, I glimpse a piece of history, culture, style, artistry, electronics, engineering, technology and mechanical craftsmanship all combined into one entity. That is even before it gets switched on! One sad thing is that most of the factories that produced some of the famous German and European radio sets no longer exist. AEG, Blaupunkt, Braun, Emud, Graetz, Grundig, Imperial, Kaiser, Kuba, Lowe Opta, Nordmende, Philips (Holland), SABA, Schaub-Lorenz, Siemens, Telefunken, Tonfunk, Wega, and who knows how many others are all gone. Grundig, Telefunken and Blaupunkt are still producing radios today, but not in Germany. The craftsmanship and technology has changed and the manufacturing takes place in other parts of the world. As an example, in 2006, Grundig was a mere coordination center of overseas manufacturing and assembly facilities. Nothing much was left, except the brand name and its sales network.1 2
The digital readout radios of today are nice to have because if the frequency of a particular shortwave station was difficult to locate on an analog tuning dial, the digital readout removes the guesswork from the equation. One only has to enter the frequency into the radio keypad to receive the station. On the other hand, something essential is lost with these new sets by eliminating the need to visually scan the dial for stations. With digital radio tuners (both at home and in late model automobiles) the tendency is to save one's favorite stations into memory and never bother to "scan the dial" for new stations. When I use a shortwave radio with digital tuning readout, I loose that visceral sense of "where I am" on the dial. So, I still prefer the old style tuning bar on the horizontal face plate so that I can visually know where I am in the spectrum. I hereby request that a manufacturer produce a modern digital tuner with an interface to the old style face plate and tuning bar. Grundig, are you listening? Note that the Sangean PR D2V "Q" AM/FM tabletop clock radio features an illuminated LCD readout with both digital, and analog style ("slide rule") tuning. Bravo Sangean!
I joined the Antique Wireless Association (AWA) on Wednesday, August 18, 2004 – primarily to take part in the swap meet being held at the Thruway Marriot hotel. The swap meet began on the opening day of the (43rd annual) AWA Annual Conference. AWA membership dues were $20, while it cost another $28 to gain access to the outdoor parking lot where the swap meet was being held. My first visit to the AWA Museum was Sunday, August 22, 2004 during an open house for the AWA Conference. In addition to the great collection of early radios, television sets and other electronic communication equipment, the kilowatt spark-gap generator was one of the most memorable things there.

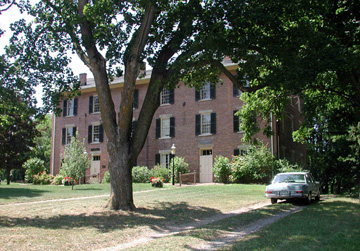

Antique Wireless Association (AWA) Electronic Communication Museum in Bloomfield, New York (August 11, 2007 / 1345 [UTC -4]) with my 1966 Mercedes-Benz Type 250S in the driveway. This was the first day I volunteered as a guide at the AWA Museum.
In 2007, I was doing a "leisurely" restoration on a 1958-1959 Grundig 2066 PX radio and e-mailed the AWA Museum curator, Ed Gable (K2MP) who said I could test some vacuum tubes at their facility. I live nearby, so on Saturday July 28, I paid them a visit, and one of the docents, Roy (W2IT [formerly W3RLW]) explained how to use the tube tester. Since I was already an AWA member, it was suggested I visit the Annex (about three miles from the Museum) to meet some other members, and perhaps even work on my radio. I took the advice, and on Tuesday August 7, 2007, took the day off, and dropped in on the legendary Annex for the first time.
Every Tuesday there is a "gathering of the faithful" at the Annex where AWA members perform various activities and do a bit of socializing. Initially, I received some technical advice about my Grundig "2066 PX", and then a group of us went out for lunch. I was also asked to staff the AWA Museum on Saturday August 11 from 2:00 - 4:00 p.m. Of course, I gladly accepted the invitation. I also accepted the offer to staff the Museum on Thursday August 23, 2007 from 7:00 - 9:00 p.m. during the upcoming annual AWA Conference "open house."
During my first shift as an AWA Electronic Communication Museum docent, I was teamed-up with AWA veteran, Ron (W2FUI) who made it an informative experience. The scope and depth of vintage radio knowledge in the AWA is truly amazing. Anyway, we had approximately 15 visitors, ranging from about 10 years old, up to about 70+ years of age. I shared some of my knowledge of early radio history with them, and they taught me a few things too.
For the remainder of the "official" 2007 season, I volunteered two more times at the Museum. Once for the AWA Conference "open house" on Thursday, August 23 (7:00 - 9:00 p.m.) and again on the last day the Museum was open for the season. Sunday, September 30 (2:00 - 5:00 p.m.) was the last day, and a visitor took a photo of me behind the counter of the replica 1925 Gernsback radio store. The visitor was Frankie James. I remember him because I scribbled some notes on the back of his business card. He said he used to have a Lafayette CB radio, and he tested some tubes in the AWA tube tester during his visit. I also gave him a quick ride in my 1957 Mercedes-Benz Type 190 sedan, which I sold in 2016 after 27 years of ownership. It had a Blaupunkt "Frankfurt" AM/FM/LW tube radio.
Sunday November 11, 2007: I gave private tour to approximately 20 members of the "Western New York Chapter of the Wooden Canoe Heritage Association" (2:30 - 3:30 p.m.). Although the official AWA Museum season was over, I conducted another private tour (to about 20 members of one family) on the Friday after Thanksgiving, November 23, 2007 (11:00 a.m. - 12:00 p.m.).
In the summer of 2008, I organized the donation of amateur radio equipment from the Eastman Kodak Company to the Antique Wireless Association. The contents of the Kodak Amateur Radio Club rooms in Building 28 (Kodak Park) and at Kodak Office included many vintage radios, including, but not limited to:
Astro model 103 xcvr, Astro antenna tuner, Yaesu FT-101ZD xcvr, Robot 80A camera, Robot slow scan monitor, Kenwood TM-2550 xcvr, Mirage B108 RF amplifier, Yaesu G5400 AZ-EL rotor, Bird wattmeter, Ten-Tec Corsair 561, General Radio 1650A Z bridge, Ham IV rotor NIB, ICOM 251A xcvr, Swan WM-2000, Tek 465, 466, 2465 series oscilloscopes – Qty 7 as new, 12 – 4 drawer file cabinets, 7 office chairs, Drake R4B, Drake T4XB with AC-4, Drake MN-2000, Viking Matchbox 250 watt, EV638 microphones, Heath SB-630, Heath SB-401, Heath SB-220, Heath SB-303, HAL ST-6, Cush-Craft A-4S tri-band yagi NIB, etc.
September 17, 2020 (10:51 a.m.): Volunteered as an AWA Museum guide (a.k.a. docent, historian) for the first time since 20-aug-2011. Here's a photo of me behind the counter of the replica 1925 Gernsback radio store. Photo courtesy Mike Migliaccio (N3HLM).
2008 AWA Museum Guide and Volunteer Schedule. See: Events
2009 AWA Museum Guide and Volunteer Schedule. See: Events
2010 AWA Museum Guide and Volunteer Schedule. See: Events
2011 AWA Museum Guide and Volunteer Schedule. See: Events
2020 AWA Museum Guide and Volunteer Schedule. See: Events

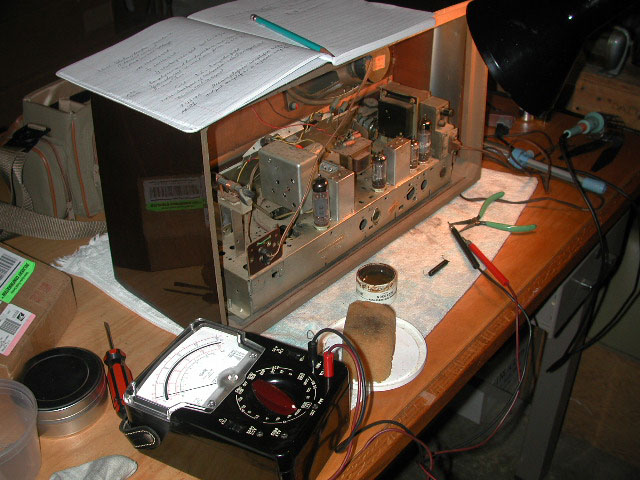

Here is my radio repair workbench (November 2004) with a 1961 Grundig "2440U" AM/FM/SW radio in the process of having a bad power resistor and two paper capacitors replaced. I rescued this radio at the Kutztown, Pennsylvania vintage radio swap meet on September 18, 2004. View the Grundig 2440U Restoration for more information. I also made a minor repair last week (November 2004) to my Grundig "Satellit International 400" but the "2440U" was the first antique tube radio I opened up down here. It was satisfying to find the problems and be able to repair them.
The Bakelite volt-ohm-milliameter (VOM) in the foreground is a Triplett model "630 APL" with input impedance of 20,000 Ω per Vdc and 5,000 Ω per Vac. A beautiful classic in its own right, the Triplett 630 milliameter takes a D cell and a 30V Eveready Type 413 cell. The 30V cell is also known as a NEDA 210, and looks like an oversized 9 volt transistor radio battery. The Triplett Model 630 analog multimeter was in continuous production for over a half century, but it may not be the best choice for working on vacuum tube radios. With the low input impedance of 20,000 Ω per Vdc and 5,000 Ω per Vac it may act as a voltage divider and load the circuit under test and throw off the measurement. A better choice for vintage radio work might be a vacuum tube volt meter (VTVM). The input impedance on a typical VTVM is around 10 M Ω per volt, and thus less likely to load the test circuit. Popular VTVM models were made by Heathkit, Eico, RCA, and Hewlett-Packard. See Equipment for more information.
In late 2005, I got a Sears Craftsman "82139" DMM (digital multimeter) to check the values of the paper capacitors in a Grundig tube radio. An added benefit was that it also had a much higher input impedance than the Triplett VOM. The input impedance on the Craftsman "82139" meter was 7.5 M Ω per Vdc and Vac, so it made a much better tool to use with vacuum tube radios. Cost was about $25 in 2006. It takes two AA cells.
In November 2004, I was able to get an HP "606A" signal generator (USA Army surplus) for $25 plus freight (another $13). It needed a little work to get the switches and dials working smoothly. I was unable to verify and measure the HP 606A until October 29, 2006 when I got a B&K (B+K) Precision Model 1460 oscilloscope. The circa 1970 model 1460 scope has a 10 MHz frequency response (bandwidth). I have the original Instruction Manual for the B&K 1460 oscilloscope (also shown here in .pdf form).
I found a Stancor model "GIS-1000" isolation transformer (1000VA / 8 Amps out) for $25, and a Powerstat 10A variable transformer (Variac style). The variable transformer is powerful enough to drive the 8A Stancor isolation transformer.

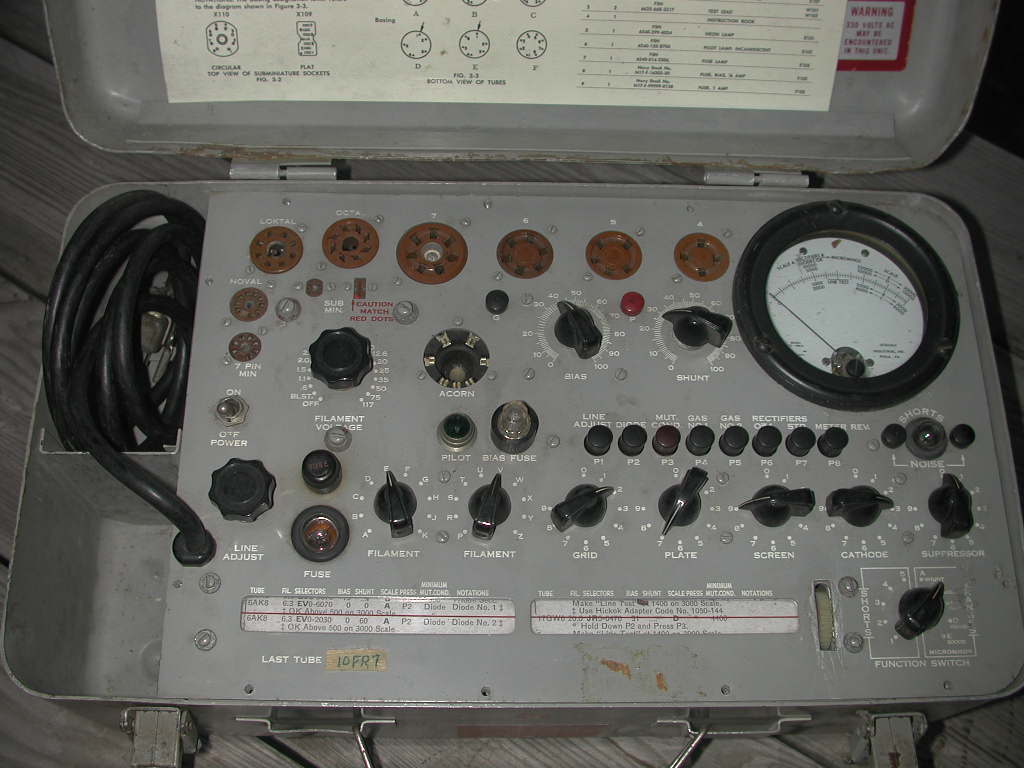

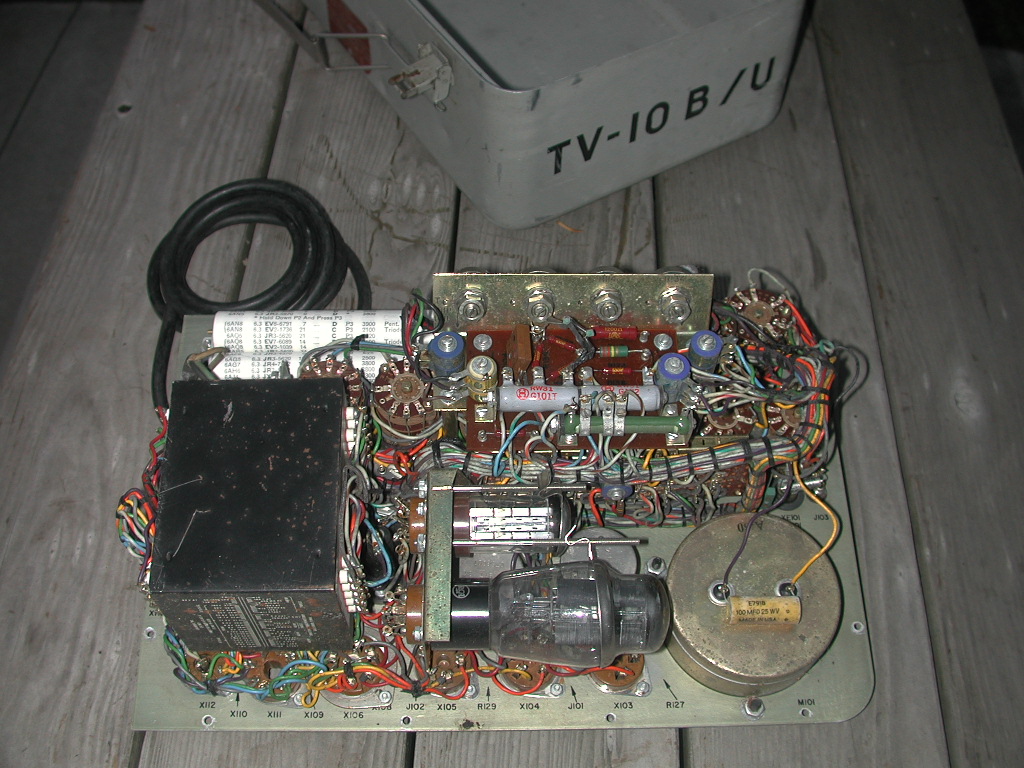

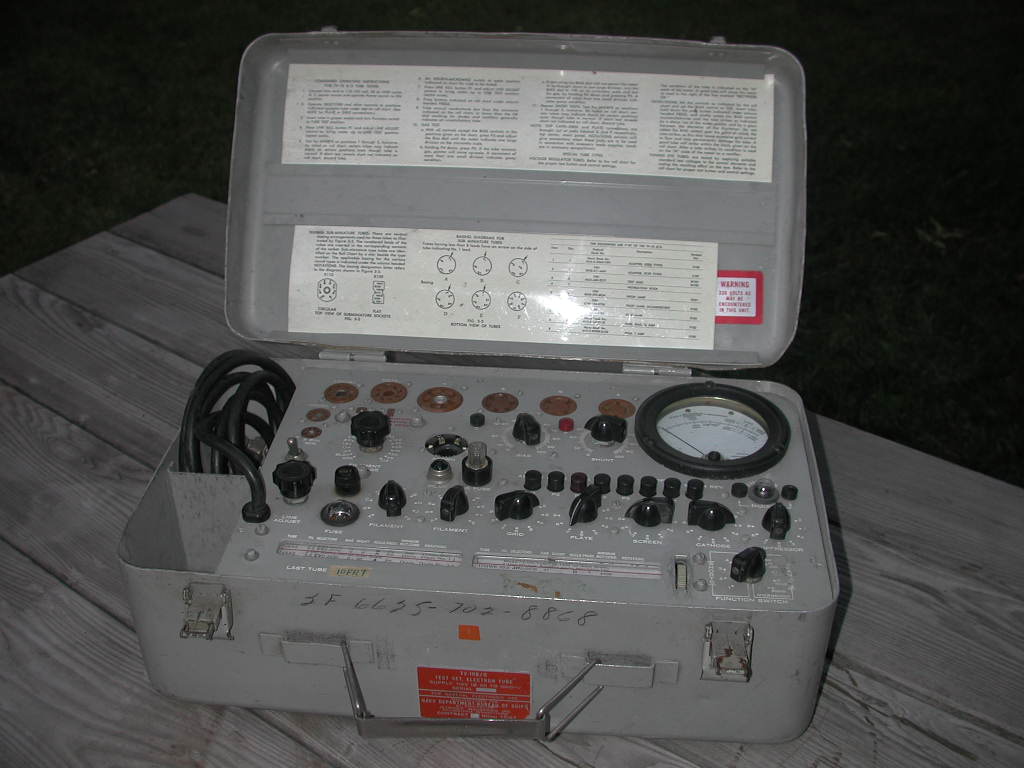

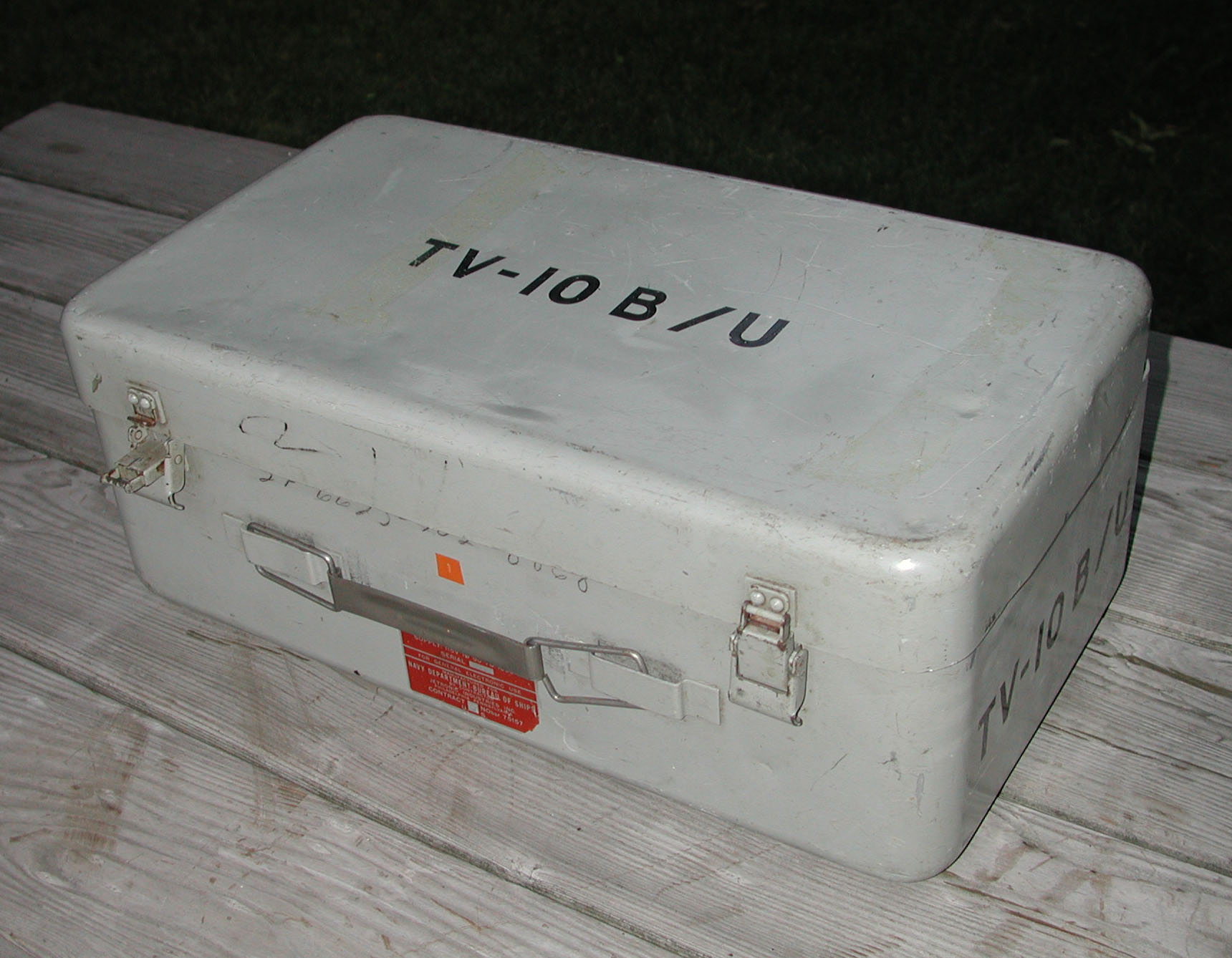

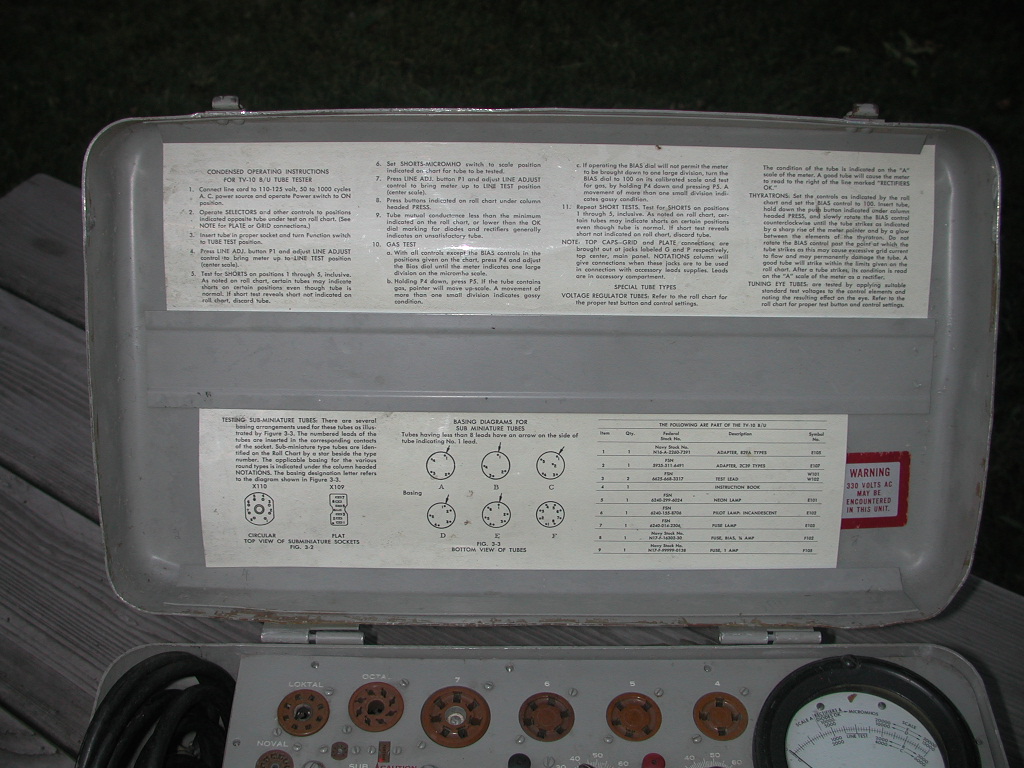

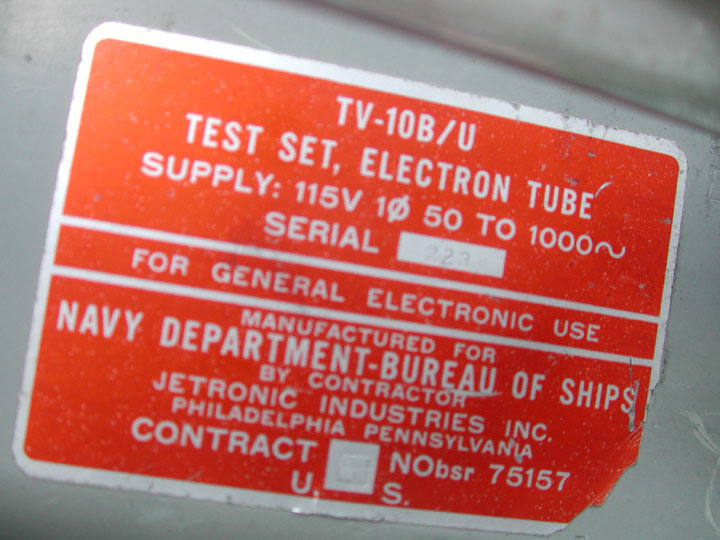

In October 2005, Bill (WA2LVP) gave me an untested Hickok model "TV-10B/U" tube tester (USA Navy surplus). It was missing the bias fuse and fuse cover. Nothing else was known of its condition at the time.
July 12, 2011: Located a replacement neon bias fuse and cover (courtesy: Roy W2IT). I inserted the new neon fuse, and found another bad fuse (1.5 A), but fortunately had some spares (same value). Also had to replace the Type 81 bulb (also used as a fuse). Bought several of the Type 81 lamps from Antique Electronic Supply (AES) for $1.50 each.
When I turned the unit on, and tried to "adjust the line", the Type 81 bulb (acts a fuse) started to burn bright; like it might blow, but the meter never moved at all. I was also pressing the Line Adjust button at the same time.
I lifted the faceplate out of the unit (the screws were all missing, which might have been a bad sign that someone thought it was not worth putting back together) and the underside of the unit looked clean and complete with two big tubes. I did not look closely at them. Was not sure how many there were supposed to be. Had not located a schematic for it yet. More information on the TV-10B/U tube tester will be posted here as it becomes available.

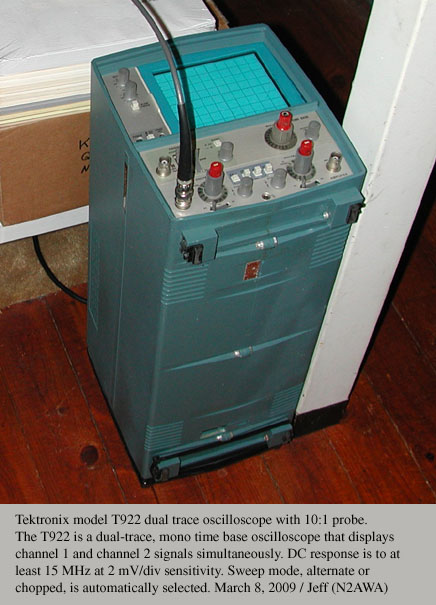

March 3, 2009: Traded a Kenwood model PS30 power supply for a Tektronix model T922 dual trace oscilloscope. This scope has a 15 MHz bandwidth and is used in the ham shack to monitor the Viking "Valiant" AM transmitter output waveform.

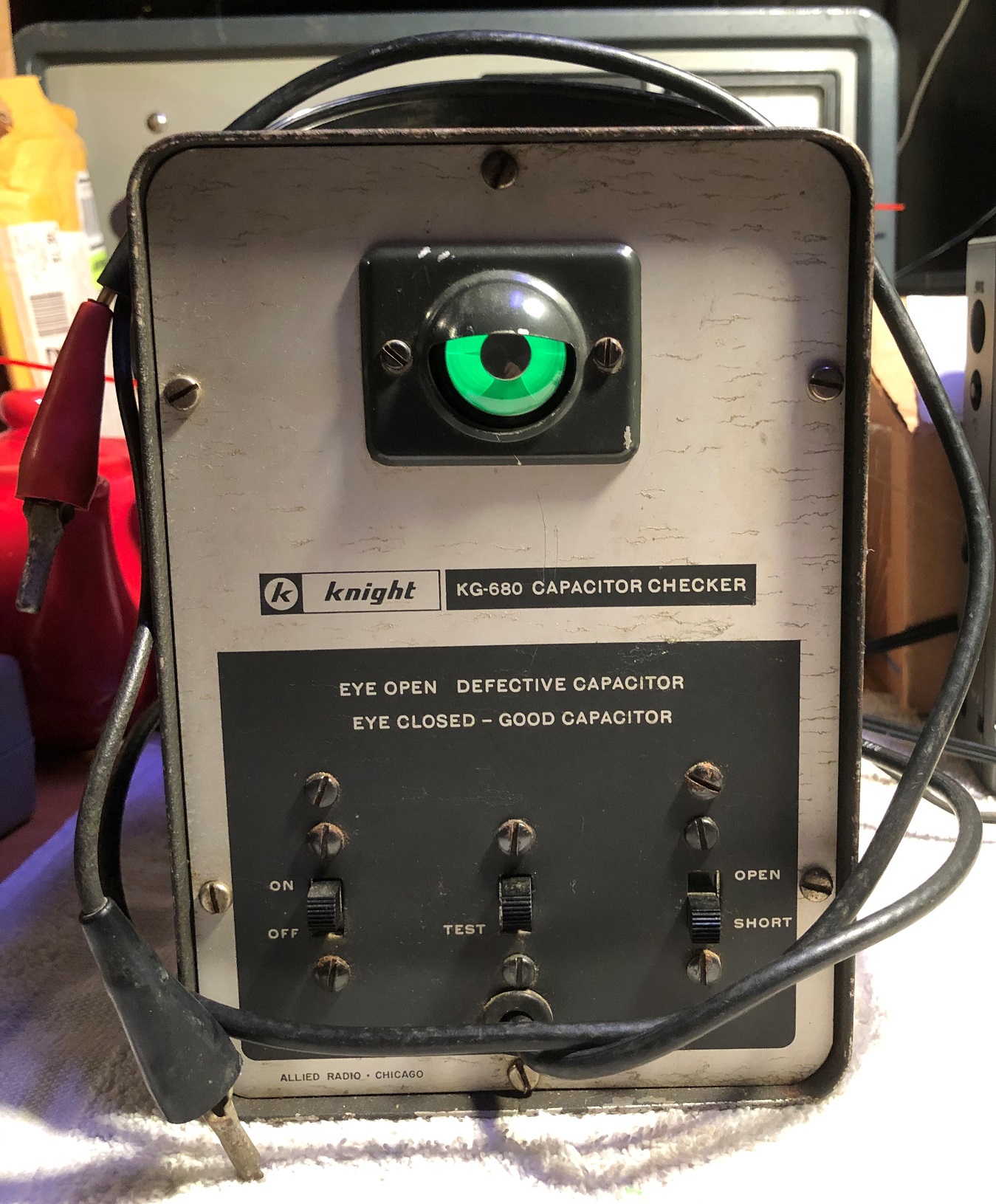

May 20, 2011: Found a Knight "KG-680" capacitor checker in good condition at an antique store in Phelps, NY for $5.00 (originally sold for $14.95). It only needed some cleaning. Has a 6E5 magic eye tube (made for Knight by RCA). Tested the KG-680 on June 11, 2011, and it worked fine. Like Heathkit, the Knight company primarily sold kits. For a few more bucks, you could buy the assembled set, but where's the fun in that? Here is a period advertisement for the Knight "KG-680" capacitor checker (PDF).
July 12, 2011: Purchased a number of things from Karl Horst (British Columbia, Canada). He found this page in October 2010, and asked if I would be interested in them. I thought about it for a while, and on July 11, 2011 – struck a deal.

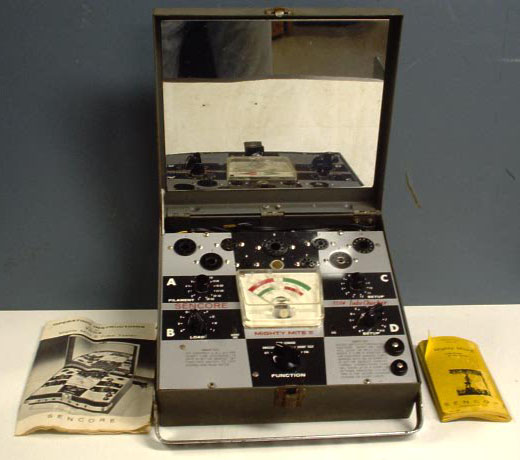

- Sencore "Mighty Mite II" (TC114) tube tester
- Bulk shipment (160+) miniature European vacuum tubes

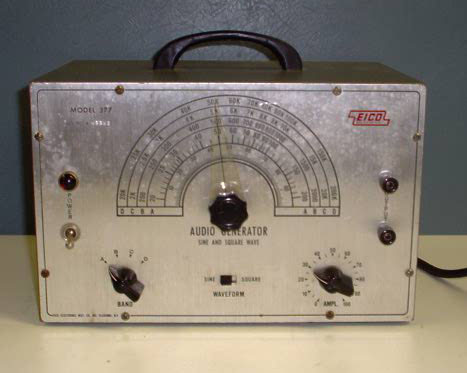

- Eico model "377" audio signal generator
- 12 ceramic replacement 9 pin tube sockets
See the Equipment page for details on the workshop and test equipment.
This 1959 Zenith B511-B is a small tube radio, with a plastic body, that has been in my family since new. It receives AM broadcast only. It was first used in the kitchen, and finally in the basement of our family home from the early 1960s up until about 1980. I always considered it to be just an old, uninteresting radio, but somehow managed to take ownership of it around 1980. With the passage of time, it finally began to look like a classic. It still works well, without any restoration work – as of 5/3/22. Note the patina (a.k.a. wear) around the volume control knob beneath the tuning dial. An authentic, unrestored survivor!
Received this radio as a Christmas gift in 1976. Here is a Polaroid (model SX-70) snapshot of myself that Christmas morning (aged 16 years) fiddling with the tuning dial. I got quite a bit of use out of this radio and cassette player through the late 1980s. I brought it on vacations, and it also made it through five moves. I remember carrying it along the beach on Cape Cod, Massachusetts in 1977.
It has a black plastic body with a brushed aluminum handle and trim. Telescoping and rotating antenna. The knobs for tuning (vertical slide-rule tuning dial), volume, tone-control are all located on the right side of the unit. The cassette deck is on the front. The combination switch for Record / Play / Stop / Fast-Forward / Rewind is located on the top of the radio. Has a jack for an external microphone on the left side. AC/DC power.
Between 1992 and 2005 the radio was stored in the attic. When I was writing this article, I went up to take a closer look and noticed that General Electric did not give it a model designation. On the front is printed, "FM / AM Radio Cassette - Automatic Level Control." Also, "Three-Way Power" and, "IC." The "IC" may be the closest thing to a model designator since it is printed in a bold font. This was my only portable radio between 1976 and when it was put into semi-retirement around 1989. When I retrieved it from the attic in 2005 and plugged it into the AC mains, it still worked, but the controls were a bit scratchy. I applied some contact cleaner and lubricant to the switches and it sounded like it did 29 years earlier. In other words, not the best radio in the world, but not the worst either.

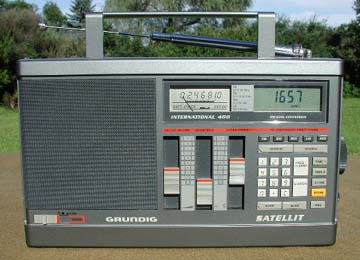

Grundig (West Germany) "Satellit International 400"
LW/AM/SW: 148 kHz - 30 MHz
FM: 87.5 MHz - 108 MHz
I bought the Grundig "Satellit International 400" dual conversion radio (made in Portugal 1986-1989) on May 22, 1989 from Rowe Photographic in Rochester, NY. The price was $399 (plus tax), which was (and still is) a lot of money for a radio. The Satellit 400 may have been one of the first radios designed for the public to feature digital PLL tuning, and a digital frequency counter. Less expensive radios did not begin to include these features for another 10 years or more (if ever). Digital tuning readout is nice because the desired frequency is simply entered with the keypad. One negative thing about the digital readout is that the operator tends to loose the sense of where they are within the band spectrum. The old-fashioned "slide rule" tuning dials allow the listener to "see" where they are in the band. The Satellit International 400 also has a frequency scan mode and a thumbwheel tuner on the right side. The radio is surprisingly heavy (about 5 lbs.) for its size. Note that the Satellit "Professional 400" (not made for export) only covered up to 26.1 MHz.

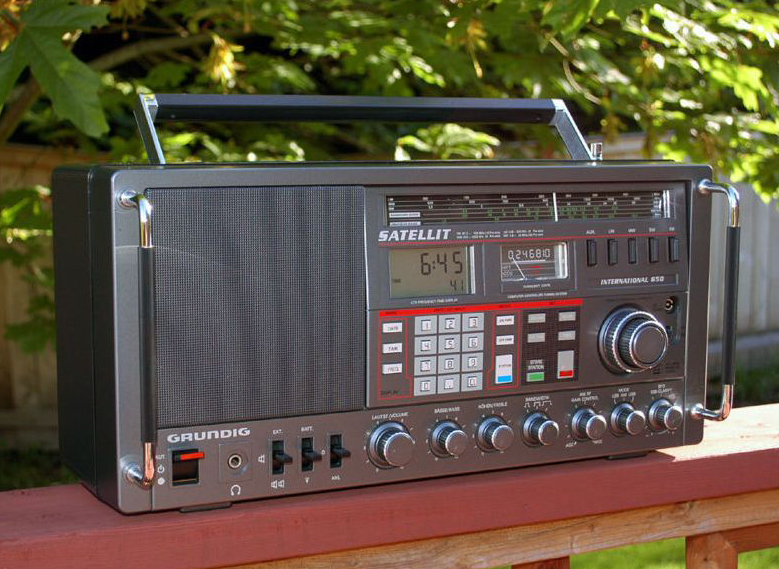

In 1989, the top of the Grundig line was the "Satellit 650", which seemed to be more radio than I was looking for at the time. Search the internet for photos, and you will see that the Satellit 650 is about three times the size of the Satellit 400. I have been quite pleased with the Satellit International 400, and it still gets a fair amount of use.
Dual Conversion: A type of receiver that converts the incoming frequency through two intermediate stages. This offers higher gain and tends to eliminate the type of interference known as "image." With high-precision components, it also allows the receiver to be much more precise (selective) in selecting the incoming channel it accepts. This is what helps the receiver to be very narrow-band. Also known as a "Double Superheterodyne" receiver.
20-apr-2005: I replaced the antenna. The antenna fits the Satellit 400, 500, 700 models from 1986-1996. I purchased a new antenna from German eBay (ebay.de). Price was €28 EUR plus €10 EUR for shipping. The total (€38 EUR) converted to just less than $50 USD. Bought from "Norbert" (postine ]at[ gmx.de). The www.ebay.de.com description was: "Teleskopantenne Grundig Satellit 400,500,700.
- This link shows the various Satellit antennas. It says the Satellit 400 takes "Type F" antenna.
Here is a backup copy (PDF) of the same Grundig Satellit antenna information – in case the original link is ever removed.

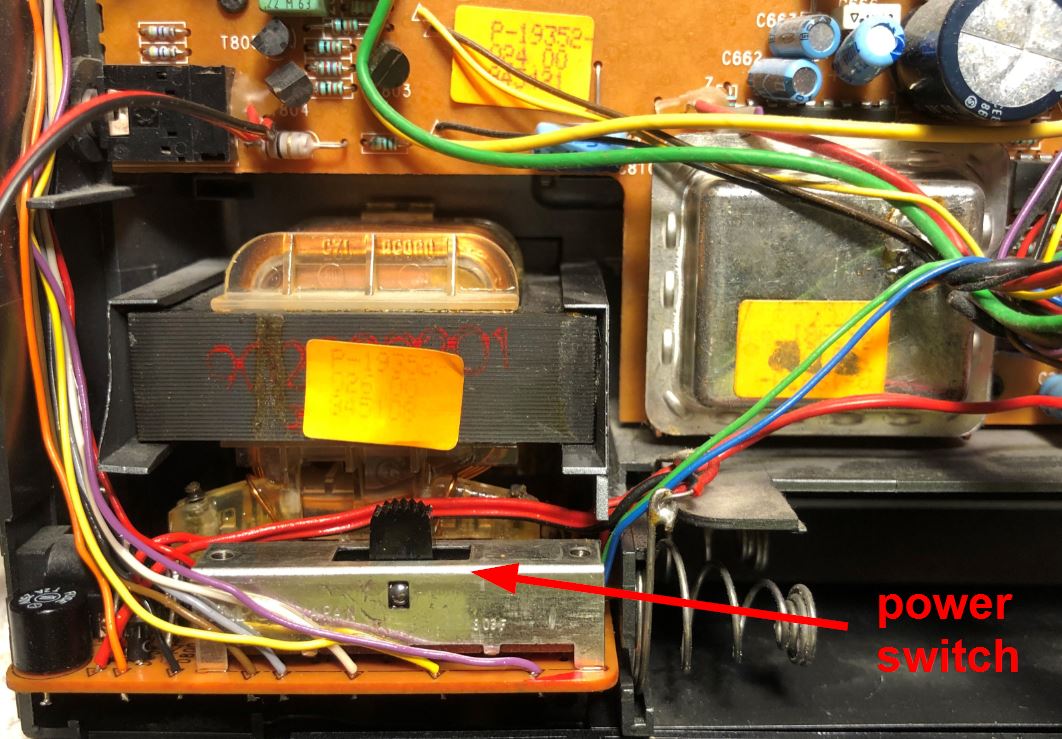

18-apr-2006: External antenna connection: The external antenna jack for the Satellit International 400 is a "PAL" (also known as: "KOK") type connector. It is commonly used for TV antenna connections in Europe but is unusual in North America. Radio Shack sells a PAL to F adapter. PAL connectors can be purchased on eBay (plastic body) or from MCM Electronics (metal body) for those who want to make their own antenna cables. Universal Radio sells a nice adapter consisting of a in-line SO-239 (female) connector and female PAL (KOK) connector joined with 10 inches of coaxial cable. This permits using the common PL-259 (male) connector and the short length of cable takes the strain off the antenna jack. Universal Radio part number: 1052. Universal Radio is selling the part as an accessory to the Eton E1 radio (originally announced as the Grundig Satellit 900). I ordered the antenna connection cable with PAL connector (European specification) from Universal Radio on 18-aug-2006. Price was $7.95 plus shipping. Received: 21-aug-2006.
23-aug-2006: Posted a review of the Grundig "Satellit International 400" on eHam.net: www.eham.net/reviews/detail/6082
31-aug-2008: Replacement 3 AA cell battery holder (due to mild, greenish-blue corrosion - again).
Mouser (www.mouser.com) part number: 12BH331-GR ($1.06 each).
Electronix (www.electronix.com) part number: 34-250-3 ($0.39 each, but they required a $10.00 minimum order).
Remember when changing the three AA clock and station memory batteries, leave the AC power plugged in. Otherwise, the station memory and clock times will be lost.

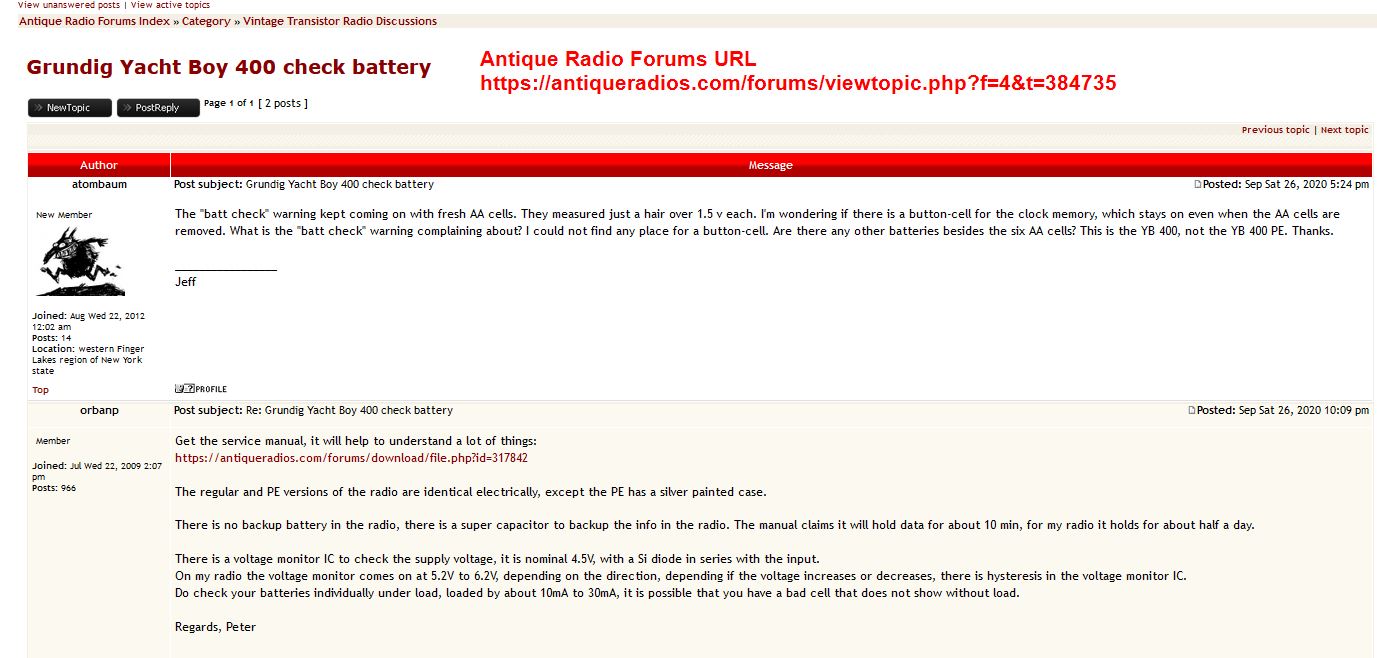

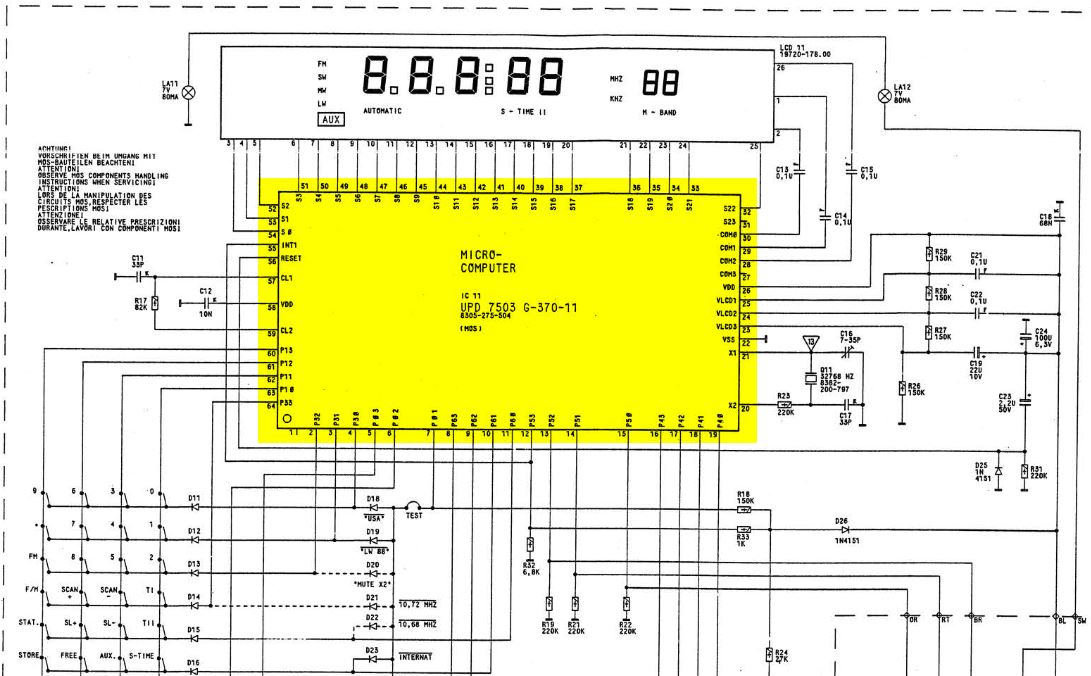

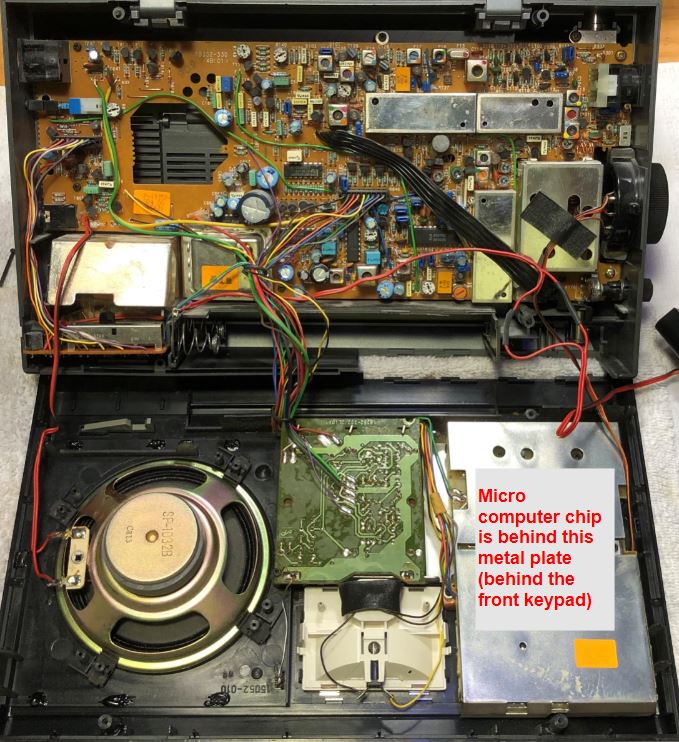

27-sep-2020: Checked if the batteries were still good (annual ritual), and discovered the radio would not work on AC or DC. The batteries tested fine. Opened it up, and tried using DeoxIT on the power switch to no avail. Verified the two glass fuses (accessible from the bottom of the set) fuse 1: T 630 mA , fuse 2: T 80 mA (T = time delay, slow acting). Generally verified all other controls were in their correct operating positions. Tim (WB2PAY) graciously took a look at it in his shop, and we removed the power supply board, and verified the power switch was working (measured voltages), and we thought the problem was either with the micro computer (IC 11 / UPD 7503 G-370-11 / 6305-275-504) behind the keyboard input switches, or the voltages being sent to it, but we did not venture into those waters. Put it back together, and set it back on the shelf until another idea or solution presents itself. The next step may be to remove the metal cover plate from the keypad area to check for corrosion or oxidation, which is preventing the radio from turning on. There are small metal clips that need to be pried (bent) back to remove the cover. Still can't accept that this Grundig Satellit is kaput! Let me know if you have suggestions, or experience in troubleshooting this problem.

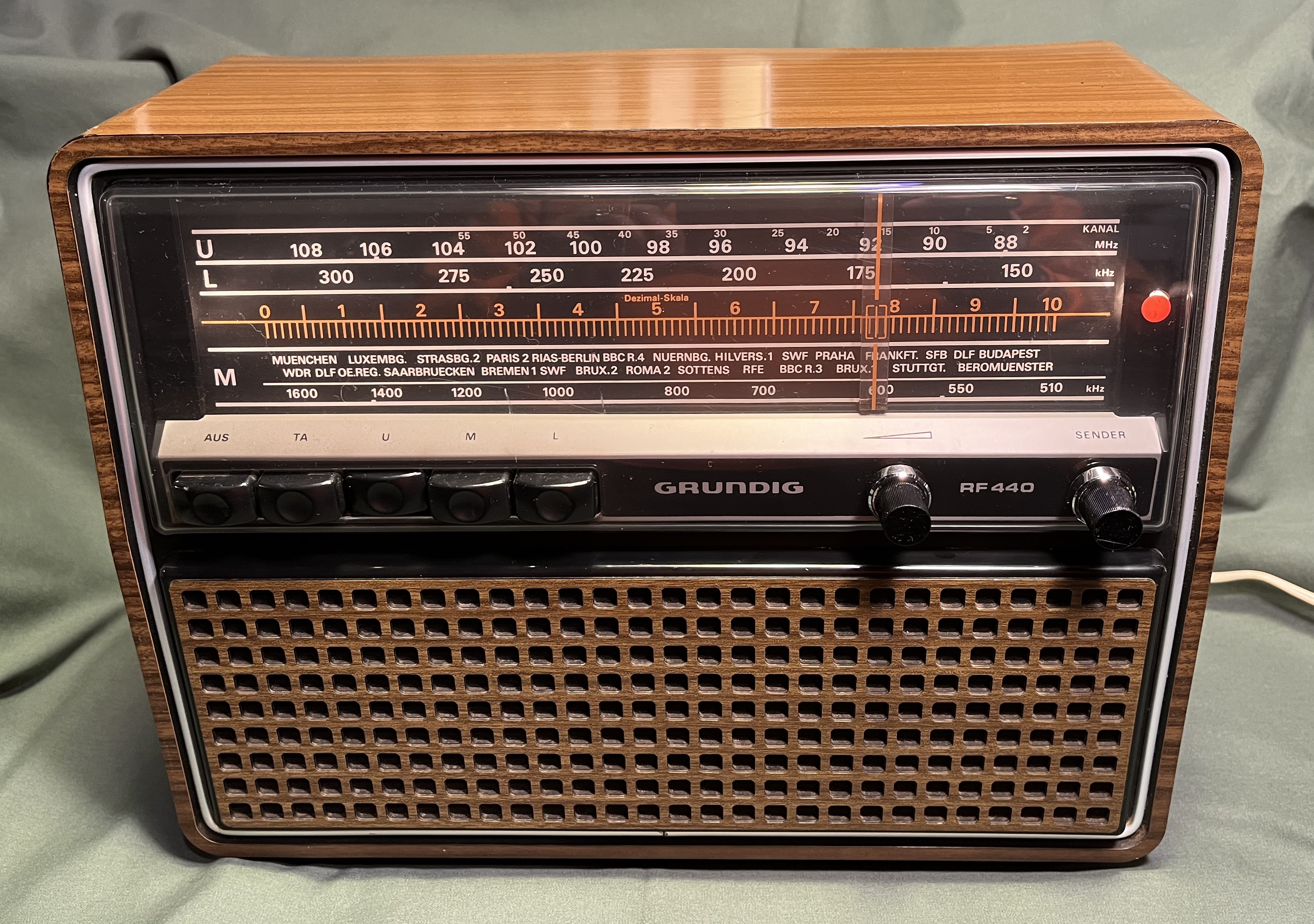

Push-buttons labeled: U U M M L
|U (Ultra Kurz Welle = UKW = FM)||87-100 MHz|
|M (Mittel Welle = MW = AM)||550-1500 kHz|
|L (Lange Welle = LW = Long Wave)||150-290 kHz|
Blaupunkt "Frankfurt" AM/FM/LW automobile radio. This is the original vacuum tube radio installed in my 1957 Mercedes-Benz Type 190 sedan. The escutcheon is made of Bakelite. The radio was refurbished in 2011, and works well. Keeping it tuned on one station while driving a 50+ year old vehicle is not as difficult as one might imagine. View the Mercedes-Benz Ponton Radio page.
Panasonic "RF 680 D"
The Panasonic RF 680 D is a portable AC/DC AM/FM transistor radio, but I do not have the AC transformer for it. DC power comes from (4) 1.5V AA batteries. This compact radio was left behind when one of my wife's co-workers at the University of Rochester retired, circa 1999. I would guess the radio dates from the early 1970s. It works well, but the AM-FM selector switch on the back of the set can be tricky to select one band or the other. The correct placement of the switch is actually somewhere between the two settings, so I have to play around with it. What it boils down to is that the switch contacts are probably due for a cleaning. The red push button on the speaker grille is for dial illumination. This radio is quite good for AM DX-ing (long distance listening) with clear reception and little background noise.

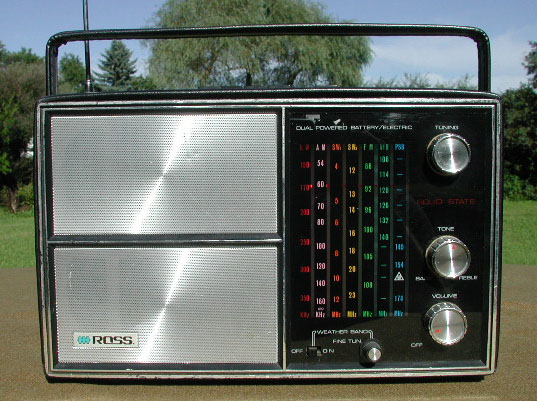

Ross model 2776 (multi-band, circa 1970s). Black vinyl case, AC/DC, great condition with just a small dent on the metal speaker grille. I bought this from a co-worker (Mark Mazza) around 1999 for $20. It needed a new antenna (he was using a metal coat hanger), and a knob insert, which I found on a similar model at a garage sale. The FM band reception worked well, but the AM reception was quite poor.
Grundig (West Germany) "Mini World 100 PE"
AM = 530 kHz - 1710 kHz (broadcast)
FM = 88 MHz - 108 MHz (broadcast)
SW1 = 49m (5950 to 6250 kHz broadcast)
SW2 = 41m (7100 to 7300 kHz broadcast)
SW3 = 31m (9500 to 9900 kHz broadcast)
SW4 = 25m (11650 to 11975 kHz broadcast)
SW5 = 19m (15100 to 15600 kHz broadcast)
SW6 = 16m (17550 to 17900 kHz broadcast)
I bought the Grundig "Mini World 100 PE" world-band radio on December 21, 2001 at Staples office supply store on Jefferson Road for $29.95 (plus tax). Its primary use was to replace the Becker "Europa" (AM/FM stereo cassette) in my 1982 Mercedes-Benz 240D while it was being exchanged for a rebuilt unit from Becker of North America. This Chinese-made Grundig is nice for the size and price, with decent sensitivity. It picks up distant and/or low power stations fairly well with the antenna fully raised and pointed in the right direction. However; there can be ghost images of strong signals at various locations in the FM band. It has acceptable sound quality considering its small size. It fits nicely into a pocket or briefcase, and for this reason, I bring it with me when I travel. It has FM stereo when used in conjunction with stereo ear buds (included). It features a five element telescopic antenna measuring 370 mm (14.57 inches). It has an LED tuning indicator for stereo signals, a removable belt clip, and a soft black leatherette carrying pouch. The tuner is the slide-rule type, not digital. Powered by two AA batteries (included). The package also included a useful shortwave listener's guide. Overall, the Grundig "Mini World 100 PE" is a handsome, miniature radio that performs reasonably well considering its price and size. I can not objectively comment on its durability, because I tend to be careful with my radios.

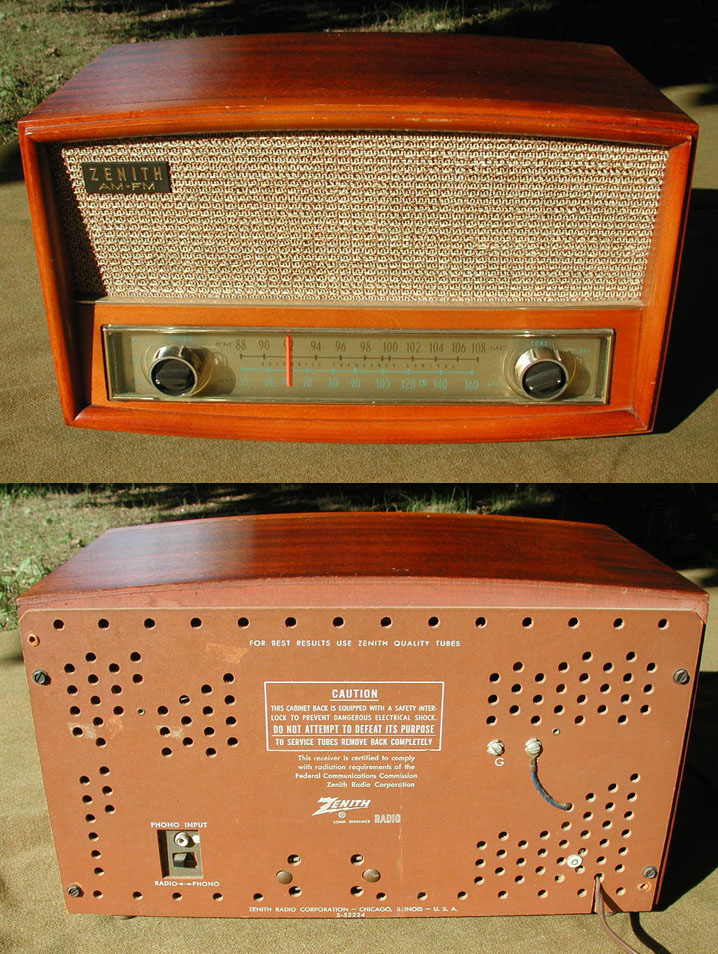

This Zenith G730 AM/FM tube radio was performing in the summer sunshine outside an antique barn near Lake George, NY on August 6, 2003. The place was Lonergan's Red Barn Antiques on Route 9N, three miles south of Ticonderoga, New York. I think he was asking $70, but I got it for $50. It was in real nice condition in and out. Only needed a little elbow grease on the wood cabinet to bring it up to snuff.
The G730 was the first vintage tube radio that I "consciously" added to the collection; the previous two were "inherited" (the Zenith "B511-B" was in the family since new, and the Blaupunkt "Frankfurt" came with the 1957 Mercedes-Benz Type 190 Ponton sedan). Once it was home, it seemed like a good value, so I began to look at other old radios.
After buying the G730, I have noticed quite a few of them. On September 20, 2006 in Philadelphia, "The Book Trader" (7 N 2nd Street) had one playing classical music amongst all the books and clutter. They also show up in radio flea markets occasionally. There are wide variations in the cabinet finish. Most of the other examples I have seen are dark brown.
On Saturday March 24, 2012 our cat somehow managed to knock the G730 off the dresser. Cosmetically, it was unscathed, but the FM band stopped working. Turned out, the tuning rod got knocked out of the core. Left it at Radio Daze on Tuesday March 27 and got it back Thursday March 29, 2012. The cost was a half hour of labor.
Grundig "2066 PX"
Valve (tube) line up: ECC85, ECH81, EF89, EABC80, EL84, EM84
The EM84 tube is the "Magic Eye" (signal strength indicator) on this set
Tuning dial pilot lamp (one required) is Type 40, 6.3 V, 150 mA (0.15A) miniature screw base, cylindrical bulb, clear glass. The pilot lamps are typically sold in packages of 10 at vintage radio swap meets and by the usual online sources (see Links).
I purchased the "2066 PX" on August 18, 2004 at the AWA Conference swap meet in Rochester, NY. It was working, but had some static noises, and low volume. The seller (Phil Clayton of Syracuse, NY) was asking $125, but after getting familiar with the details, and plugging it into an outlet in an empty conference room, I offered him $75 and he accepted. It was quite dusty inside but completely functional. The volume dial was almost impossible to turn, but applying some light oil on the volume potentiometer shaft freed it up. I cleaned it up inside and out, and it looked great. The performance was not quite up to original specification, but I replaced some capacitors and it sounded a little bit better.
Note that "PX" stood for Post Exchange (store) in the U.S. military. Some Grundig radios were sold in the PX (for U.S. Army personnel). The items sold through the exchange could be identified with the model number followed by the PX suffix.
Grundig "2066 PX"
- Grundig 2066 PX schematic (.pdf file / German)
- Sams Photofact packages are not available for the Grundig 2066 PX (per Dave Cantelon of Just Radios / 14-aug-2005
- Grundig 2066 PX schematic (.jpg file / with English translations) courtesy: Hans M. Knoll / 06-sep-2005
- Detail of the layout drawing portion of the schematic
- Refer to the Glossary for notes on reading German schematics
I was not able to pick up any SW stations until I plugged a long (almost 2 meters) length of #18 AWG wire fitted with a 4 mm "banana plug" into the single external antenna jack on the back of the set. Note that the two FM antenna (8 Ω style) jacks, the single external antenna jack and the single ground jack are all 4 mm Ø (diameter) (close to a #8 screw size in the USA). The banana plugs were a perfect fit for the external (SW) antenna jack. I began restoring the radio in September 2005 and it took until August 2007 to get it back to its former glory.
Years manufactured: 1955-1956
Valve (tube) line up: EC92, ECH81, EF89, EABC80, EL84, EM85
Grundig Majestic 7061W/3D Magic Eye tuning tube = EM85
Tuning dial pilot lamp (one required) is Type 40, 6.3 V, 150 mA (0.15A) miniature screw base, cylindrical bulb, clear glass
The pilot lamps are typically sold in packages of 10 at vintage radio swap meets and by the usual online sources (see Links).
Broadcast (AM): 510 - 1620 kHz
Shortwave: 5.9 - 16 MHz
Frequency Modulated (FM): 88 - 108 MHz
Price: 595 DM (German Deutsche Marks)
Weight: 30 kg / 1058.2 oz (~66 lbs)
Width: 24.62" Depth: 15.75" Height: 32.375"
Grundig 7061W/3D schematic
Refer to the Glossary for notes on reading German schematics
This Grundig console was also at the AWA swap meet on August 18, 2004 and was going for $100. I paid full price because I thought it was in both good cosmetic and working condition. I had seen console sets like this on eBay, but never thought I would actually own one. Well, now I do. It sounds really nice. I just need to find some old polka records to play on the turntable! It was a top of the line set manufactured in West Germany for the American market. One of the key differences between radios made for German domestic duty and the ones produced for export (to markets such as the USA) is that the original European FM band (VHF or UKW for "Ultra Kurz-Welle") was from 87.5 to 100 megacycles (MHz). In the mid 1960s this was expanded to 104 MHz and then sometime in the late 1970s to early 1980s was expanded even further to the current 108 megacycles. The portion of the band between 100 and 108 was used for Police radios (the French police in particular). For this reason, I understand that in Germany (perhaps other European countries as well) it was illegal to sell FM radios that could pick up the full FM broadcast spectrum. At the same time in the USA, the FM band went from 87.5 MHz up to 108 MHz. Again, the German radios made for export included the extra cycles in the FM spectrum, radios made for domestic usage (inside Germany) did not.
The gentleman selling the Grundig 7061W/3D console radio was former McIntosh audio engineer, Richard Modafferi (K2ICO) of Vestal, NY (Richard's website is: www.audioclassics.com). Note that Vestal is near Binghampton. After I got the console home, it worked perfectly for about 24 hours before it unexpectedly quit. The tubes (including the tuning eye) and tuning face plate were lighting up, so it was getting power, but I could not tune to any stations on any band. So, I e-mailed Richard to see if he had any suggestions, but before he could respond, I cleaned and re-seated the tubes and it began to work fine again. The automobile trip home from the AWA swap meet may have caused one or more tubes to wiggle loose. Another thing that might have contributed to this anomaly is that the piano key selector switches may have been a little dirty and hence been caught in between the various bands. One time since then, I found that by pressing the piano key selector switches slowly, the circuitry can be engaged as it is supposed to be.
Richard Modafferi later replied,
"If the "magic tuning eye" tube is dark, it would appear to be a B+ power supply failure. The radio uses a selenium rectifier, which may have died. I can send you a replacement (McIntosh silicon bridge). If you are able, test for B+ voltage in the chassis. You say "tuning eye does not move", which I could interpret as, it lights, but no movement. If the eye lights green in radio mode (it goes out in phono mode), then B+ and the rectifier are OK. Try the record player. If this works, the B+ and audio are OK. Then there is RF failure. The most likely cause is a bad converter or IF tube. Do these light? The converter is ECH81, IF is EF89. Detector, EABC80, is OK if phono works. If not, then everything will not work. Check if all these tubes light and are seated correctly in their sockets. The radio worked here for about 15 years next to my workbench, although I played it not too often. Rather, I used my stereo or old mono audio system on the other end of the room. The Grundig originally belonged to my brother-in-law's father. When he died, the radio went to my sister. When they retired (circa 1985) I got the radio. A neighbor down the street had a radio shop, retired from it, but had basement full of N.O.S. stuff, including a Grundig replacement phono cartridge, which I put into the radio you now have. The radio may benefit from a full set of new tubes. The output tube you referred to earlier as 6BQ5 is the same as European EL84. 6BQ5 is the American clone for the EL84. The EABC80 has an American clone 6T8. The American clone for the EF89is 6DA6, for ECH81 it is 6AJ8. The FM converter tube is American 6AB4."
The "A" voltage is the filament voltage, "B" voltage is the plate-cathode potential and "C" voltage is the grid or "screen" voltage. The grid is what controls the flow of electrons from the cathode to the plate. If the grid is negatively biased, it can reduce the flow from the cathode to the plate. The B+ voltage is measured with all tubes in the sockets and with the radio operating, as voltages are derived from a bleeder-decoupling system. B+ voltages from this system are dependent on all tubes in the sockets and with the radio operating. If you remove a tube, the load on the system changes, and voltages on other tubes will be wrong. Typical voltages in this radio would be about +250 on plate and screen (grid) of the EL84/6BQ5 audio output tube, and lesser voltages on the others. Measure from tube electrode to ground. On the Grundig 7061W/3D console the chassis would need to be removed from cabinet to do this. On smaller table cabinets, the typical German radio has a removable plate on the bottom of the cabinet so you can make these tests without removing radio from cabinet.
The Grundig 7061W/3D is an AM/FM/SW console with a phonograph for 33, 45 and 78 RPM records. The model was made for export to the USA. It also has a New Old Stock (NOS) Grundig replacement phono cartridge. The audio is rich; with full bass and treble controls, and the SW (shortwave) frequencies are easy to pick up.
Cleaning and polishing the wood cabinet of the Grundig Majestic 7061W/3D
When I first got the Grundig 7061W/3D console home, I cleaned and detailed the exterior as best I could. It was looking real sharp. However, after looking at the cabinet for several more days, I decided it needed to be cleaned and polished a little further. Note that the cabinet probably has a lacquer finish. First, to remove what may have been candle wax drippings, I applied linseed oil to loosen the debris. Then after letting it sit for five minutes, I used my fingernail to scrape those spots, which seemed to cover most of the cabinet top. I then used "rottenstone" (a powdered form of weathered and decomposed siliceous limestone used for polishing) and paraffin oil, as the cabinet top also had some fine scuffs, swirls and light scratches from what appears to be 50 years of normal usage. Unfortunately, there was also evidence of what appeared to be two cigarette burns in the wood. I first sprinkled some rottenstone powder on the top of the cabinet and then poured out a little bit of paraffin oil to go along with it. I mixed this into a slurry, and used a cotton cloth to hand rub it into the areas needing the most attention first. Once I was confident this was working, I also used a variable speed electric sander (set to the lowest speed) fitted with a buffing pad to go over the entire surface (with the slurry of rottenstone and paraffin oil) to put the finishing touch on it. Then, I wiped it all down with a clean rag and used buffer's polish to bring out the shine. The combination of the rottenstone and paraffin oil removed the small swirls and scuffs as I had hoped, but of course, the mixture did nothing for the two cigarette burns and the scratches that penetrated the lacquer surface. I bought the rottenstone, paraffin oil, buffer's polish and the Dewalt electric sander at Woodcraft in Henrietta Plaza on Jefferson Road (August 23, 2004).
Notes for Future Reference
- To remove the remaining fine scratches in the lacquer finish, another thin coat of lacquer may be needed
- Shellac may be applied and removed numerous times if desired, but polyurethane should be considered a permanent finish when it involves the cabinetry such as an old radio. Therefore, polyurethane is not recommended for use on radio cabinets.Updates
- September 9, 2005: Ordered new EM85 "magic eye" tube from tubesandmore.com / $36.70
Kutztown, Pennsylvania / September 18, 2004
The next two radios (the Realistic "Globester4", and Grundig "2440U" table-top radio) were from a Radio Acquirementologist Trek (RAT) to Kutztown, Pennsylvania on Saturday, September 18, 2004. The Kutztown Radio Show is hosted twice a year (May and September) by the Delaware Valley Historic Radio Club (DVHRC) (see Links). The unfortunate thing about the September 2004 show was that the northern remnants of Hurricane Ivan were passing through, making things extremely wet – with 35 mph winds. Fortunately, the show was under a large pavilion, but still, the winds were blowing so hard that everything (even in the center of the shelter) was getting wet. Not an ideal situation for old radios, electronics, books, ephemera, (and people). Regardless, I scored a couple bargains amidst the chaos. Made it back to Kutztown again in September 2005, 2006, and 2011, and it was much warmer and drier each time.

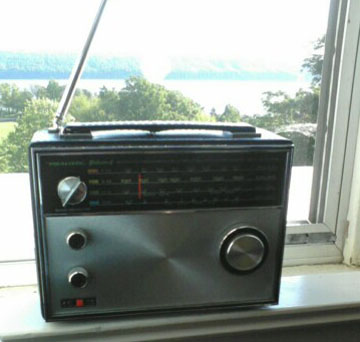

1971 Realistic (Radio Shack / Japan) "Globester 4" (also see "Astronaut 4") transistor, word band radio
Frequency Modulated (FM): 88 - 108 MHz
Broadcast (AM): 540 - 1620 kHz
Marine Band: 1.6 - 4.5 MHz
Shortwave: 4.5 - 12 MHz

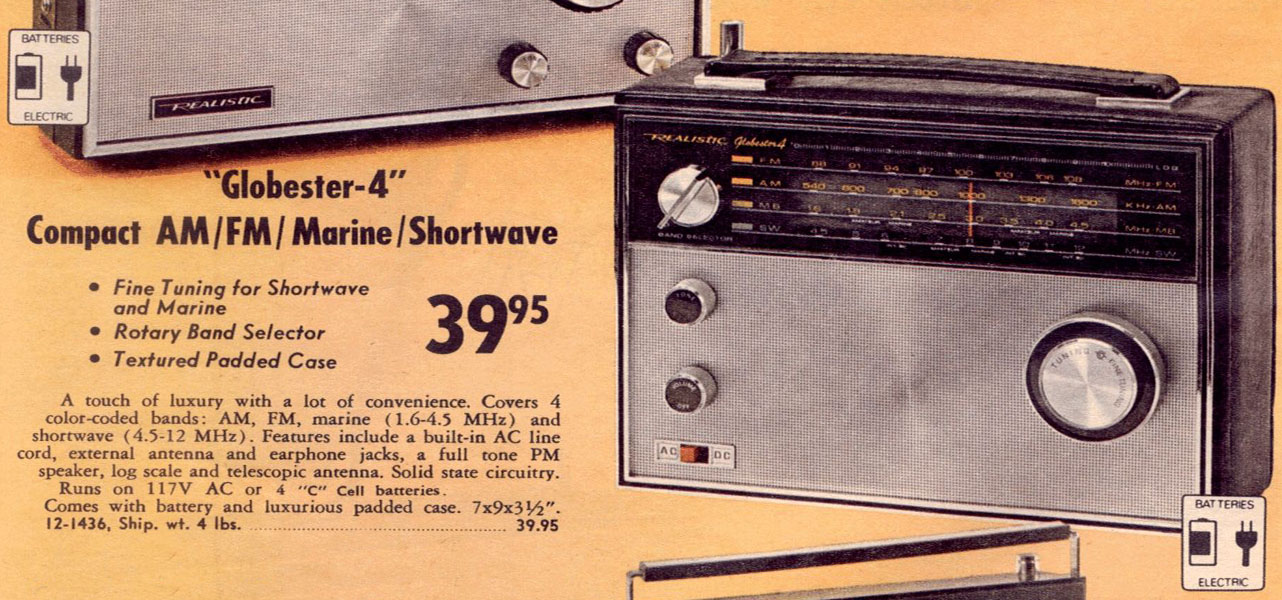

The Globester 4 appeared in the 1971 Radio Shack catalog for $39.95.

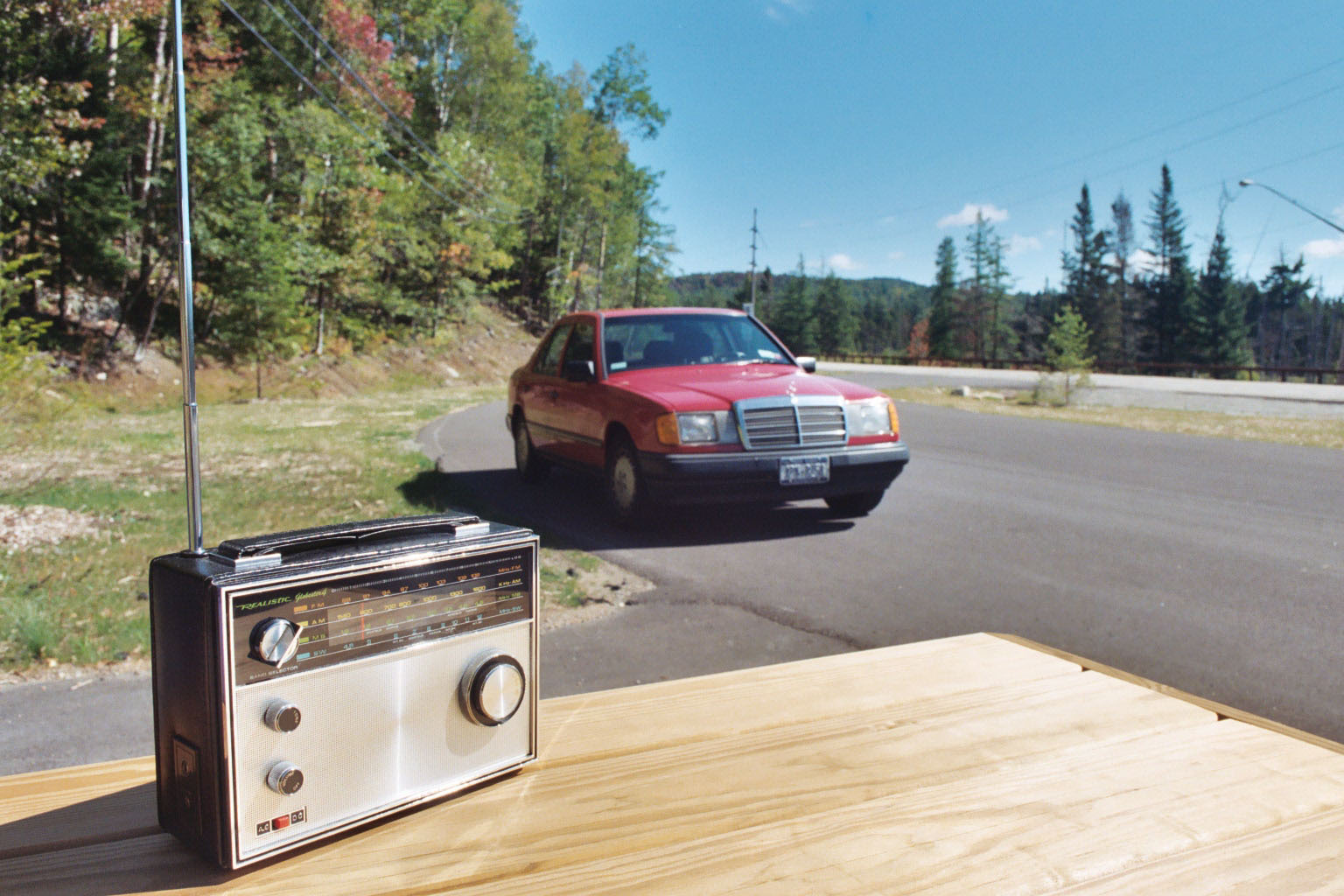

|September 16, 2008||May 16, 2010||September 12, 2011|
Near Long Lake, NY
|South Lake Room
Taughannock Farms Inn
|North Woods Inn balcony
Between Old Forge and Eagle Bay, NY
|Canon AE1-PROGRAM||LG mobile camera phone||Canon AE1-PROGRAM|
|Kodak ASA 200 film||1s and 0s||Kodak ASA 200 film|
Regardless of any preconceived notions (stereotypes) of Radio Shack's "Realistic" line of products, this portable world band radio is quite respectable. Judging from the style, I originally presumed it was made in Japan (for Radio Shack) in the early 1970s. In 2013, I found it listed in the 1971 Radio Shack catalog. It was in real nice, original condition, although I gave it a thorough detailing (cleaning) when I got back home. Unfortunately, tiny flecks of white paint on the vinyl case were impossible to remove. Sensitivity was good on all bands as it picked up distant AM and SW stations easily. I got it for the nominal fee of $15.
This robust little radio was meant to be a close personal companion, not a "boom box." It sounds great when twiddling the tuning dial to explore the bands. It does not perform as well when trying to fill a large space with sound, like when sitting by the pool, or washing the car. It fits inside a briefcase, and is ideal for travelling.
The styling is classic, early 1970s. The case is finished in black vinyl with a carry handle. It has chrome accent strips and a metal speaker grille. The tuning dial background is black with an orange slide rule indicator. The face plate tuning scale is printed in the following colors: FM = orange, AM = yellow, MB = green, SW = blue. It also has a "log scale" printed in white at the top of the face plate.
This radio has been a steadfast companion on road trips and has provided many hours of late-night shortwave DX listening pleasure. On a sad note, some of the traditional shortwave broadcast stations (BBC, Radio Netherlands, etc.) have stopped aiming their signals at North America.
April 2, 2005: Did some AM (Medium Wave) DX-ing and easily picked up Washington, D.C., Boston, New York City, Connecticut, Toronto, Philadelphia, and Chicago – all in one night! From western NY state, that was quite reasonable reception. I have also listened to Radio CBC "Sunday Edition" on 9515 kHz from 13:00-16:00 UTC. I started a DX log to keep track of the distant stations I picked up.
When this radio was made (in Japan) there were two standard jack sizes: 2.5 mm and 3.5 mm. The 3.5 mm is roughly the same as a 1/8", and the 2.5 mm roughly corresponds to 3/32."
- AC/DC operation switch (uses 4 "C" size batteries)
- Telescoping antenna. Extends 30½". Tilts and rotates
- Headset / Earphone jack: 3.5 mm Ø (roughly 1/8" diameter) *
- External Antenna jack: 2.5 mmØ (roughly 3/32" diameter) **
- Tone control knob
- Fine-tuning dial for both SW and MB bands
* Radio Shack "Stereo-to-Mono Adapter" (part number 274-368) enables the use of a stereo headset with the monaural output jack allowing the mono signal to be sent to both channels of the headset.
** Radio Shack refers to the 3/32" jack size as "sub-mini." The Radio Shack part number for the correct 3/32" connector is: 274-290 (phone plug / red / 2 conductor / fits 3/32" mono jack / comes in a package of 2). A wire can be soldered to the center terminal of the connector to be used as an external shortwave antenna. Use shrink tubing around center terminal after soldering.
Update / March 7, 2005:
The sound quality of the Realistic Globester 4 degraded quite suddenly in February, 2005. So I ordered a replacement speaker from Mouser Electronics (see Links). Price was $3.96 plus shipping. Mouser part number: 25SP035. Speaker is 3.5" Ø, 8 Ω, 0.8 W. The original speaker (a Pioneer) was rated for 1 W. Mouser had a .pdf file that illustrated the dimensions and this one looks like it will fit well. I replaced the speaker on March 12, 2005 and it fixed the distortion problem. The speaker from Mouser was exactly as their online .pdf file illustrated and fit perfectly into the tight space of the radio.
Update / March 17, 2005:
After replacing the speaker, the tuning dial squeaked a little bit. I discovered that the tuning dial string was rubbing against the insulating foam behind the speaker (which I replaced due to the original foam disintegrating). I cut the foam down to size and the tuning dial was silent again.
Realistic "Astronaut 4"

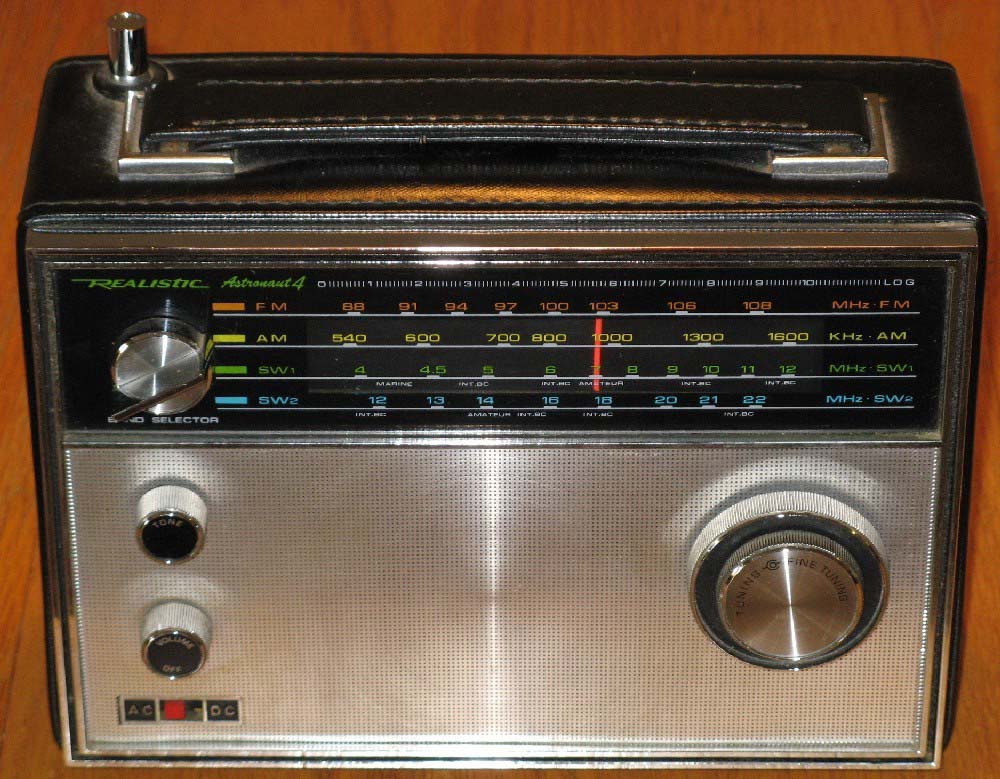

1974-1976 Realistic "Astronaut 4"
Update / April 6, 2007:
I discovered a similar radio known as the Realistic "Astronaut 4." The shortwave tuning range on the Astronaut 4 is significantly different from the Globester 4 (two bands covering 4-22 MHz). The Astronaut 4 appears in the 1974-1976 Radio Shack catalogs for $44.50 to $49.95.
Tuning range for the "Astronaut 4" version of this radio:
Frequency Modulated (FM): 88 - 108 MHz
Broadcast (AM): 535 - 1605 kHz
SW1: 4.0 - 12 MHz
SW2: 12 - 22 MHz

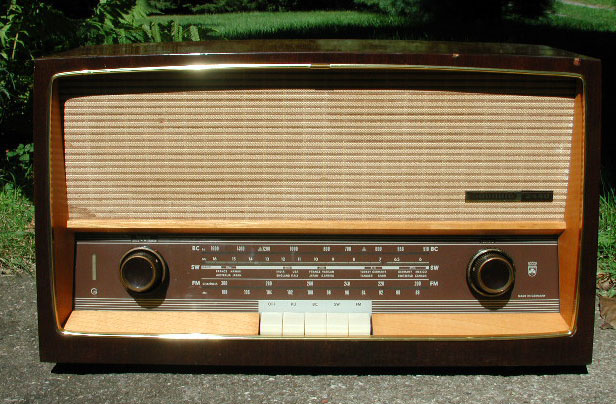

Grundig (West Germany) "2440U"
Years manufactured: 1964-1965
Serial number: 1322604668
Valve (tube) line up: ECC85, ECH81, EF89, EABC80, EL84, EM87
3 loudspeakers: 1 large, 2 small. All behind front grille
Broadcast (AM): 510 - 1620 kHz
Shortwave: 5.9 - 16 MHz
Frequency Modulated (FM): 88 - 108 MHz
The Grundig 2440U is the second radio purchased at the antique radio swap meet in Kutztown, Pennsylvania on September 18, 2004. The first one was a Realistic "Globester 4" transistor radio. The swap meet was hosted by the Delaware Valley Historic Radio Club (DVHRC). One of the memorable things about the annual outdoor swap meet that year was that Hurricane Ivan was giving the northeast a good old fashioned drenching. The 35 mph winds blew the rain sideways – with dampness and occasional over-spray reaching the center of the pavilion. In spite of the chaos, this admirable little beauty only set me back $25.
It had a small water stain in the bottom left corner of the grill cloth, and two small chips out of the top edge of the cabinet, otherwise, it was in decent cosmetic condition. As of 2011, several internet sites were selling this model for $350 - $400.
The Grundig 2440U was built for the 1964-1965 season, so it was interesting to see the Civil Defense (CD) symbols on the AM band, which were only required by law until 1963. CONELRAD was the emergency radio broadcast system that was supposed to provide civil defense instructions in case of a nuclear attack by tuning to 640 kHz or 1240 kHz on your AM radio dial. As if your local station would still exist after they dropped the big one. CONELRAD stood for CONtrol of ELectromagnetic RADiation. It was replaced by the Emergency Broadcast System (EBS) on August 5, 1963.The schematic and "Photofact Folder" (Howard W. Sams Company / June 1965) for the Type 2440U was available from "Just Radios." The Sams Photofact Folder includes the English schematic, annotated layout photos with part numbers indicated, and a complete parts list. The cost of the package was $5.00.
Refer to the Glossary for some notes about reading German schematics.View the Grundig 2440U Restoration Page

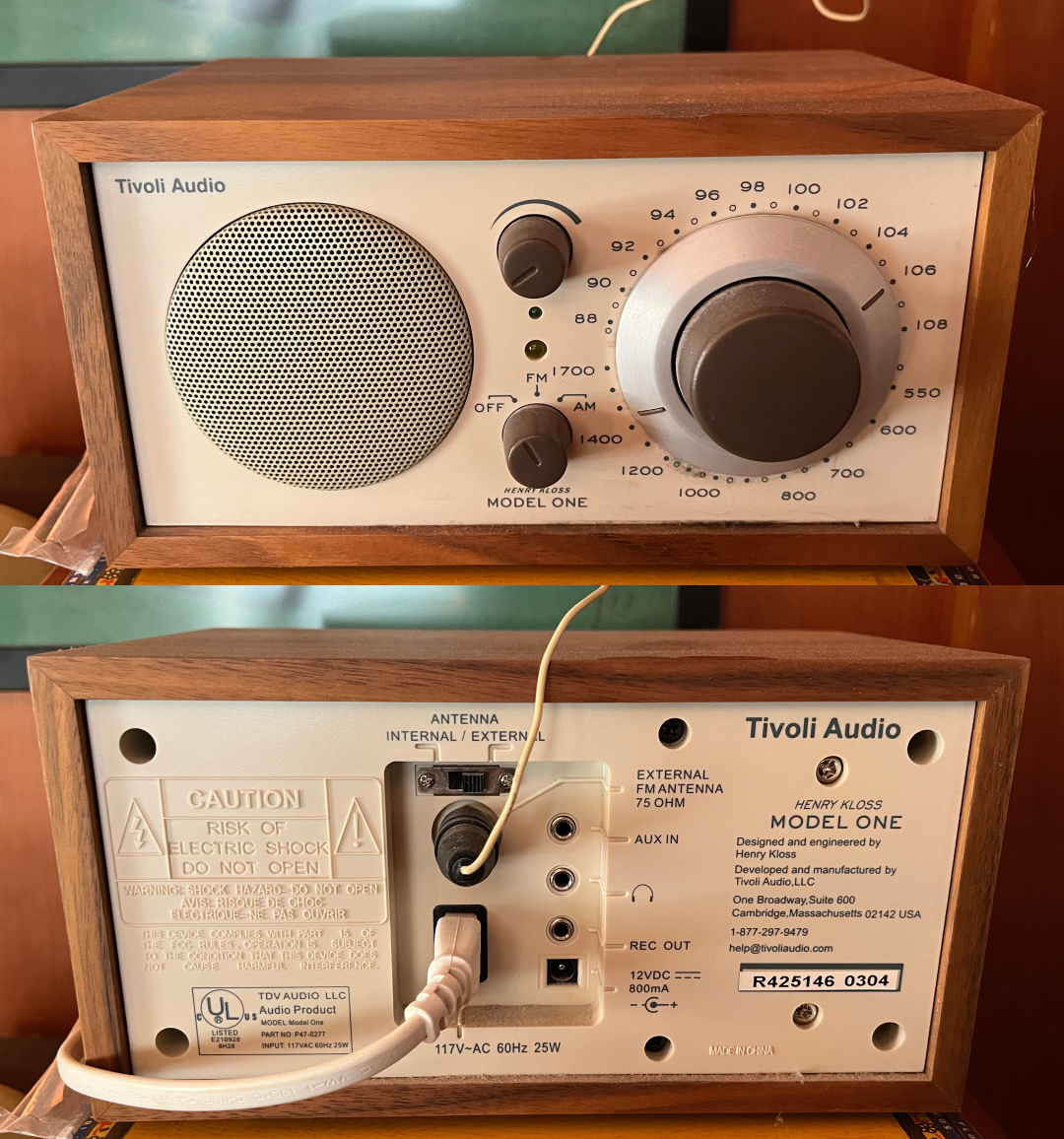

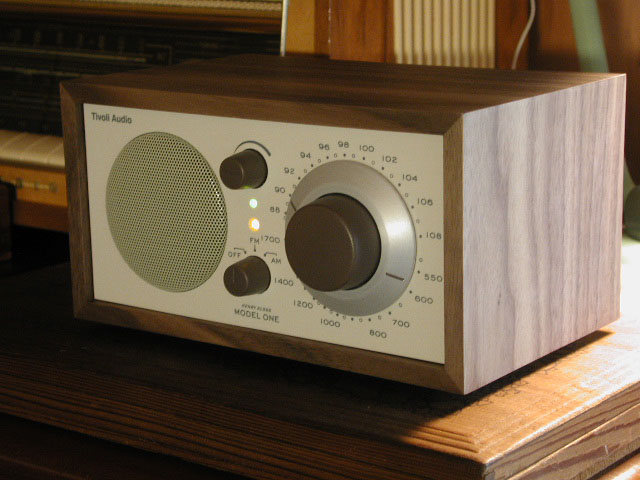

Tivoli "Model One" AM/FM (mono) table radio
Designed by Henry Kloss
This small, classically (retro) styled, monaural, analog radio was originally released in 2000 as the first product sold by Tivoli Audio of Cambridge, Massachusetts. Allegedly, the famous Henry Kloss came out of retirement in the 1990s to design this handsome, uncluttered unit. As of October 16, 2004 it retailed for $99 USD. I found a local Tivoli Audio agent ("Soundworks" on Monroe Avenue) through the Tivoli website. It is surprisingly heavy for its size, and appeared to be well constructed. This particular example has the Classic Walnut (M1CLA) wood veneer cabinet and off-white faceplate. It also came in other wood (both veneer and solid wood) and color combinations such as Hunter Maple (M1GRN) and Cobalt Cherry (M1BLU). The green pilot lamp on the front indicates the power is on, and the yellow tuning lamp varies in intensity depending on signal strength - a modern "magic eye" tuning indicator! The tuning dial has a 5:1 ratio so that stations can be tuned with greater accuracy. This is an early example, and has no AUX input position.
The first test I give any radio after bringing it home is to find out how well it picks up the low-power college and community stations on the "left end" of the FM dial. The "Model One" pulled them in without any problems. I used the external wire antenna that was provided with the radio. The first two hours of listening was impressive because of its ability to pick up these marginal FM signals. I imagine it must be a common desire among radio listeners (living well outside metro areas) to want the benefits of cultural and eclectic programming that certain low-power community and university stations can provide. The radio "must not realize it is small" because the undistorted amplification of these marginal FM signals was quite good. It is interesting that no external tone adjustments have been provided. As someone who listens primarily to jazz and classical music, I found the fixed audio quality of the speaker to be quite acceptable. When tuned to modern "progressive / alternative" stations, the bass response was also good.
My older Grundig vacuum tube radios have varying degrees of success picking up the weaker FM signals. On the other hand, my 1989 Grundig "Satellit International 400" picks up these weaker signals without any difficulty whatsoever, but the sound is not quite as good as the Tivoli "Model One." So, I will use the "Model One" to do my "alternative listening" while the local NPR affiliate goes on their tedious pledge drives. That is (of course) after making a pledge to the local NPR station.
As I wrote this overview, I had the Tivoli "Model One" radio tuned to a 3,000 Watt FM college station (WRUR) during a classical music program and had the volume turned up about ¼ of the way. I am located about 30 miles from the station's transmitter. The radio was sitting on a shelf – behind, and slightly above me in an 11'x14' room. During one of the louder selections, it was really filling the room with sound. As I looked over my shoulder at the radio, I was reminded of how small (slightly larger than a brick) it actually was. The sound seemed to be coming from a much larger enclosure. Brilliant!
From what I have read, the "Model One" uses the same technology that enables cell phones to produce clear audio even with weak RF signals. According to Tivoli, the designers of the Model One used GaAs MES-FET technology to increase both sensitivity and selectivity. Sensitivity is the radio's ability to pick up weak distant stations. Selectivity is the radio's ability to reject signals that are close to the desired frequency. As far as what GaAs MES-FET means, I can tell you by looking at the Periodic Table of Elements that "Ga" is Gallium and "As" is Arsenic. Further, "MES" stands for Metal Semiconductor and, "FET" is a Field Effect Transistor. Referring to an electrical engineering glossary, I found this definition for GaAs MES-FET: Gallium Arsenide Metal-Semiconductor-Field-Effect-Transistor: A transistor, built with gallium arsenide semiconductor material, with a conducting channel positioned between a source and drain-contact region. Search the internet for more information, applications, and trade-offs regarding the use of this technology. Further discussion is beyond the scope of this page.
- Update / August 1, 2005: Ordered a new AC power cord directly from Tivoli Audio for $5.00. Dealt with the Customer Service Manager, Brian Lewandowski to make the transaction. My original power cord became damaged due to my own negligence.
Brian M. Lewandowski
Customer Service Manager
451 D Street, Suite 902
Boston, MA 02210
t: +1 (877) 297.9479 x102
f: +1 (617) 428.0088
blewandowski ]at[ tivoliaudio.com
- Update July 15, 2006: After nearly two years of enjoying the Model One, the radio still looks, sounds, and feels like new. I have not used it to listen to many AM stations, but it does pick them up when I want to focus on the broadcast band programming. Also note that the price has risen to $119. An increase of $20 in less than two years. The "Platinum" Series (solid wood cabinet instead of veneer) sold for $199 as of July, 2006. As of August 2014, the price of the Tivoli Model One was $149. In September 2020, it was holding steady at $149.
- Update / January 10, 2007: Bought a new Tivoli Model One (as a gift for my wife's mother) in December 2006 (black cabinet with black faceplate). The combination switch for "OFF/FM/AM" also included a new position for "AUX" to select auxiliary input. My original Model One did not include the AUX position (see photo).
- Update / circa 2008 - 2010: Bought another new Tivoli Model One for the kitchen at home (black cabinet w/ the black faceplate again). Serial number: J175286 0710. I suspect the "0710" in the serial number indicates a July 2010 build date, which narrows down the possibilities of the actual purchase date. Early on, this radio developed alignment and frequency drift problems. It constantly needed to be re-tuned on the AM band. Also, the dial did not align to where the radio (frequency/station) was actually tuned. This is the only Model One that had any problems. The others worked as designed.8/26/21 - Called Tivoli customer support (Tel. 877-297-9479), and they no longer serviced the Model One, but recommended Rockport Radio (www.rockportradio.com). Submitted a quote request on the Rockport Radio site. Got an automated confirmation with a ticket (query) number, and a separate reply from John Polcari.
Note: Follow up with Rockport Radio again in October 2021.Subject: Re: Rockport Radio Repair Query [#1278]10/11/21 - Followed up with John about an updated ETA on the replacement tuners.
Date: Thu, 26 Aug 2021 16:36:09 +0000
From: John Polcari <firstname.lastname@example.org>
Reply-To: John Polcari <email@example.com>
Yeah, that's "tuner drift", and it requires a tuner replacement, which unfortunately we can't do right now. We don't have any replacement tuners at this time. We're hoping to source some soon from China. We're in touch with a former Tivoli supplier, and we're talking, but we have no idea about delivery time. Please get back to us in a couple of months.
11/9/21 - No reply yet (a reply is unlikely at this point).
- Update / April 2015: Bought a new Tivoli Model One (as a wedding gift for my boss) direct from Tivoli Audio. It was the attractive cobalt blue faceplate with the cherry cabinet.
- Update / circa 2015: Bought yet another new Tivoli Model One (for the living room at home). The cobalt and cherry combination was NLA from Tivoli, so this one came from eBay (mint and boxed).
- Update / September 2020: Started looking at used examples of the Tivoli "Model Two" (stereo) on eBay. Nothing purchased as of 8/26/2021.
In 1954, Henry Kloss dropped out of MIT to start Acoustic Research (AR) in Cambridge, Massachusetts where he and Edgar Villchur developed and had a lot of success with the first acoustic-suspension (sealed cabinet) speaker, the Type "AR-1." It was relatively smaller than what was in use at the time, and cost only 1/3 the price of other contemporary high end speakers. The AR-1 speaker paved the way for high fidelity audio for the masses. Later, at KLH a company he formed in 1957 with partners Low and Hofmann, he designed the famous KLH "Model Eight" (circa 1960), which was a tabletop FM-only high fidelity tube radio and the "Model Eleven", the first compact portable stereo. Another interesting radio designed by Henry Kloss is the Advent "400" (FM mono only). He designed that while at Advent, a company that he formed in 1967. The Advent company became famous for their loudspeakers but it was initially set up so that Mr. Kloss could pioneer the development of projection television. Curiously, the Braun Type "SK22U" tube radio (late 1950s to early 1960s) may have had some influence on Henry Kloss' work simply based on its pure, functional, minimal exterior styling. There is also currently a Tivoli "Model Two", which looks almost exactly like the "Model One" but has an extra cabinet for the second stereo speaker. Henry Kloss was born in 1929 and died in 2002 at the age of 72. According to Kloss, the quality of many radio receivers had declined because people did not think in terms of buying something that would last them twenty years. "It's the times. Things are so cheap that I will buy it, and if I like it, then okay. If I don't like it, I can always get another one. There is no consideration given to a purchase that would be satisfactory for use over a long period of time. People are not asking for good radios. There is no demand for such because people do not know you can get them," he said. Incidentally, Henry Kloss drove a Mercedes-Benz diesel, which he bought new, 17 years prior (circa 1985) to his death. More references to Henry Kloss can be found on the AR-2a loudspeaker restoration page.

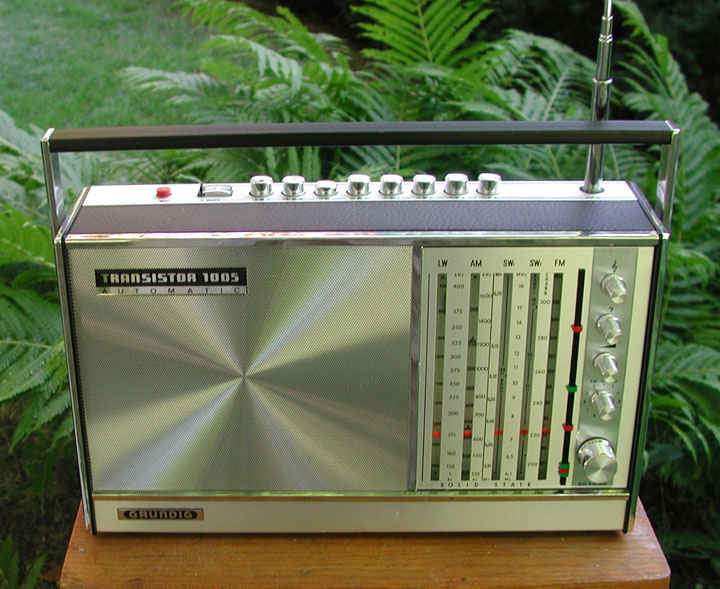

Grundig "Transistor 1005 Automatic"
I bought this radio from an eBay auction on March 6, 2005. The "Buy It Now" price was $169 plus $15 shipping. Probably a bit more than it was worth, but the seller assured me it was complete and in good working order. He was right. I was attracted to the period styling, with lashings of chrome and brightwork, along with the black sides and handle. This was a popular style from the late 1960s through the 1970s. This may be one of the last Grundig radios actually manufactured inside Germany. I am not sure when Grundig production shifted to other countries (Portugal, Great Britain, Austria) but my guess is that it was by the mid-1970s.
The seller included a color photo copy of the Operating Instructions manual. If you know where I can find a hard copy of the original manual, please contact me. Note that the Service Manual is available from the "Manual Man" (see Links).
Tuning Range / Bands / Features:
- LW (145-400 kHz), AM (510-1620 kHz), SW1 (5.9-6.2 MHz), SW2 (6.1-16 MHz), FM (87.5-108 MHz).
- Double extension telescoping antenna; tilts and rotates. Raise it with the lower knob to 31½" for FM reception. For SW, raise it by the upper knob to its full length of 45½."
- Illuminated tuning dial with sliding dial markers for station designation.
- Bass, treble and SW fine tuning rotary controls and AFC switch for locking in those FM stations.
- Phono button for playback of external source through rear panel jack.
- Battery test button and meter. Battery case holds six D cells.
- Rear panel jacks for external antennas and earphone/speaker.
- Rear panel earphone jack is 3.5 mm Ø (DIN 45318) (1/8" Ø).
- Measures approx. 14"W x 8¼"H x 4¼"D.
- Weight: 10 lb 1 oz.
- Build date: 1970.
- Build location: Grundig - Werke GmbH - 8510 Fürth / Bayern - Kurgartenstr 37.

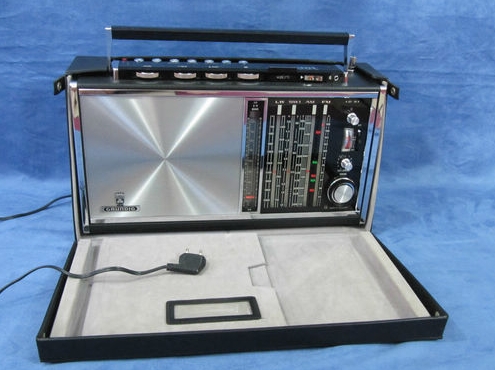

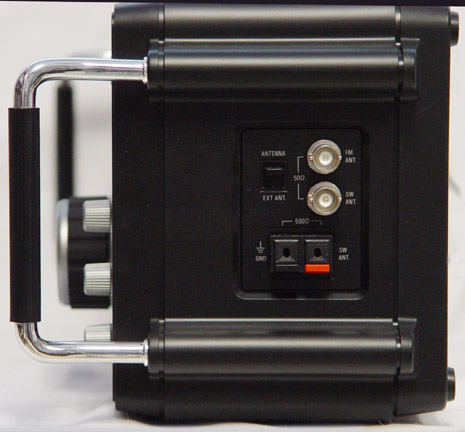

- In Grundig's "Satellit" series it most closely resembles the "Satellit 210" – made from 1969-71.
The European version of this model is called, "Concert-Boy Automatic N210" and only differs in appearance on the faceplate with the labels being in German instead of English.

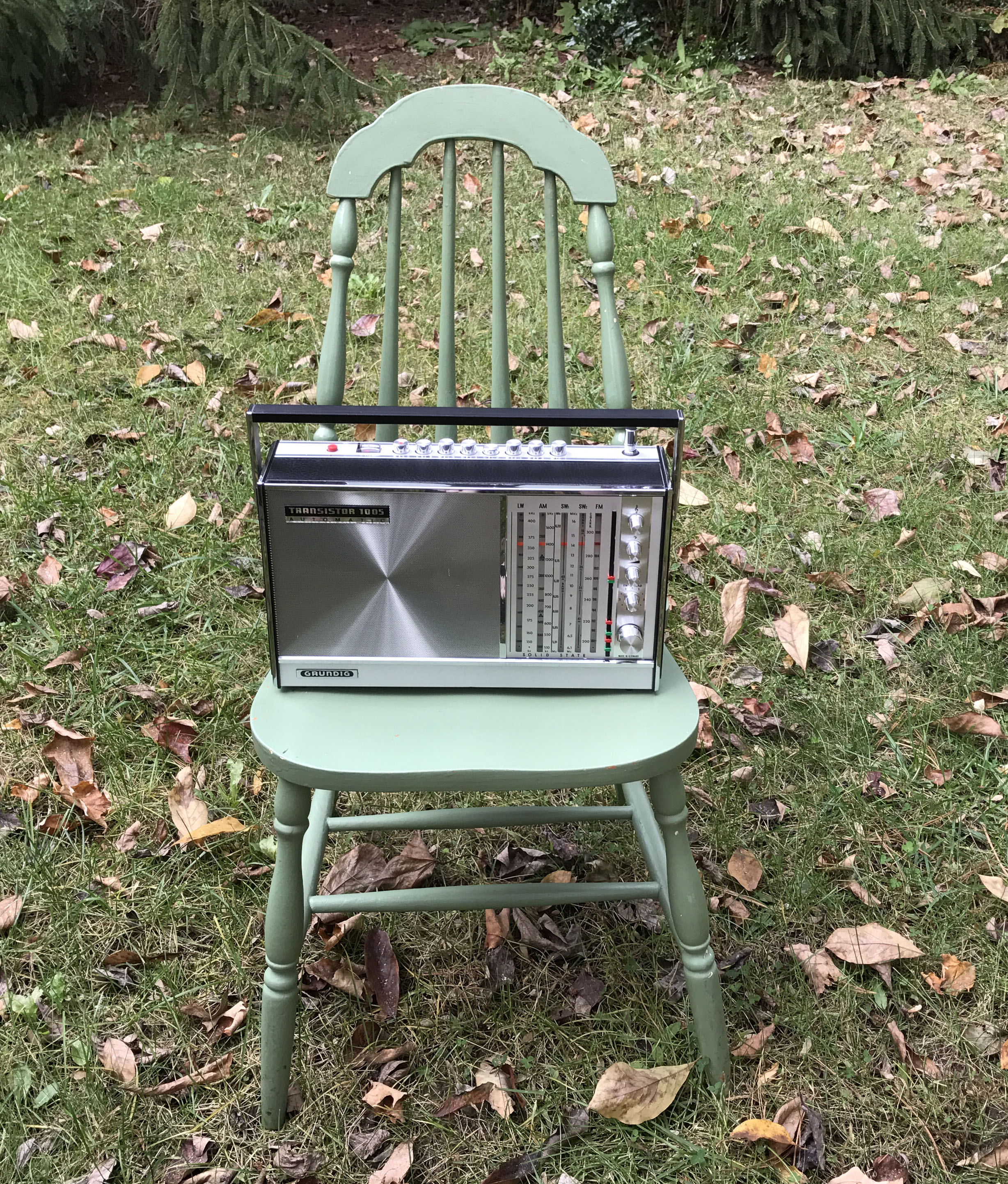

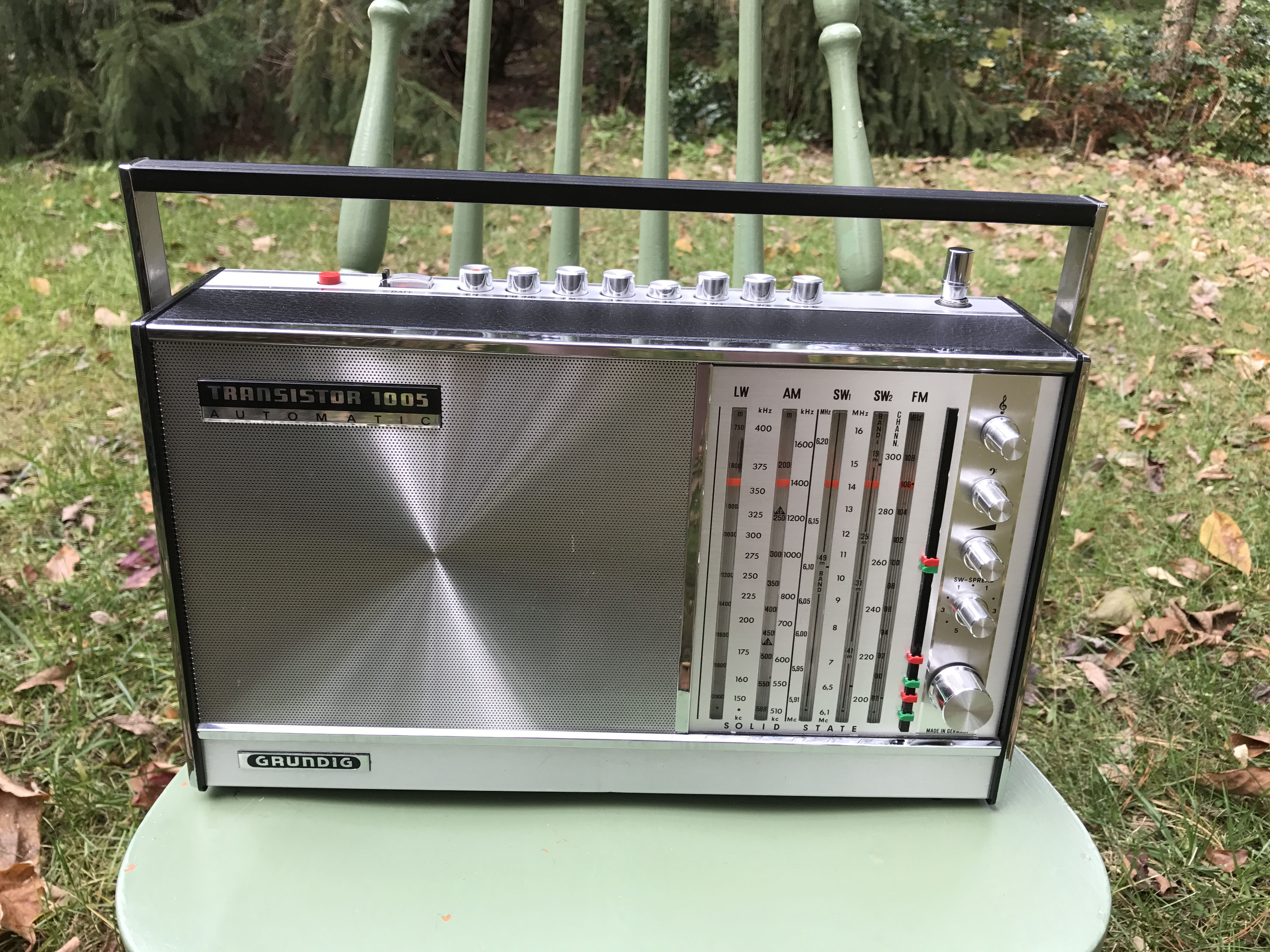

|Grundig "Transistor 1005 Automatic" – Getting Out of a Rut|
Photo 1. nice fall day (63°)
Photo 2. orange dial pointer

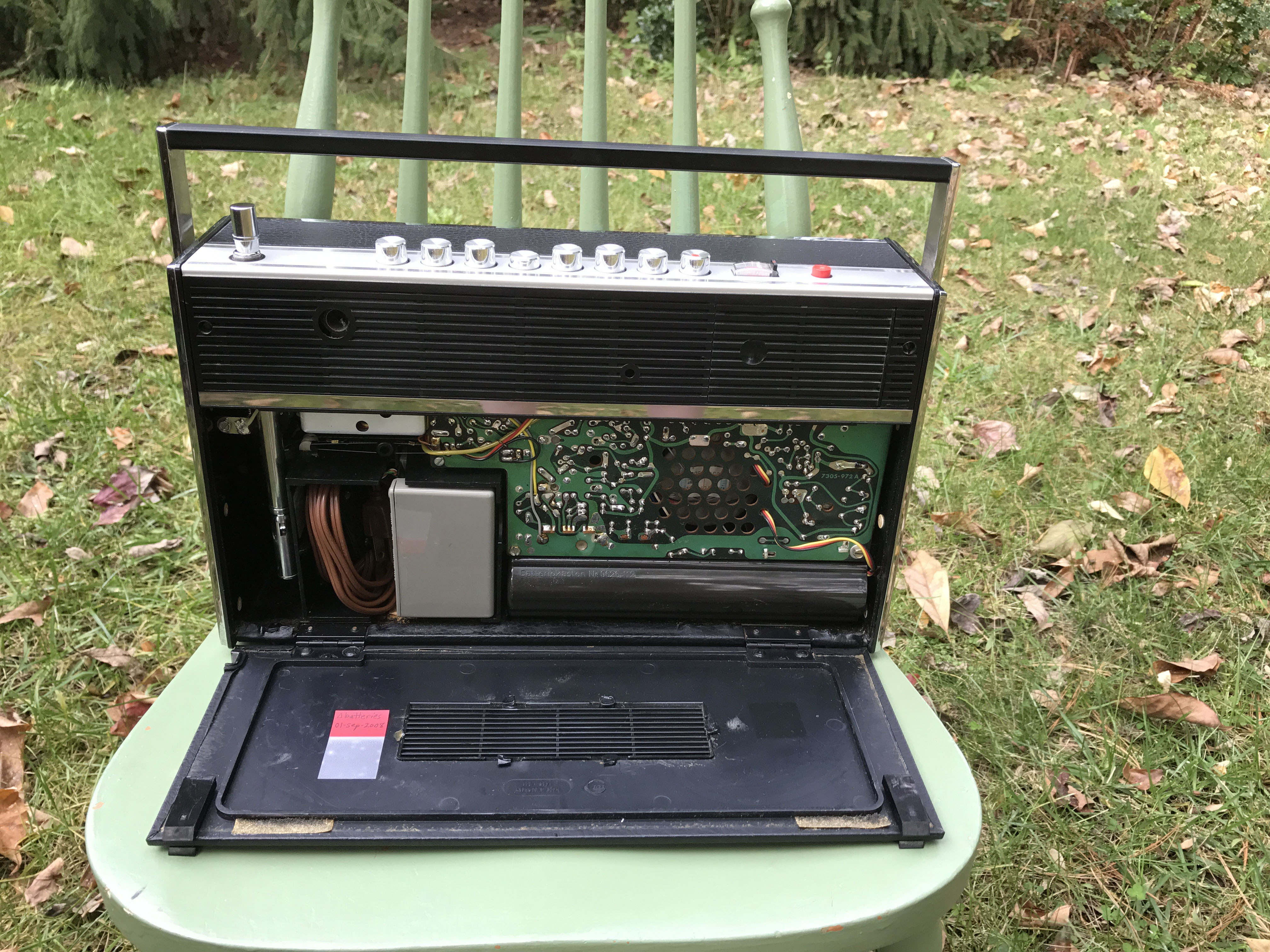

Photo 3. peek inside
|Photos taken October 27, 2017 / iPhone 7|
Update / October 23, 2017:

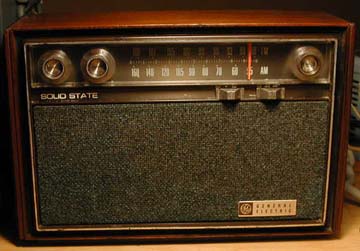

General Electric (USA) "T128H" AM/FM
This AM/FM radio was found at a garage sale in May 2005 for the price of $1.00. Wood cabinet, and cloth speaker grille. AC only with FM antenna jacks at the rear. Decent reception and sound quality. It needed a complete cleaning and detailing. I used "rottenstone" on the wood cabinet (rottenstone is a powdered form of weathered and decomposed siliceous limestone used for polishing) and paraffin oil, as it had some fine scuffs, swirls and paint from what appears to be 30 year's worth of normal usage.
This retro-styled radio features a dark wood cabinet with brass colored accents, and five ivory colored (piano style) push buttons for AUX (auxiliary inputs), FM, SW2, SW1 and MW (AM). It has a multipurpose "on-off-volume" switch and knobs for bass, treble, and frequency tuning. There is one large (102 mm 8 Ω 5W) speaker in the front covered by a period grille cloth design and also a speaker (102 mm 4 Ω 5W) on both sides of the cabinet behind the same style grille cloth. The front grille also has two brass labels affixed to it. One says, "HI-FI Sound" and the other says, "960." The back of the radio is made of the traditional particleboard, which includes model designation, technical specifications and serial numbers. Curiously, the back of this solid-state radio also includes a series of small round holes for heat dissipation, as if it were using vacuum tubes. When I first looked through the holes there appeared to be the faint glow of tubes, but it was only the tuning dial lamp. At the bottom, there are two RCA connector AUX inputs marked "R" (red) for right channel and "L" (white) for left channel (for CD or tape player, records or VCR). An FM/SW ANT. input (for the external FM/SW antenna wire, which is provided), an ANT. selector switch (toggles between "AM ANT." and "FM/SW ANT.") and screw terminals for both GND. and ANT. connections. The dimensions of the radio are: 15.25" L x 6.5" W x 11.25" H. The weight is: 4.2kg. Even though the top of the tuning dial says, "Grundig Germany", this radio was made in China (by Tecsun). It is interesting to note that in China, this radio is also known as the Tecsun model "1959." The Tecsun model 1959 was superseded by another style of antique (reproduction) radio, but they kept the same name, so both style "Tecsun 1959" radios will turn up in an internet search.
This is the radio responsible for raising my awareness of older European style radios several years ago (circa 2004). When I saw the Grundig Classic 960 advertised in catalogs, I began looking online to see what other European AM/FM/SW radios from this bygone era were like. Prior to seeing this style, I was primarily familiar with the ubiquitous American brands such as Zenith, Philco, General Electric, RCA-Victor, and the like. The online technical reviews for the first edition of the Grundig "Classic 960" were only marginal to fair, but the second edition, released in March 2002, was reported to be technically improved. So, after several years of reading reviews, and debating the pros and cons of ownership, I finally bought the updated version of the 50th anniversary edition of the Grundig Classic 960. I purchased it at The Source By Circuit City in Bracebridge, Ontario, Canada, July 26, 2005. The price was $149.00 CAD plus Canadian taxes (the base price worked out to $126 USD with 0.85% exchange rate). The package included a useful beginner's shortwave listening/reference guide, an owner's manual, and a retractable external FM/SW wire antenna (10 meters long).

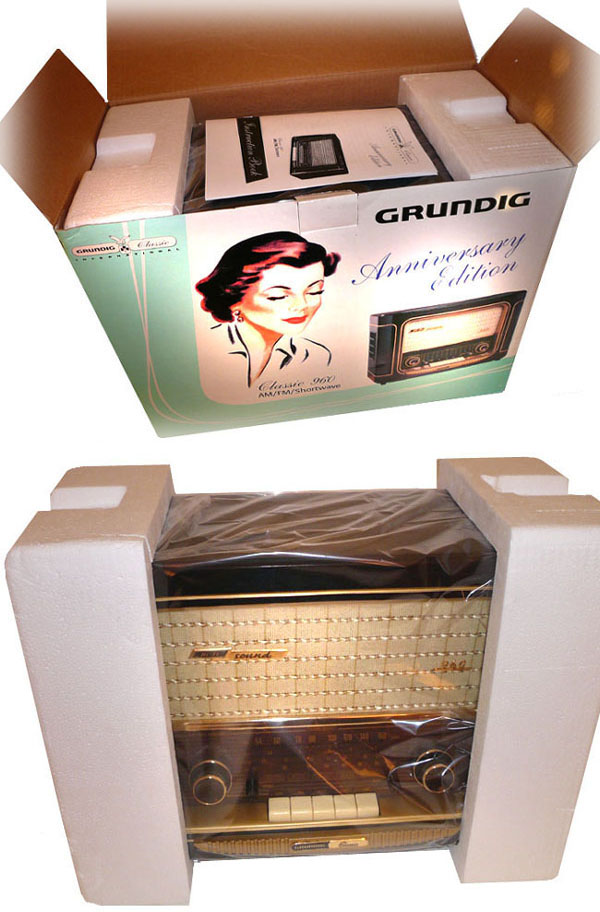

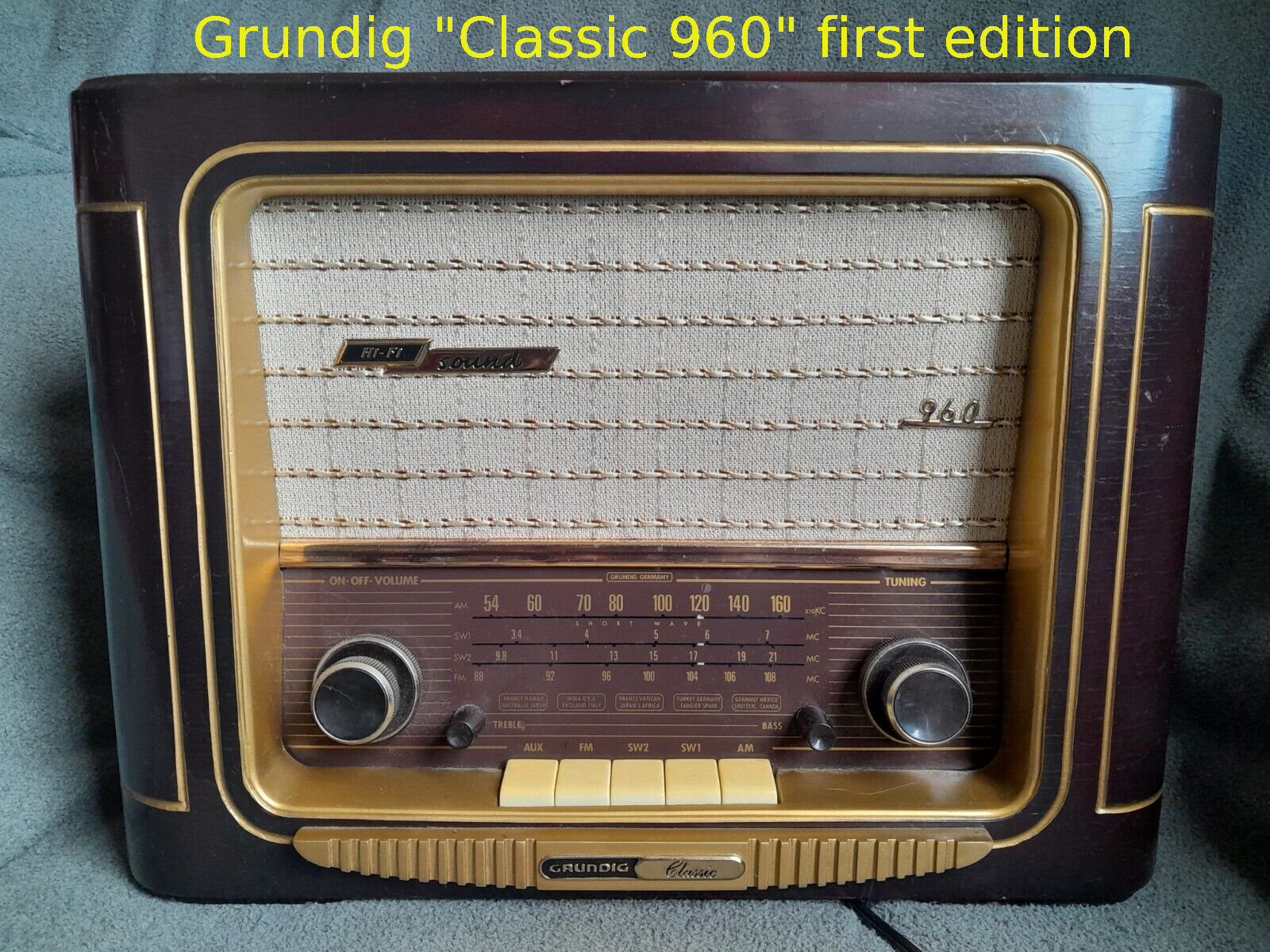

There are several ways to visually distinguish the first and second editions of the Classic 960 from each other. Click on this link and examine the lower portion of the tuning faceplate. The first edition included rectangular blocks with country names (located between the treble and bass tuning knobs). On the second edition (the one I purchased) the same area features horizontal lines with no text. The speaker grille cloth pattern is slightly different as well. There are fewer dark threads in the pattern of the second edition (see the link). Also note the position of the "HI-FI Sound" label on the grille cloth. On the first edition, it is lower and farther to the right than the second edition, which has it affixed close to the top left of the grille cloth. Another way to tell them apart is by the original box (if available). The first edition Grundig "Classic 960" came in a white box with pale green accents, an illustration of the radio, and a portrait of an urbane young woman in the style of mid-1950s advertisements. The second edition box is black, and features a photograph of the radio as well as photo of a bearded man in a black tuxedo holding an orchestra conductor's baton. The box that my radio came in (the second edition) says, "2518 02/03" suggesting it left the factory in February 2003. The "2518" is probably an internal factory code, not a specific serial number. There are two serial numbers on the back of the radio. Both editions came with the retractable external FM/SW wire antenna (10 meters long), the owner's manual, and the shortwave listening/reference guide.
The reception was not quite as bad as some of the online technical reviews seemed to suggest, although I have radios that can pick up distant FM stations (75 miles away) that this radio does not seem able to hear at all. With the external antenna, the reception of these distant and/or low-powered FM stations was only marginal and sporadic. Fresh out of the box, night time AM DX-ing was interesting in Ontario, Canada. I was able to pull in most stations from the Georgian Bay region while I was staying in Bracebridge, Ontario. Of course, Bracebridge is part of the Georgian Bay region, so this would be expected. Some of the stronger stations in Canada seem to be run by the CBC (eg. CBC1 and CBC2) and they were easy to pick up. I also picked up WHAM (50 kW from across Lake Ontario in Rochester, NY) without any difficulty. Other than a simple one night test in the hotel to see if the radio was basically functional, I did not attempt to tune any more distant stations.
The sound quality of the Classic 960 is unfortunately not as good as the old Grundig units. The bass response is not as deep and full as on the original models. Even with a wood cabinet, the sound quality (when tuned to FM stations) is average at best. They probably should have used better speakers. The tuning dial action was reported to have been improved in the second edition, and I can report that tuning shortwave stations with the Grundig Classic 960 (second edition) is no more difficult than with old vacuum tube shortwave radios. However, I found that once I tuned into a station, I did not find it necessary to repeatedly fiddle with the dial to keep the signal clear. The shortwave beginner's guide (provided) goes into some detail about how to tune shortwave stations. The guide suggests tuning slowly and deliberately to grab the signal.
Because the numbers on the tuning faceplate are painted, the dial lamp is not capable of back-lighting the numbers at night. How could such an oversight be allowed to happen? Photographs of the faceplate will mask this problem because the numbers are painted gold, and appear to be illuminated from behind. Also, on my radio, the front of the cabinet has raised bumps where (presumably) nails or tacks were used from inside the cabinet. This amounts to a quality control problem. The bumps are smoothed-over, and painted as the rest of the cabinet, but are quite noticeable in direct sunlight. If the radio is kept out of direct sunlight, the bumps are not noticeable.
Intriguing (and useful) enhancements might have included a stereo signal indicator, and a signal strength indicator similar to the old green "magic eye" tubes. At this late date (2005), several years after the initial release of the Grundig Classic 960, I doubt there will be a third edition to make up for the shortcomings and quality issues mentioned in this review. Grundig (actually, Tecsun) made a nice effort to resurrect the model 960, but they should have paid more attention to detail.
I will close this review by saying it was definitely a fun moment to open up a brand new pseudo-vintage Grundig radio from the box. Imagine how thrilling it must have been to bring home a new, high-quality vacuum tube radio in the 1950s and 1960s. Overall, the Grundig Classic 960 looks nice on the shelf, but only performs as an average AM/FM/SW radio.

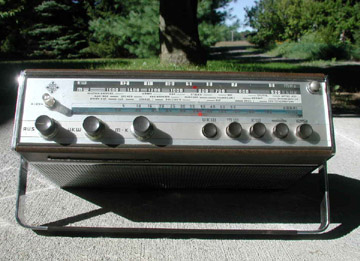

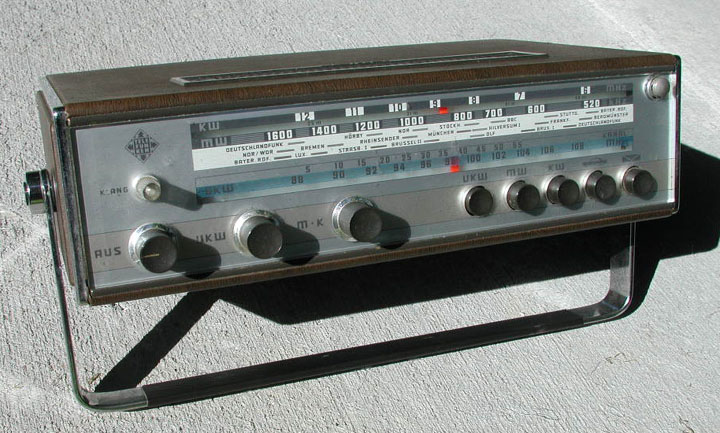

Telefunken "Bajazzo Sport"
In Germany, this is known as a "kofferradio" (suitcase radio) because of its small size and portability. By today's standards, it seems heavy (2.8 kg / more than 6 lbs), but in 1964, it represented the latest in modern styling, portability, and high quality. At that time in Germany (and other European countries), automobile radios were rare. This Telefunken was designed to function as a car radio using the 12 V car battery as a power source. An exterior antenna could also be plugged into the radio. The "automobile" (graphic symbol) push-button enables the radio to run on 12 Vdc. It also may have been capable of being inserted into a mounting bracket under the dashboard. However, the exterior of this model suggests its primary function was a hand carried portable because it is finished in relatively delicate vinyl, with chrome accents. If the radio were to be mounted into an under-the-dashboard bracket, damage may occur to the finish. So, it may have been placed on the passenger's seat or foot-well while it was plugged into the battery and antenna. If any readers have OEM facts for this radio showing how it was to be used in a car, please contact me.
Telefunken Bajazzo Sport
High quality portable transistor radio, which was designed to also be used in an automobile
Tuning Range / Features:
KW (shortwave) 6 - 12 MHz
MW (AM) 520 - 1600 kHz
UKW (FM) 88 - 108 MHz
Kanal (Channel) 5 - 55
- "AUS" (On / Off / Volume) knob
- Separate "UKW" (Ultra Kurtz Welle) (FM) tuning knob
- Separate "M-K" (Mittel Kurtz) (Medium shortwave) (AM and shortwave) tuning knob
- "KLANG" knob (tone adjustment)
- "UKW" push button switch
- "MW" push button switch
- "KW" push button switch
- Automobile (graphic symbol) push button switch (12 Vdc automobile power input)
- Arrow or Envelope (graphic symbol) push button switch (AFC / Automatic Frequency Control for FM )
- 12 Vdc input jack on lower left of radio body
- Antenna input jack on lower left of radio body
- Telescoping antenna. Extends 26½." Tilts and rotates
- Weight: 2.8 kg (98.8 oz = 6.18 lbs)
- Powered by (6) 1.5V C-size cells or 12 Vdc (automobile)
- The handle pivots to support the radio at a low angle, which affords a convenient view of the tuning dial
I found this modest looking radio at the annual Antique Wireless Association (AWA) swap meet on Wednesday, August 24, 2005. Its size and understated Teutonic styling belied its strong performance. It looked quite undistinguished sitting amongst the other radios on the table but I noticed it because of a "sixth sense" that enables me to identify European radios from great distances! With a borrowed set of batteries, the Bajazzo Sport played wonderfully and strong, which was remarkable for its age and a true testament to the quality of its design and construction. It was 41 years old at the time.
The tuning dial is annotated with German designations for its various controls because this particular radio was built for the German domestic market (not for export) and somehow found its way to these shores. What impressed me (after an obliging vendor loaned me 6 C-size batteries) was that it was able to receive a French speaking AM station from Montreal, Canada - some 250 miles away, as the crow flies - loud and clear at 10:30 in the morning (conditions were clear and sunny). Also, the reception of a low-powered FM college station was clear and strong without having to raise the antenna at all. A friendly fellow by the name of Paul Hyman (of German heritage, from Johnstown, PA) was behind the vendor's table and said that the Telefunken "Bajazzo Sport" was quite common on the German eBay online auction site (www.ebay.de). Sure enough, when I searched www.ebay.de, there were six different Bajazzo radios being auctioned at the same time. He also informed me that there was a more "de luxe" model of the Bajazzo radio, which features separate bass and treble controls and a few more bells and whistles. I later verified that the Telefunken "Bajazzo de luxe" (also a portable transistor model) includes a few more features as well as being enclosed in a teak wood case. In 1967 the "de luxe" model sold for $125 in the USA. Another model from the same series, the Bajazzo "TS 201", also features a teak wood case. There is also a similar model called the "Banjo."
During its first year of production (1964), the original price for the Bajazzo Sport was 399 Deutschmarks. That was a lot of money. I paid $35 for the radio and all it needed was a little detail cleaning and a fresh set of batteries. I could also factor in the "price of admission" to the swap meet. AWA membership is $20 and the AWA Conference registration fee (at the door) was $28. I missed the chance to pre-register, which would have knocked $6.00 off the registration fee. Several weeks prior to the conference, I sent an email to the club asking about the early registration fee and whether or not it applied to vendors only, or included general admission to the entire conference and/or the swap meet, but my message went un-answered. So this radio actually cost $83 – if you will – not including the day off from work, the price of diesel fuel to drive 30 miles to and from the conference, and the $5.00 spent on lunch.
Update / July 29, 2006:
I received a nice e-mail from Steve Birch of London, England, regarding his own Telefunken "Bajazzo Sport" radio...
Update / October 21, 2009:
I received an e-mail from Martti Peräaho of Finland, regarding his Telefunken kofferradio ("suitcase radio"). This section of the page is turning into a nice collection of international correspondence about the Telefunken Bajazzo radio!
More about the AWA swap meet and conference on August 24, 2005:
I also found a couple of interesting books at the AWA book fair, which was part of the annual conference and swap meet. One was "Seizing the Enigma" (David Kahn / 1991), the story of cracking the German U-Boat code during World War II. The other book was "Prime Time" (Alexander Kendrick / 1969), the life story of Edward R. Murrow.
I also attended the 2:00 p.m. (1800 UTC!) lecture by Bart Lee (KV6LEE) about a radio experiment scheduled for December 2006 to verify (as much as possible) if it was really possible and probable for Mr. Marconi to hear what he claimed in December 1901 in Newfoundland. Factors such as the time of day, and the frequency of 833 kHz (in the middle of the broadcast band) has cast a shadow of doubt on what Mr. Marconi could have actually heard. On the other hand, Bart Lee thinks that other parameters may have been quite favorable for Marconi such as the winter solstice and the sun spot cycle as well as the terminator line (the cutoff point for sunlight at a given point on earth at a given time). The sun spot cycle was at an 11 year low in December 1901. At the time, they did not know about ionospheric "skip" either. Well, the sun spot cycle will be at its lowest point again in December 2006 and so there are a number of people and radio clubs intending to find out if a CW beacon signal at 833 kHz (Marconi's original frequency) originating from England can in fact be heard in Newfoundland or in other places, if at all. Search for the Poldhu Radio Club's website for more information.

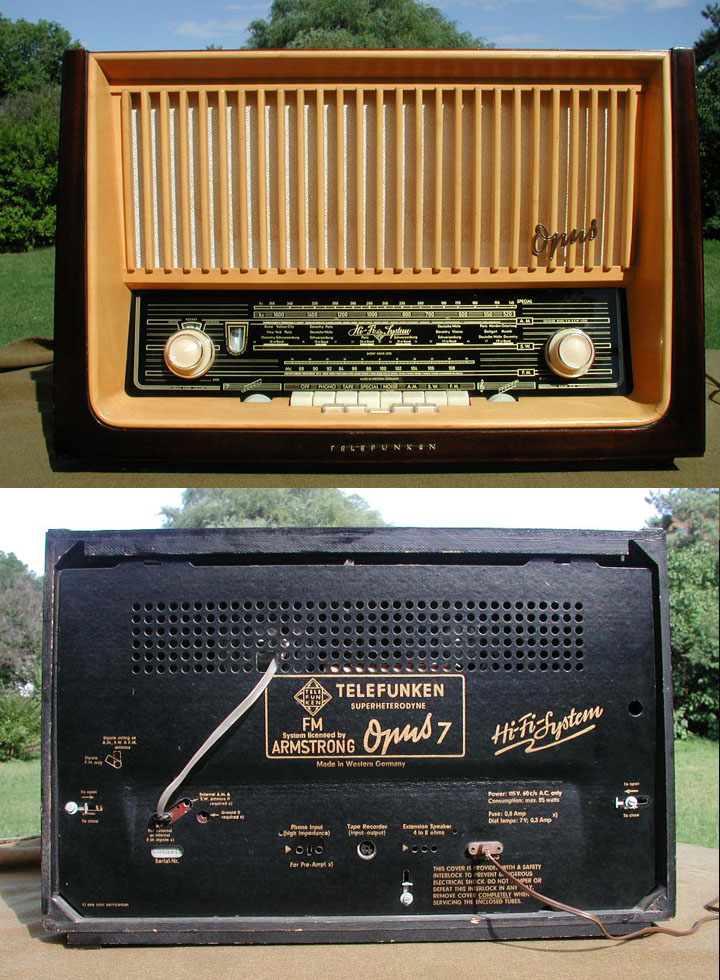

The term "modern" (above, for Model 2) refers to the fact that "Model 3" (simply a cabinet variation) used an earlier cabinet design. Model 1 also had a modern cabinet, but featured a blond finish, green dial and light buttons.
Valve (tube) lineup: ECC85, ECH81, EF89, EF89, EABC80, EC92, EL84, EL84, EM80 (magic eye)
Tuning Range / Features:
AM: 515 - 1620 kHz
FM: 88 - 108 MHz
SW: 5.9 - 18.5 MHz (50.8 - 16.2 m)
Separate bass and treble control
Rotary ferrite rod antenna for AM
Separate tuning controls for AM and FM/SW
Size: 25.5" x 16.5" x 11"
Weight: 15.8 kg (34.8 lbs)
Highly polished dark walnut cabinet
"Selectovox" (pre-set tone modulation) push buttons for Intim, Bass, Orchest., Jazz, Solo
Six-speaker system: 2 perm. dyn. bass 8.5", 2 perm. dyn 4", 2 electrostatic tweeters 2.8"
Two dial lamps 7V/0.3A (per owner's manual). Probably a Type 40 bulb
Made by Telefunken for the 1956-1957 season. The original 1957 price was $299 in the USA. I found this beautiful example when I visited Ross Hochstrasser's radio and clock repair shop in Whitman, Massachusetts on September 1, 2005. He had already done the overhaul, replacing old capacitors and the selenium rectifier, etc. and planned to keep it for himself, but he eventually agreed to sell it to me for $500.00. He included an original owner's manual, an original schematic (enclosed in an envelope inside the back of the radio) and a photocopy of the numerous Telefunken service sheets and parts list (NLA from Telefunken of course). He also put a new EM80 "magic eye" tuning tube in it before I left the shop. Meeting Ross was informative and inspirational as he graciously spent almost five hours discussing various aspects of collecting and restoring old European radio sets. I tried to absorb as much information as I could during that time, as well as took some brief notes. I guess expected my visit to last 30 minutes or maybe an hour at best. He was generous with his time and knowledge for the purpose of keeping these old radios alive.
The radio plays strong and sensitivity and selectivity both seem to be quite good. The sound quality is as good as it gets with radios like these. The "Selectovox" (preset push buttons) enable the listener to tailor the sound to the type of music they are listening to. The EM80 tuning eye tube glows brightly.
Refer to the Glossary for some notes about reading German schematics.
AM - Standard Broadcast (520 - 1620 kHz)
SW - shortwave Broadcast Band (6 - 18 MHz)
CB - Citizen's Band (26.965 - 27,405 MHz)
VHF LO - Public Service Band (30 - 50 MHz)
FM - Standard FM Band (88 - 108 MHz)
VHF AIR - Aeronautical Services Band (108 - 136 MHz)
VHF HI - Public Service Band (144 - 174 MHz)
UHF - Public Service Band (450 - 512 MHz)
This radio was introduced in the 1978 Radio Shack catalog. Classic 1970s styling! Only needed a cosmetic detailing. Works well on AC. Have not verified DC operation. Included the original Owner's Manual (excellent condition).

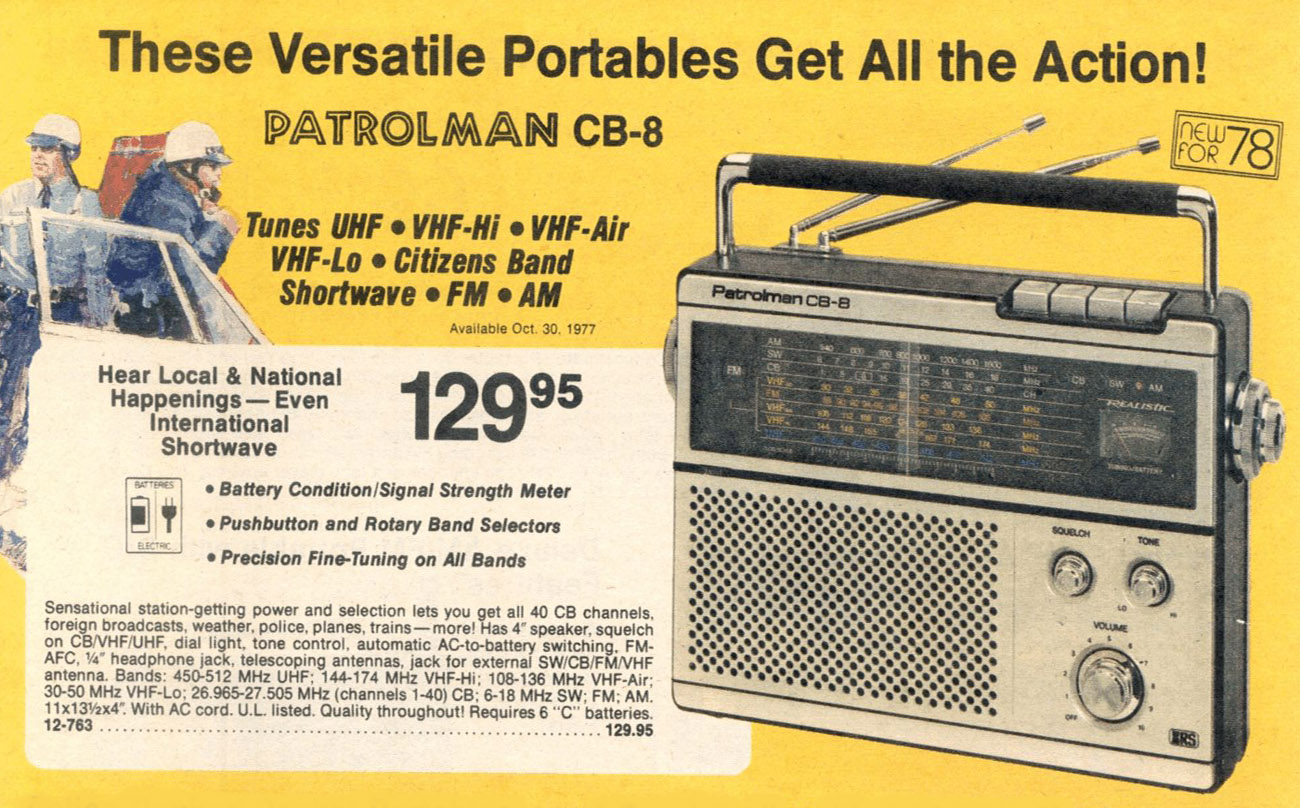

The 1978 Radio Shack catalog introduced the Patrolman CB-8
DC operation: 4 C-cells.
AC operation 110 Vac mains.
Features two tuning dial lights and a signal strength meter! Separate antennas for UHF and FM. Internal AM antenna.
Purchased at Winterfest (amateur radio ham fest) in Horseheads, NY.
Date: February 25, 2006
Realistic "DX-160 Solid State Communications Receiver"
Realistic "DX-160" / Made in Japan (1975-1980) for Radio Shack by General Research of Electronics, Inc.

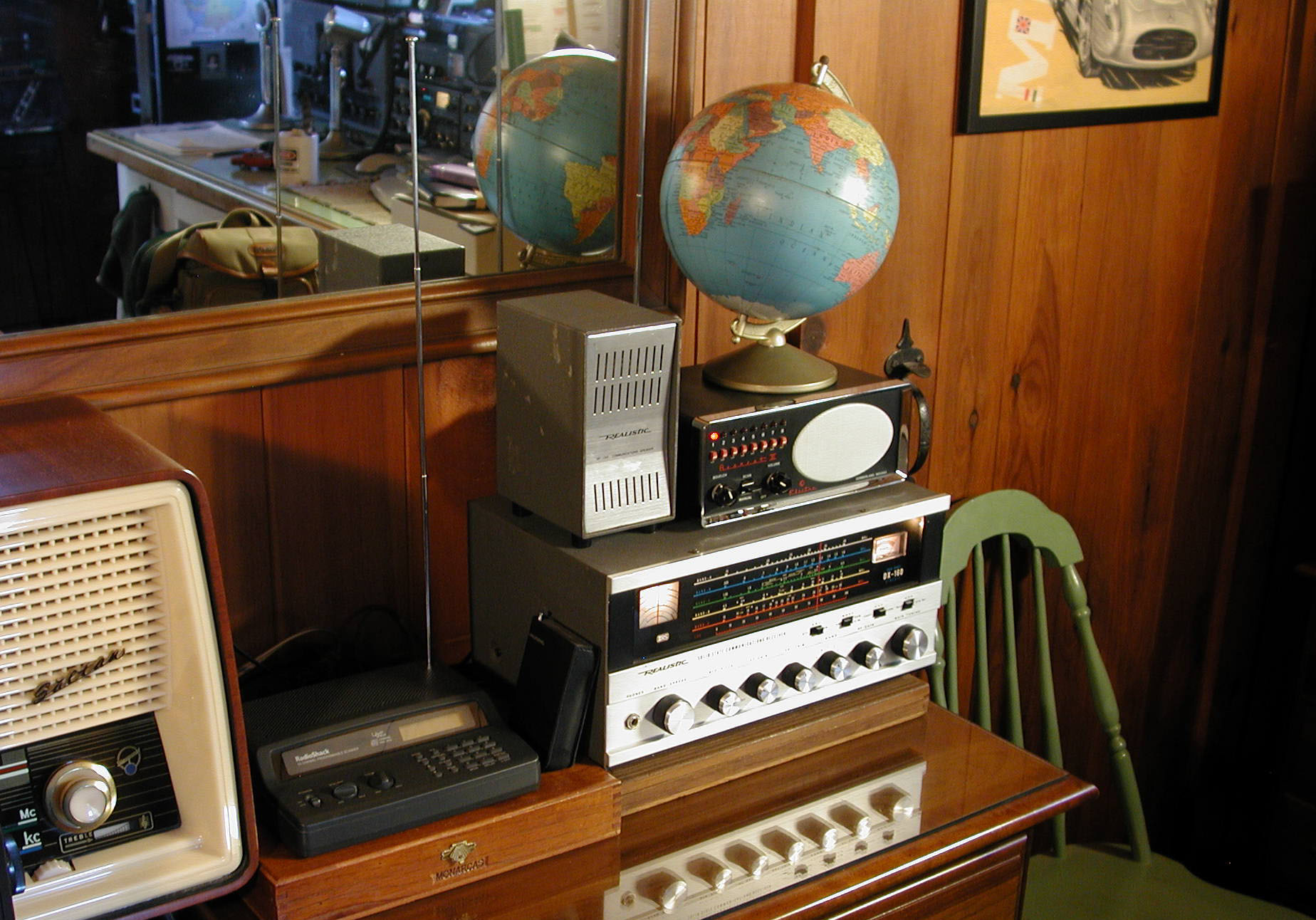

This photo includes several radios. The centerpiece is a Realistic (Radio Shack / Japan) "DX-160 Solid State Communications Receiver" with original, model "SP 150 Communications Speaker." Also shown (on top of the DX-160) is the Electra "Bearcat III" 8-channel crystal controlled scanner. The removable power cord of the Bearcat III uses a 4-pin "Jones" plug. I got the Bearcat III scanner for $2.00 (mint condition) at the Antique Wireless Association (AWA) Spring Meet at the Bloomfield elementary school on May 5, 2007. A Grundig "Mini World 100 PE" is leaning against the DX-160. In the larger photo (click photo above) there is also a Radio Shack "PRO-2014" 50-channel programmable scanner. Photo: January 20, 2008.
Range A = 150 - 400 kHz (coverage gap between 400 kHz - 535 kHz)
Range B = 535 - 1600 kHz
Range C = 1.55 - 4.5 MHz
Range D = 4.5 - 13 MHz
Range E = 13 - 30 MHz
Log scale = 0 - 100
Modes: AM or SSB/CW (adjustable BFO pitch for SSB)
Features: ¼" headphone jack, ¼" remote speaker jack, standby switch (mutes audio output, but keeps power and dial lights on), fast/slow AVC selector switch, RF gain, antenna trimmer, BFO pitch control. Adjustable band spread (left hand meter in photo). Can be powered by 12 Vdc or 120 Vac. The combination switch for power (on/off) and volume is labeled, "AF Gain." Has a signal strength meter calibrated in "S units" (right hand meter in photo). Has 1 IC, 5 FETs, and 6 Transistors. Original price in 1975 was $160.
Purchased the DX-160 on eBay / 18-may-2006 / Arrived 02-jun-2006 from Tennessee / $66 + $20 freight. Both the radio and speaker were in "less pristine" condition than I was hoping for. They were completely functional and intact, but the gray metal enclosures were scuffed up just a bit. The audio is "communications quality" (similar to a police scanner). High fidelity was not a feature of many SW radios. They were only made to listen to the broadcast coverage bands. The DX-160 is quite common today (June 2006) and there are several being sold on eBay at any given point in time. Wait for one that includes the speaker, and original owner's manual. Sometimes, well maintained examples also include the original box. Be prepared to scrape a little extra coin together for those.
One of the reasons I was interested in this radio was the retro styling. I was a teenager in the 1970s, and remember when they were new. I also admire the quality of vintage SW radios made for Radio Shack. They may not be the absolute best, but for the price – they have a fair amount of value. The owner's manual and service manual are both readily available online in .pdf form.
With a 30 foot random wire antenna (#20 AWG), the sensitivity is adequate. It is a decent shortwave radio with stylish retro looks. A good choice for those wishing to become familiar with the ham bands and international shortwave broadcasts.
On February 23, 2008, I picked up a DX-150 (1969 - 1971) at the 27th annual Elmira Winter Hamfest. Price was $45 but there were "birdies" (heterodyning) up and down the AM (BC) band. The DX-150 has 30 semiconductors. I sold it at the Rochester Hamfest that following June.DX-150 / DX-160 References and Resources:
- 1976 Radio Shack Catalog advertisement for the DX-160

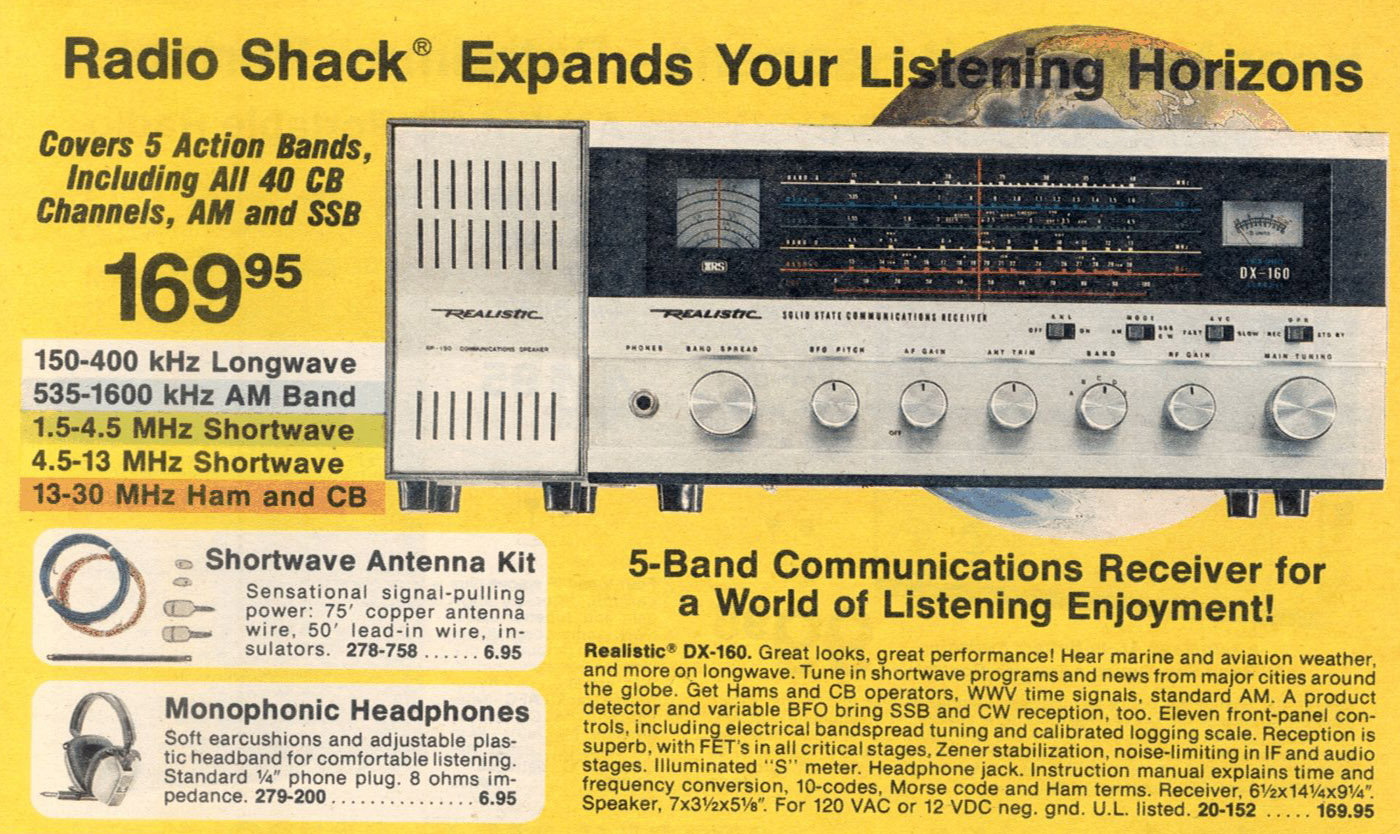

- 1978 Radio Shack Catalog advertisement for the DX-160
- DX-150 Service Manual: www.decodesystems.com/dx150.html
- DX-150B Service Manual: www.signalharbor.com/dx150.html
- Mike Crabtree's "Lowbander" repairs: www.lowbander.com
Telefunken "Jubilate de Luxe" Type 5461 W
Telefunken (West Germany) "Jubilate de Luxe" Type 5461 W
Years manufactured: 1963
Serial number: 699115
Alternate photo / November 28, 2007
Valve (tube) line up: ECC85, EABC80, ECH81, EL95, EF89, EM84
Magic Eye tuning tube = EM84 (6FG6/EM84).
AM/FM/SW table-top radio with push buttons and Type EM84 "magic eye" tuning strength indicator. Wood cabinet, plastic controls, glass faceplate, illuminated by one (slightly off center) Type 40 bulb.
Tuning dial pilot lamp (one required) is Type 40, 6.3 V, 150 mA (0.15A) miniature screw base, cylindrical bulb, clear glass. The pilot lamps are typically sold in packages of 10 at vintage radio swap meets and by the usual online sources (see Links).
Purchased at the Batavia Hamfest on July 29, 2006. Located on Route 98 about ½ mile south of Alexander, NY. Price was $40.00. This turned out to be a 100% original radio that appeared to have never been opened. Cabinet and controls were in excellent condition. Played quite well, and smelled good when it played too (must have been all that dust heating up inside). It was amazing that this 43 year old radio was in such good condition.

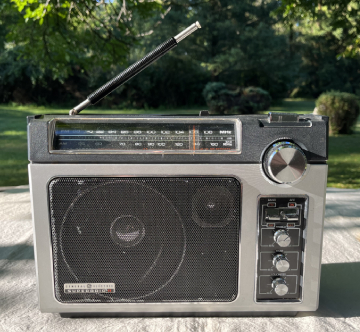

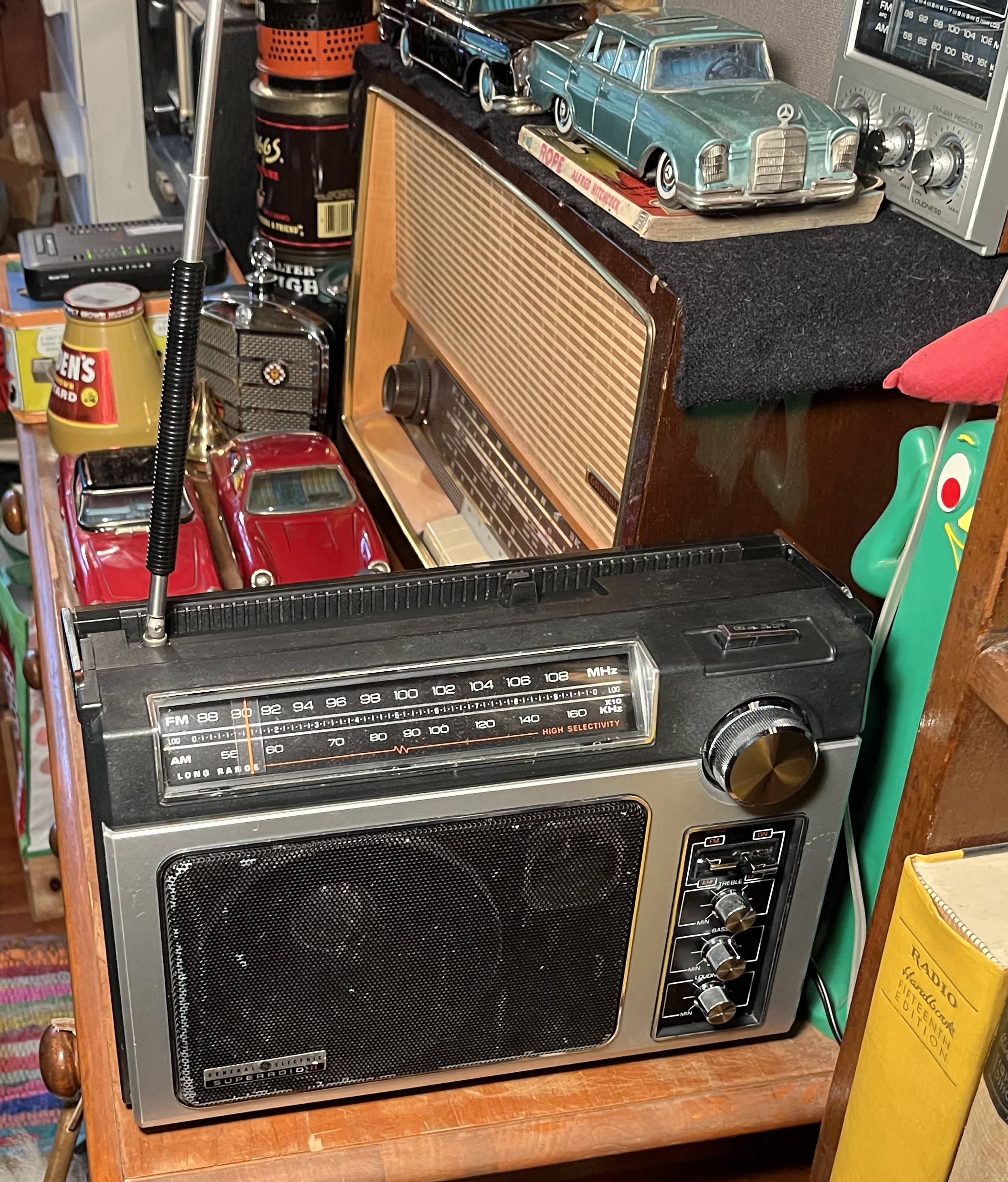

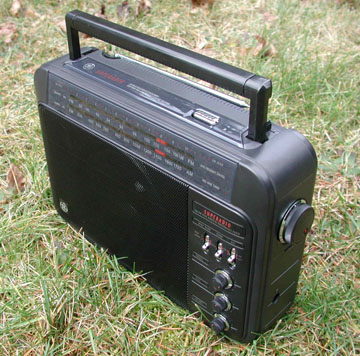

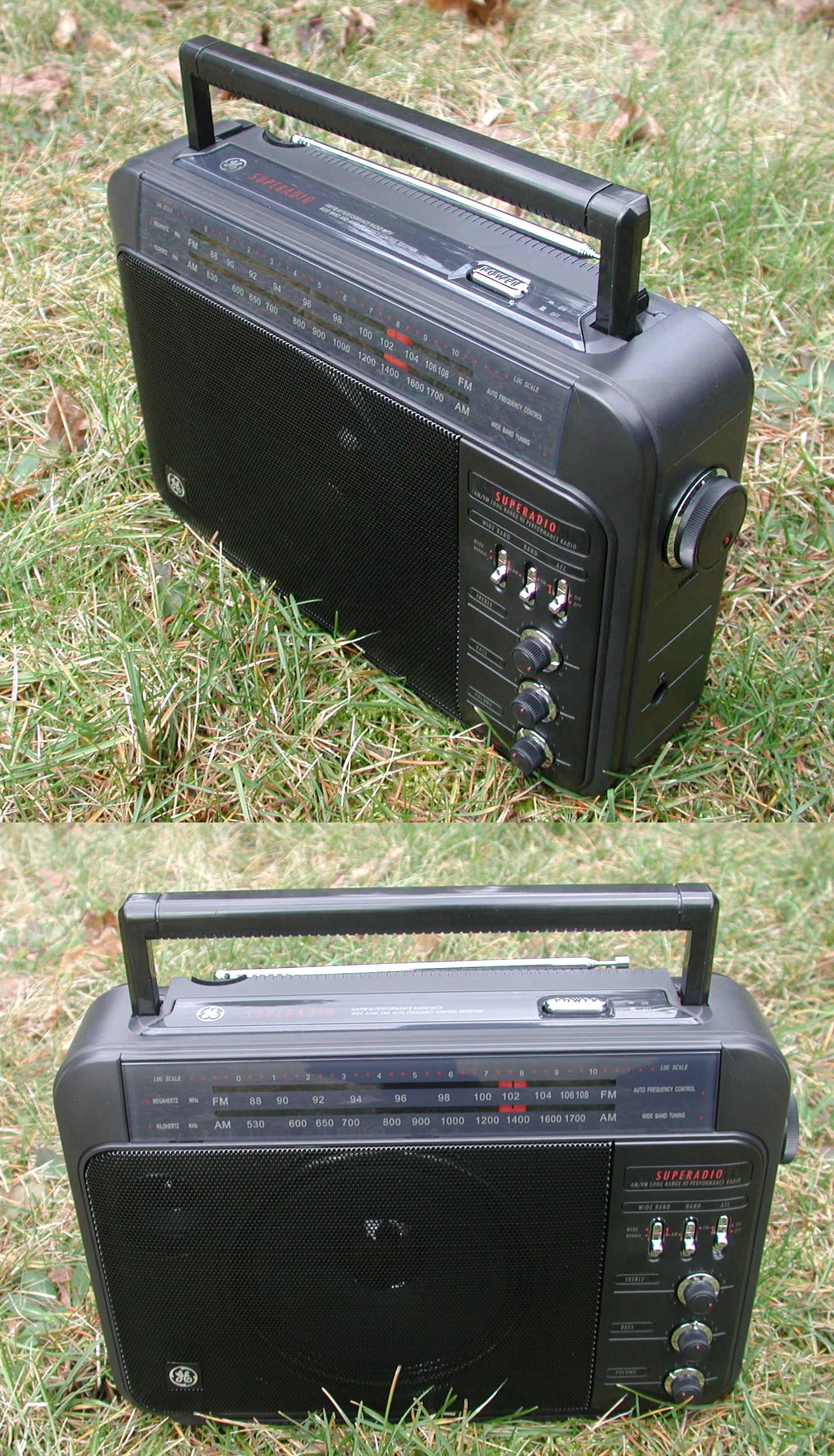

General Electric "Superadio III"
General Electric "Superadio III" Model 7-2887
Date / Factory Code: 5610 RA
Photo: January 6, 2007 (less than two weeks out of the box)
AM: 540 - 1700 kHz
FM: 88 - 108 MHz
The GE "Superadio III" is a portable, solid-state, analog, AM/FM, monaural radio, with above average AM reception, slide-rule tuning, and unconsciously outdated 1980s styling. It is a cult favorite among AM band DXers (long distance listeners) because the performance is high and the price is low. Even so, it gets mixed reviews (internet chat groups) because some owners have reported quality control issues. There are some useful online support networks, and technical web pages to aid the Superadio III owner, should questions or problems arise. Grove Enterprises (Monitoring Times) sells it for $54.95 (down from $59 six months ago) and once in a while, an eBay vendor will present the radio brand new, and in the box for $32, so it pays to shop around.
This GE Superadio III was purchased by my wife on September 13, 2006, at Old Forge Hardware in Old Forge, New York and given to me on December 25, 2006. My initial impression was that it appeared to be well constructed and "substantial", especially with the six "D" cells installed. In addition to its reputation for good AM reception (due in part to the internal, 200 mm, ferrite rod antenna), I also found it to be quite attractive because of its traditional, somewhat outdated styling. Happy to report that it passed the AM/FM "weak station test", but the act of tuning was more akin to an analog shortwave receiver, meaning, the tuning dial had to be turned back and forth with a certain amount of finesse to capture both the weak stations, and stations close to each other. The audio quality is acceptable, and there are separate bass and treble adjustments so it can be tailored to each listener and/or type of programming. Overall, the GE Superadio III seems like a good, traditional AM/FM radio for the money, with the ability to receive distant AM stations with relative ease. My only complaint was that it had minor, yet permanent scratches on the top, front, right corner when it was first removed from the protective plastic wrapping. The handlers at the factory need to be more careful.
GE Superadio III References
- e-Ham Review of the Superadio III: www.eham.net/reviews/detail/5301

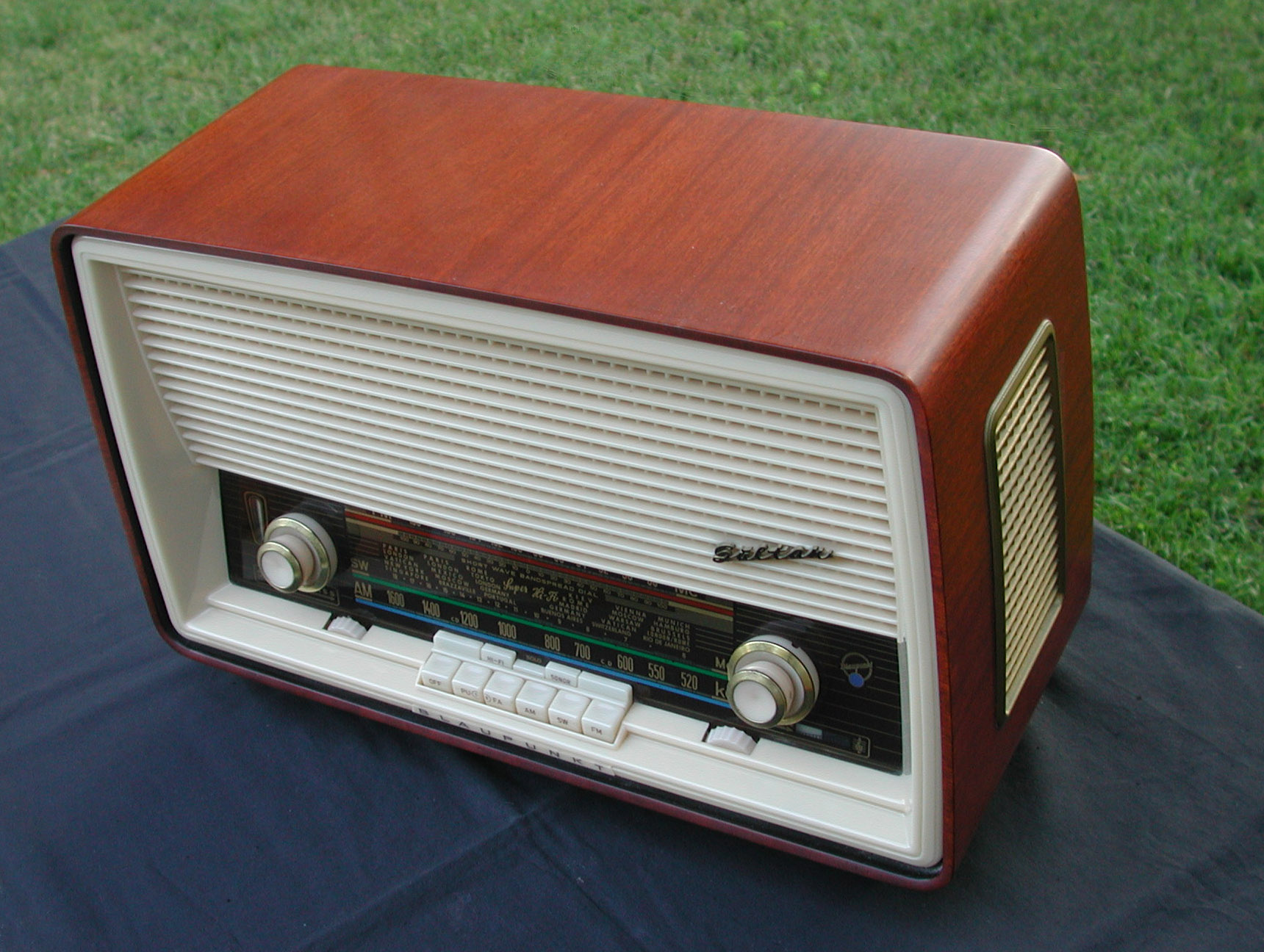

Blaupunkt (Germany) "Sultan" (Type 20203) AM/FM/SW table-top radio
Serial number: 001261
Years manufactured: 1960-1963
Photo: July 24, 2007
Valve (tube) line up: EABC80 (6AK8), ECC85 (6AQ8), ECH81 (6AJ8), EF89 (6DA6), EL84 (6BQ5), EM84 (6FG6) (magic eye)
Broadcast (AM): 520 - 1600 kHz
Shortwave Broadcast: 6 - 18 MHz
SW Bands (16 m, 19 m, 25 m, 31 m, 41 m, 49 m)
Frequency Modulated (FM): 88 - 108 MHz
Blaupunkt "Sultan" / Radio-Phono Fernseh Katalog 1960-61 (radio-phono television catalog 1960-1961). 4This radio was in fine, un-restored, original condition. Features included: classic early 1960s European styling, with a mahogany cabinet, plastic grille, annotated glass face-plate, and "piano key" push-buttons. The main speaker is at the front, while smaller electrostatic speakers are at each side of the cabinet (see photo). Separate bass and treble controls, and three push button switches ("HI-FI", "SOLO", "SONOR") for selecting different tonal contours. To facilitate better AM reception, the internal ferrite rod antenna can be rotated via a thumbwheel at the back of the unit. There are separate AM and FM tuning dials, and in shortwave mode, the FM tuning dial adjusts the shortwave band-spread.

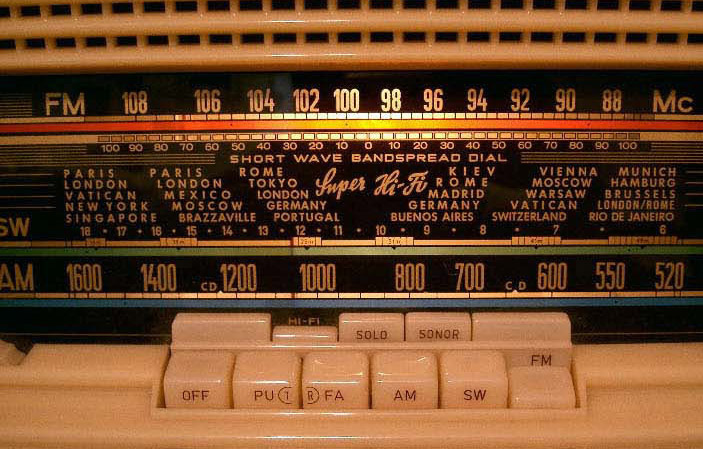

On close inspection, the tuning face-plate has the letters "CD" at the 740 kHz and 1240 kHz frequency marks. This stands for "Civil Defense" and was required by law on all radios made between circa 1953 and 1963 so that in case of local or national emergency, listeners would know where to tune for pertinent information. For details, search the web for CONELRAD (CONtrol of ELectromagnetic RADiation).
This radio actually found me! The previous owner, John Pavlica (W8WJW), visited this web page, and sent an e-mail to see if I was interested in purchasing it. It was originally owned by his great-aunt in Toledo, Ohio and had been in the family since new. After exchanging a few more messages, I decided to take a long weekend (July 20-22, 2007) and drive out to Toledo (with my wife) and take a closer look. At first glance, it looked nice, and performed quite well on the FM band. I was also able to get WBCQ on 7.415 MHz (shortwave station out of Monticello, Maine) without using an external antenna. How is that for sensitivity? The AM band reception was another story, as there was a lot of static noise on certain AM stations. It was not affecting all AM reception, just the most powerful signals. After scratching our heads, re-seating the tubes and doing a quick visual inspection, we finally decided to move the radio into "Studio K" (kitchen) to see if there was possibly some interference coming from the television or other electronic device in the living room. Sure enough, that solved the problem, and we agreed on a price of $175. In 1960-61 the original price was listed in the "Radio-Phono Fernseh Katalog" as 279 DM.
Years manufactured: 2003 (S350) - present (2007)
Photo: eBay screen capture from 2007
Broadcast (AM): 530 - 1710 kHz
Shortwave Broadcast: Continuous coverage from 3 to 28 MHz
SW Bands (11 m, 13 m, 15 m, 16 m, 19 m, 22 m, 25 m, 31 m, 41 m, 49 m, 60 m, 75m, 90 m)
Frequency Modulated (FM): 88 - 108 MHz
- Digital LCD tuning display
- Clock (12/24 hour) with alarm and automatic shut-off (sleep) functions
- Fine tuning control knob
- Rotary volume control
- RF gain control
- Separate bass and treble controls
- Low pass filter for AM and SW
- Stereo / mono switch
- Stereo earphone jack
- Left/Right line level outputs (RCA type jacks) (stereo in FM)
- Carrying handle (adjustable strap type)
- Telescoping antenna (5 section - 44" length) for FM and SW
- Internal Ferrite bar antenna for AM
- Jacks for supplementary AM/FM/SW antennas
- Powered by 4 D cells or 4 AA cells (batteries not included) or AC adaptor (included)
- The 11 meter band is also known as the "Citizens Band" or "C.B."
- There is no Beat Frequency Oscillator (BFO) or Single Side Band (SSB) capability. See Glossary for more detail.

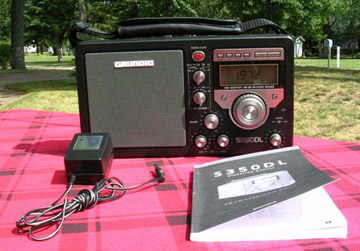

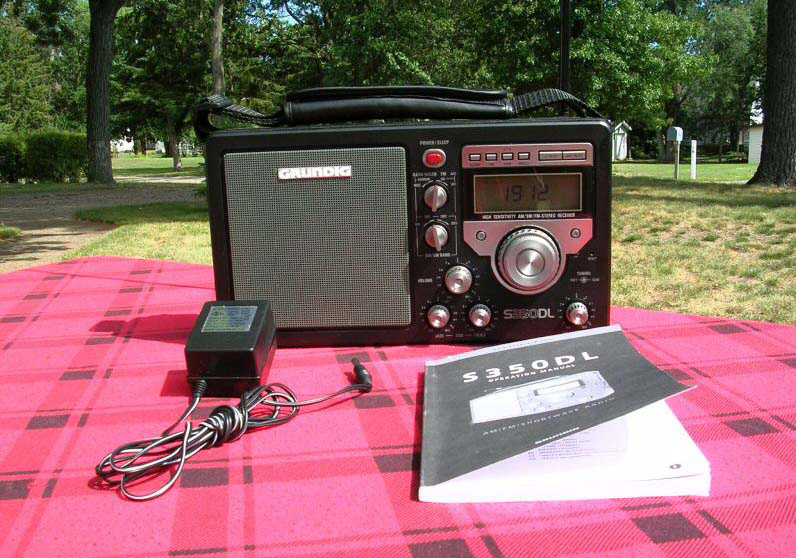

I got the Grundig "S350DL" at Radio Shack (Eastview Mall) on Saturday August 25, 2007 because of a SNAFU with returning a 350W AC/DC power inverter. They would only give me store credit, so I chose this radio. The price was $99. I had been watching this radio since it was originally released as the S350 (no "DL") a few years earlier. It enjoyed minimal respect in online forums, but it picked up the weaker signals in my region without difficulty, although the large tuning dial felt like it might come off in my hand at any moment.
Update / August 29, 2007: I had trouble with the tuning dial. It felt like the dial cord was loose, and it had a bit of wobble. Sometimes the frequency would change as soon as the dial was touched, and other times it would not do anything. This annoying problem seemed like a quality control issue, so I returned the radio just four days after getting it.
A Review of the "Grundig S350"
Years Produced: 1959-1962
Found the Zenith Trans-Oceanic model B600 on Thursday September 13, 2007 in a "junque" barn near Bar Harbor, Maine. Condition was undamaged and complete, but extremely dusty with some serious surface grime. Nothing a little soap and water could not remedy. The brass colored trim was in nice condition. There were only two apparent physical problems with the radio and those were: 01) a broken tuning dial cord, and 02) the red "ladder line" to the Wave Magnet antenna (for broadcast bands) had been nibbled by mice. Fortunately, there were no leaking batteries inside, but there were remnants of a mouse nest (copious sunflower seeds and floor carpeting) in the battery compartment. I discovered more wire damage and a missing tube (50A1) later. The barn mice really missed this radio when it was gone.
The B600 Trans-Oceanic includes a nice fold-down log book and a telescoping, seven section, 52 inch (132 cm) Waverod antenna (for shortwave) with a fluted cap and retaining clip. The historical significance of the model B600 is that it was the last portable vacuum tube radio made in the USA The model B600 was produced from 1959-1962 and was a high-end radio in its day.
The history of the evolution of the Trans-Oceanic is interesting. There is a book called, "The Zenith Trans-Oceanic - The Royalty of Radios" that is an excellent chronicle. Authors: John H. Bryant, AIA and Harold N. Cones, Ph.D. See the Essential Vintage Radio Books and Literature page for details.
- Model: B600
- Chassis: 6A40
- Zenith Service Manual: Vol. 7 - Page 73
- Sams Photofact: Set 381 - Folder 16
- Cabinet style: "Black Stag"
- Original cost: $139.95
- Dimensions: 17" x 8" x 11", Weight: 17 lbs. (without battery)
Seven switchable bands provide the following coverage:
Standard Broadcast: 540 - 1600 kHz
Weather Band: 4.0 - 9.0 MHz
Weather Band: 2.0 - 4.0 MHZ
16 meter Band: 17.40 - 18.20 MHz
19 meter Band: 14.80 - 15.60 MHz
25 meter Band: 11.40 - 12.20 MHz
31 meter Band: 9.30 - 9.90 MHz
Valve (tube) Lineup
1U4 (RF amplifier)
1U4 (IF amplifier)
1L6 (Converter) (rare tube)
1U5 (Detector / AVC / First audio)
3V4 (Audio output)
50A1 (Current regulator / ballast) (rare tube)
Hallicrafters (USA) "Model S-40" Receiver
Years Produced: 1946-1948
Band 1 (broadcast): 550 - 1700 kHz
Band 2 (shortwave): 1.68 - 5.4 MHz
Band 3 (shortwave): 5.3 - 15.8 MHz
Band 4 (shortwave): 15.3 - 44 MHz
Manufactured in the USA by the Hallicrafters Company of Chicago, Illinois.
Tuning dial pilot lamps (two required) are Type # 44 (bayonet base, 6.3 V, 0.25 A, bead color: blue). The pilot lamps are typically sold in packages of 10 at vintage radio swap meets and by the usual online sources (see Links). Ordered a box of 10 Type # 44 lamps from AES (Antique Electronic Supply) on October 2, 2007. Price was $2.95.
I discovered this antique receiver on Saturday September 29, 2007, at the Elmira Hamfest. I was attracted by its mysterious, and slightly sinister (if possible) appearance. It looked like it was from an old science-fiction movie. The real mystery of course, was how well it performed. The asking price was $145. The selling price was $125, manuals not included. Vendors were John (KF2JQ) and his wife, a familiar team at regional hamfests and radio swap meets. Overall, the cosmetic condition was superior, and they assured me it worked well and had decent audio. So, I took the leap of faith and bought my first Hallicrafters set.
Incidentally, the 8" Terrestrial Globe on top of the Hallicrafters "S-40" was manufactured by the Geo. F. Cram Company of Indianapolis, Indiana. It is a Model "80", and includes the country of Italian East Africa, which only existed from 1936-1941. It also includes shortwave radio stations around the globe and their call signs. The symbol for the shortwave stations is a red antenna tower.
E.F. Johnson (USA) "Viking Valiant"
Purchased at the annual RARA auction on Friday November 2, 2007View the Johnson "Viking Valiant" Restoration Page
Bands: 160 - 10 Meters
Input Power: 200W-AM, 275W-CW
Final Tubes: 3 each 6146 parallel
Modulator: 2 each 6146 push-pull

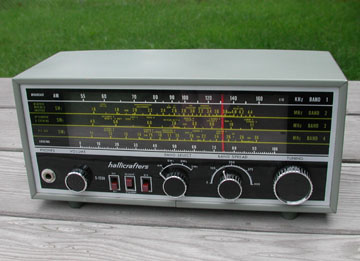

Hallicrafters (Japan* / 1967-1969) model "S-120A" / Serial Number: 120100002095
Four-band, solid-state receiver with nine transistors
Tuning Range: 550 kHz to 30 MHz
- Band 1 "AM" = 550 kHz to 1.600 MHz
- Band 2 "SW1" = 1.6 MHz to 4.4 MHz
- Band 3 "SW2" = 4.4 MHz to 11.5 MHz
- Band 4 "SW3" = 11.5 MHz to 30 MHz
Front Controls: Phone Jack, Volume, On/Off, Receive/Standby, BFO, Band Switch, Band Spread, Main Tuning. The rear has an auxiliary 12 V DC power socket.
- IF (Intermediate Frequency) = 455 kHz
- Dimensions 13.5" wide, 5 7/8" high, 8.75" depth
- Weight: 11.75 lbs.
- Made in Japan
- Production years 1967 - 1969
Purchased this little gem on Saturday August 9, 2008 at the Keuka Lake Amateur Radio Association (KLARA) Hamfest in Howard, NY. The asking price was $40, but I got it for $25. Back in the shack, it worked beautifully. The cosmetic and electrical condition were both excellent.
*Hallicrafters was originally based in Chicago, but production moved to Japan in the late 1960s after the Halligan family sold the business in 1966. The company finally closed their doors in 1975.
Plastic replica (1:18 scale) of a 1963-1964 Cadillac convertible. Made in Hong Kong (China). Date unknown. The automobile itself was 19 feet (228 inches) long. This solid state AM-only novelty radio measures 11.75 inches long, which makes it approximately 1:18 scale. The radio controls (On-Off-Volume, and Tuning) are on the undercarriage. The radio is powered by a 9 V battery. It works well and the model is in presentable condition. The front and rear license plates read, "CAD-1." Color is dark gray, with chrome accents, black interior, and a blue tinted windshield. It has clear plastic headlights and red plastic taillights. Price was $8.00 at the Elmira Hamfest on September 27, 2008.

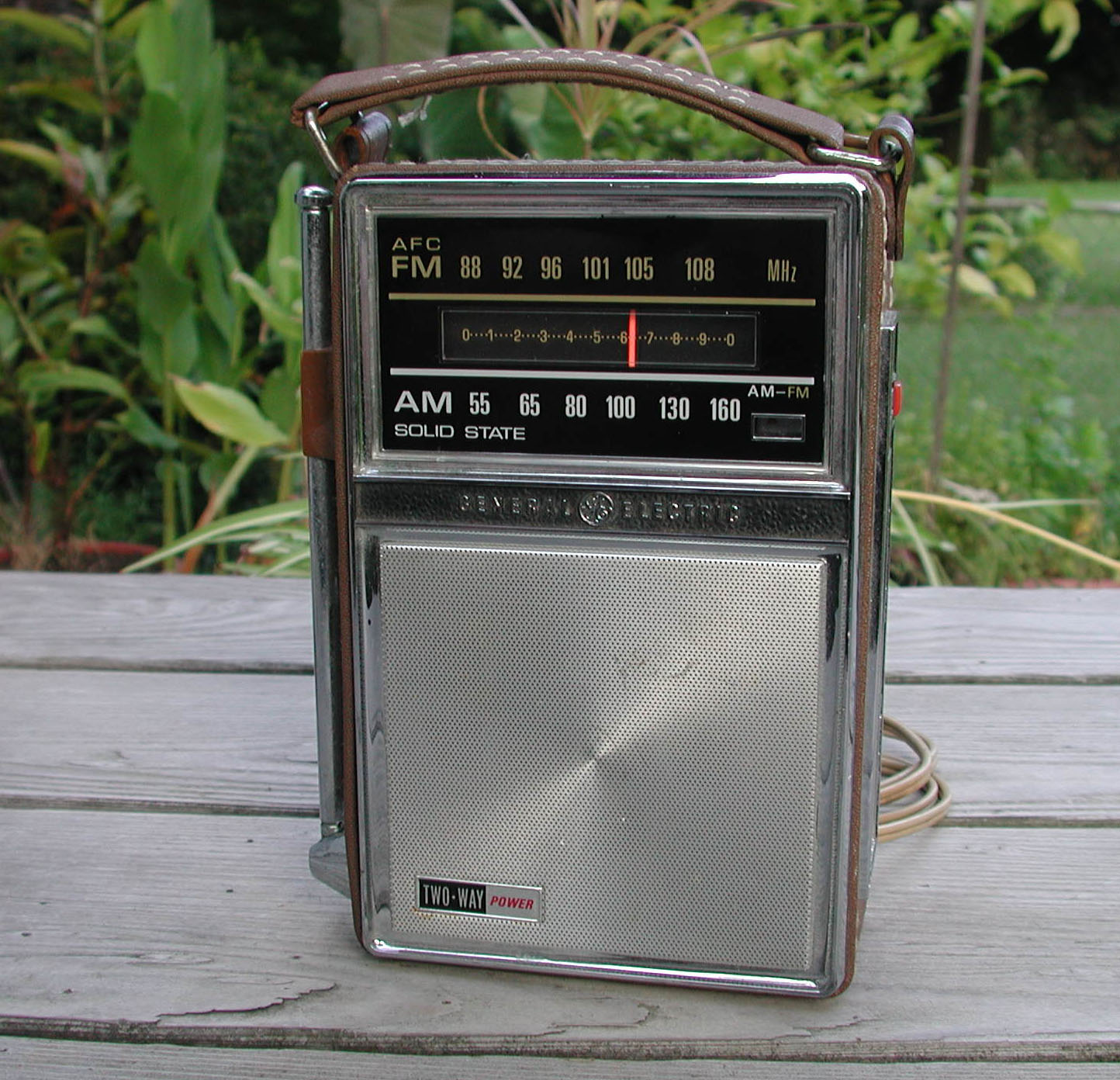

AM/FM AC/DC portable radio
AM: 550 kHz - 1600 kHz
FM: 88 MHz - 108 MHz
This GE radio was the same model as my sister's when we were both in our teens. I used her radio quite a lot when we were at our grandparent's cottage on Conesus Lake in the mid 1970s. It came with me on motorboat and fishing trips when I would anchor the boats and soak up the sun, and generally kill time. I found this example at the Antique Wireless Association (AWA) Spring Meet on the first Saturday of May 2008 for the price of $1.00. It worked fine, and the battery compartment was clean.

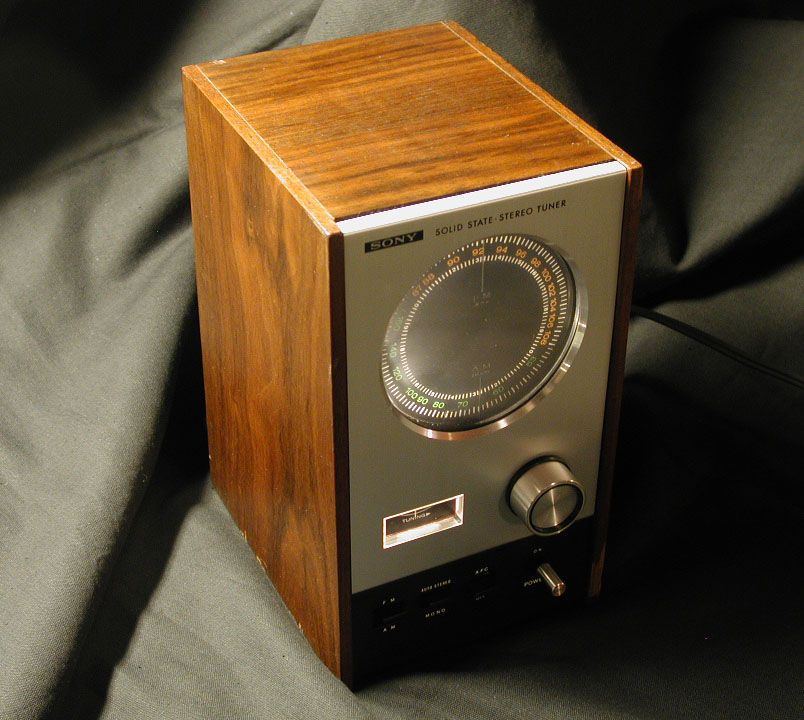

Sony "ST-80W" AM/FM Stereo Tuner (Japan / circa 1973)
FM: 87 - 108 MHz
AM: 530 - 1605 kHz
- Analog tuning
- Solid state design (16 transistors, 19 diodes)
- Intermediate Frequency (IF): 10.7 MHz (FM), 455 kHz (AM)
- Analog, backlit tuning dial (Type 40 lamp)
- Rear mounted Line Out sockets (RCA)
- Rear mounted variable output level controls (L and R)
- Mono / Stereo selector switch
- AFC On / Off selector switch
- Adjustable, ferrite, AM antenna
- Antenna connections: FM (300 Ω), AM, and ground
- Rear mounted "fixed level" DIN, record output
- Walnut veneer cabinet
- Weighs 2.6 kg (5 lbs., 12 oz.)
Purchased this AM/FM stereo tuner Saturday September 27, 2008 at the Elmira Hamfest for $2.00. Made by Sony (Japan) circa 1973 with an original price tag of $90.00. It was a bit yellowed, presumably from tobacco smoke, and neither the tuning dial lamp (Type 50) or stereo indicator lamp were working. It is "only" a tuner, and it originally had a separate amplifier, and matching speakers. The tuner can be used with a standard pair of amplified computer speakers with good results. See the ST-80W Repair Page for details.

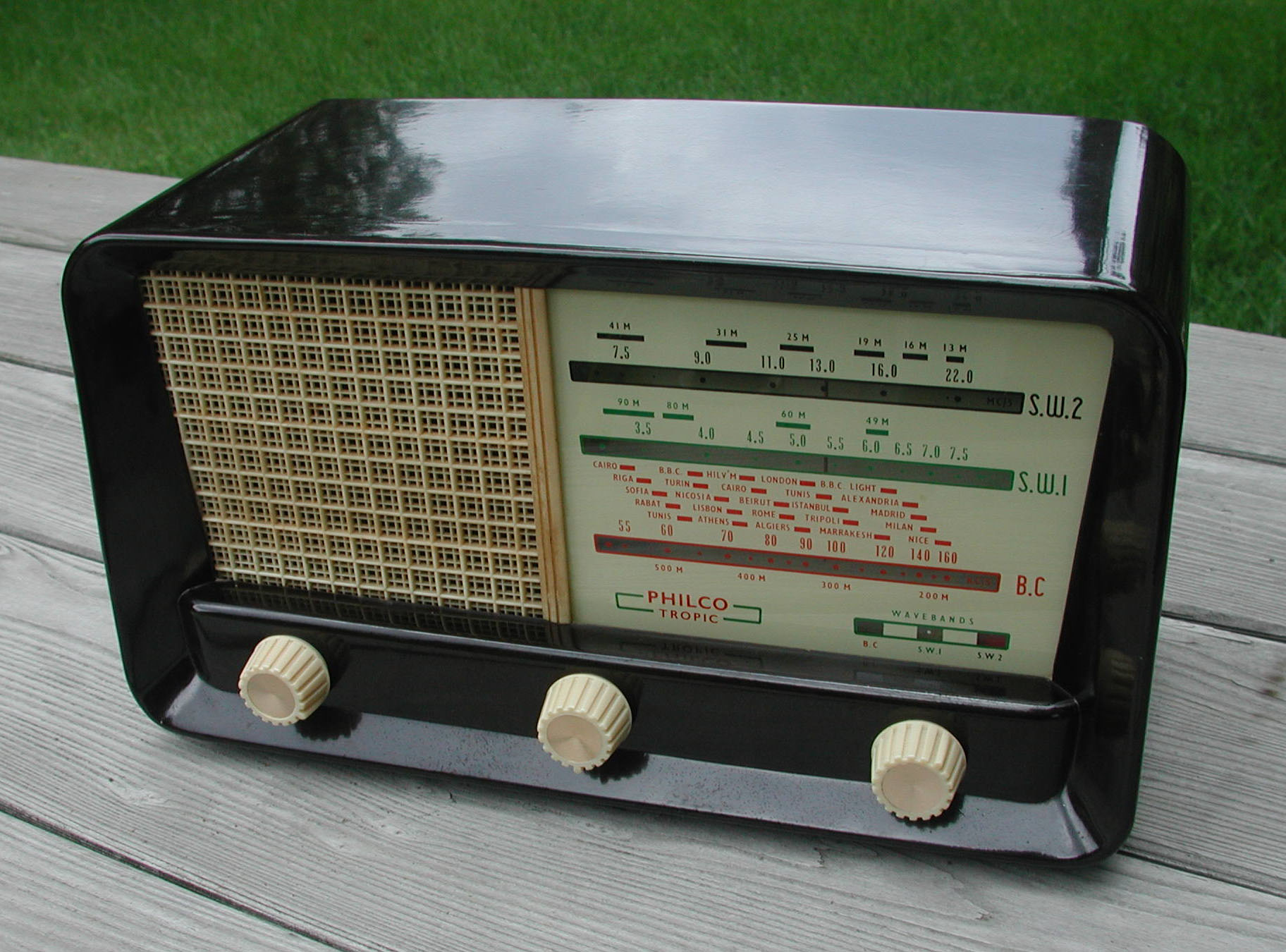

Overseas Model B.3101 B (B3101B) Code 123
Manufacturer: Philco Radio & Television Corporation of Great Britain, Ltd.
Purchased at the Antique Wireless Association (AWA) Conference August 22, 2009 for $40. It worked on all bands, but may need some new tubes and/or other care (capacitor and resistor replacement). Otherwise, it was in excellent cosmetic condition.
Update: April 29, 2022 - this Philco has worked fine since purchasing in 2009 without needing any service or part replacements.
Service Information and Schematic (.pdf for Philco model B23101)
The Philco Tropic B3101B was an export version of the British domestic model B23101. The .pdf file is the service information for the B23101, which includes some details about the export version. It is unlikely that a B3101 schematic will be found. The schematic is drawn in the British fashion, which you may find strange at first. Although it was made by British Philco, most models of this manufacturer were loosely based on typical US designs. So hopefully you should not have too much difficulty working on this set. Within Britain, only domestic (non export) schematics tend to have survived, which makes sense as dealers would have only held schematics for sets they were likely to encounter.
August 28, 2009
Battery Tester (pocket volt meter) made by Leader
Working condition. Purchased for $10 on August 22, 2009, at the Antique Wireless Association (AWA) Conference. Pre-1927 radios used three batteries. This would have been an essential tool if you owned a radio at that time.
This is definitely a radio battery tester. It is commonly called a watch case battery tester, for obvious reasons. This version will test "B" batteries of 22.5 volts and 45 volts. When new, they were quite accurate, but did not age well. As such, today they vary greatly in functionality. They also tested the battery at no load so the user should have known to test the battery under actual conditions with current being drawn by the radio in use. They are quite collectible as they were manufactured by many different companies in the mid to late 1920s. As such, it is fun to collect many different varieties and they do not require an arm and a leg to acquire. Enjoy your nice example.
Ed Gable (K2MP)
August 26, 2009
Volt meter (0 - 3 volts)
Made in Germany by Kiesewetter
Purchased this meter at the Elmira Hamfest on September 28, 2009. The vendor was originally asking for something crazy like $75, but I did some haggling, and finally got it for the "walking away price" of $20. It also had a nice leather case with a belt loop. One screw was floating around inside. In the spring of 2011, I removed the crystal and put the screw back in place.
On the meter display, "Knopf" means "knob" or "control knob”, and "gedr." stands for "gedrückt", or “pushed” (push down). So, if the button is pushed, there is a load of 15 Ω in parallel with the meter. The battery voltage can now be measured with a load. Take an Ohmmeter and measure between the contacts. Normally, there will be some hundred Ω measured, and with the knob pushed, only 15 Ω. The "K" stands for Kiesewetter; a manufacturer of tube testers and metering instruments.
July 26, 2011: Thanks to Heribert Jung, Dietmar Rudolph, and Reiner Scholz for the explanation of the text on the meter display.
Photo: October 24, 2009 / Nikon Coolpix 990

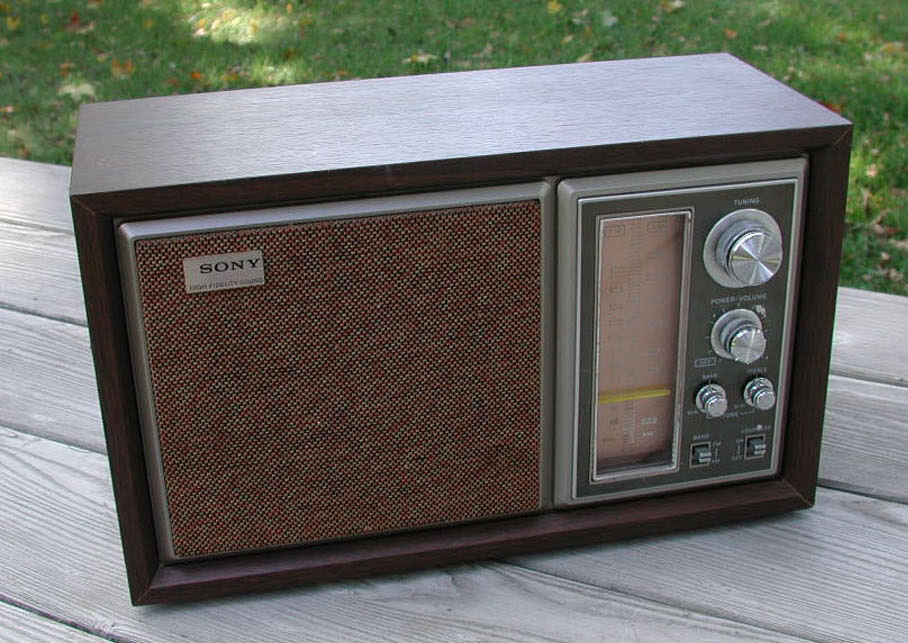

Sony Corporation (Japan) "ICF-9550W" FM/AM 2 Band Radio
Serial Number: 144383 (sticker on bottom)
Made in Taiwan / Republic of China (1976)
FM: 87.5 - 108 MHz (IF 10.7 MHz)
AM: 530 - 1605 kHz (IF 455 kHz)

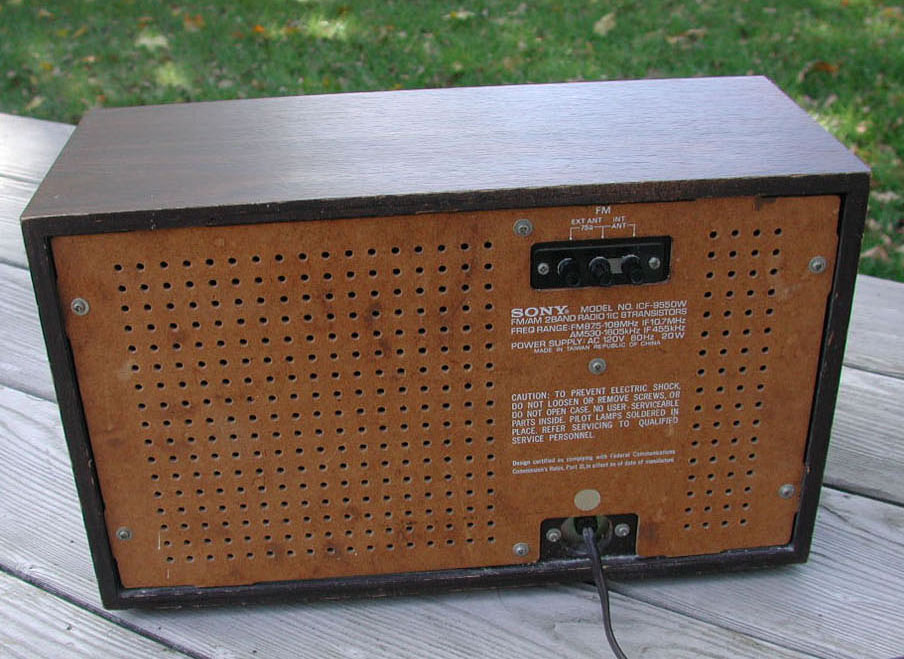

|Front View||Rear View||Dial Light||Service Manual
|Photos: October 17, 2009 / Nikon Coolpix 990|
Purchase Date: October 17, 2009
Location: Ithaca Antique Center / 1607 Trumansburg Road / Ithaca, NY 14850
Price: $23.76 ($22 plus $1.76 tax)
Walnut veneer, Wood cabinet, Off-On-Volume control knob, Frequency tuning dial, AM/FM band switch, Loudness switch (boosts the bass about 9 dB at low volume), Separate bass and treble controls, Illuminated tuning dial, External antenna connection points. Performed well; with rich, full, transistorized sound! All controls were static-free and operated smoothly. Needed only minor detailing with Murphy's Oil Soap and a toothbrush.
The Sony ICF-9550W exudes contemporary 1970s styling. The package includes a handsome wood cabinet covered by a walnut veneer. The controls have a highly polished chrome-like finish that was typical of the era. By this time, many radios were made entirely of plastic and looked cheap, so the Sony model ICF-9550W represents the tail-end of the heavy, "living-room-furniture" period styling.
The ICF-9550W is a pre-Walkman Sony product. It was produced just prior to a wave of trendy personalized electronic audio devices that began flooding the market. The forthcoming products would ultimately change the soundscape of contemporary culture, and turn the quaint 1970s table-top radio styling into a faded memory. Other radios on this page attest to the robust design, classic styling and durability of transistor and integrated circuit (IC) radios imported from Japan in the 1970s. When this radio was produced in 1976, it would be another two years before the ubiquitous Sony Walkman launched the beginning of what would become the personal electronics revolution, which continues to this day (witness the iPod, iPad, iPhone, the multipurpose cell phone, the PDA, Blackberry, etc.).
These radios were made in high volume, and are still largely overlooked as true collectibles. They turn up at flea markets, antique stores and garage sales, but are no longer being made, so supplies are limited!
The main Service Manual (9-950-345-81) is 16 pages, dated 1976, and contains technical specifications and component values. There are two supplements to the main manual; both have the same reference number (9-950-345-81). The first supplement (12 pages) is dated December 1976, and contains electrical adjustments for serial number 127,501 and later (applies to this radio, having serial number 144383). The second supplement (eight pages) is dated July 1977, and contains an exploded parts diagram, and more. The manuals (printed in Japan on very thin paper) were an eBay purchase on October 24, 2009. Price: $10.00 plus $3.00 shipping. They arrived November 2, 2009 from a vendor in Salt Lake City, Utah.

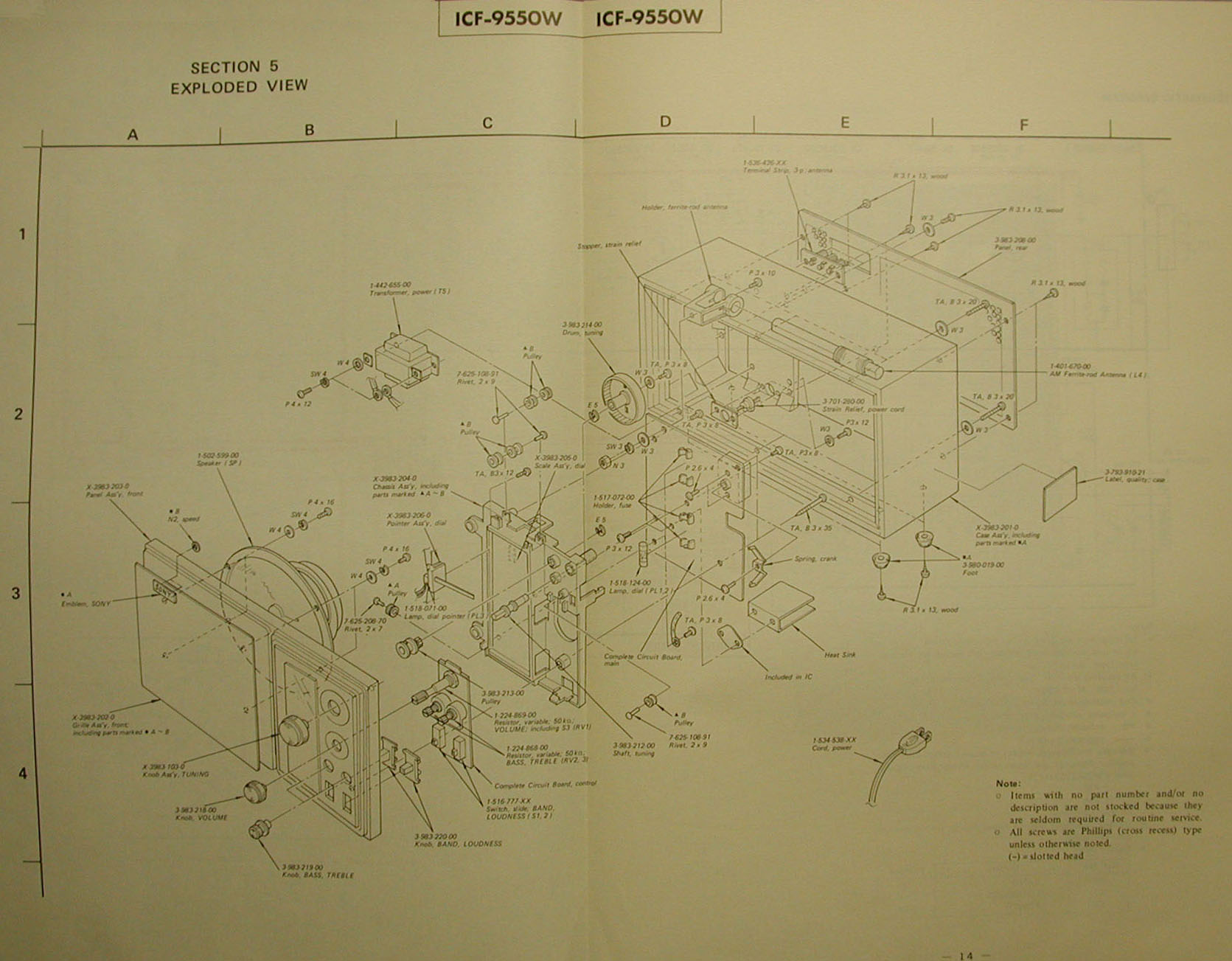

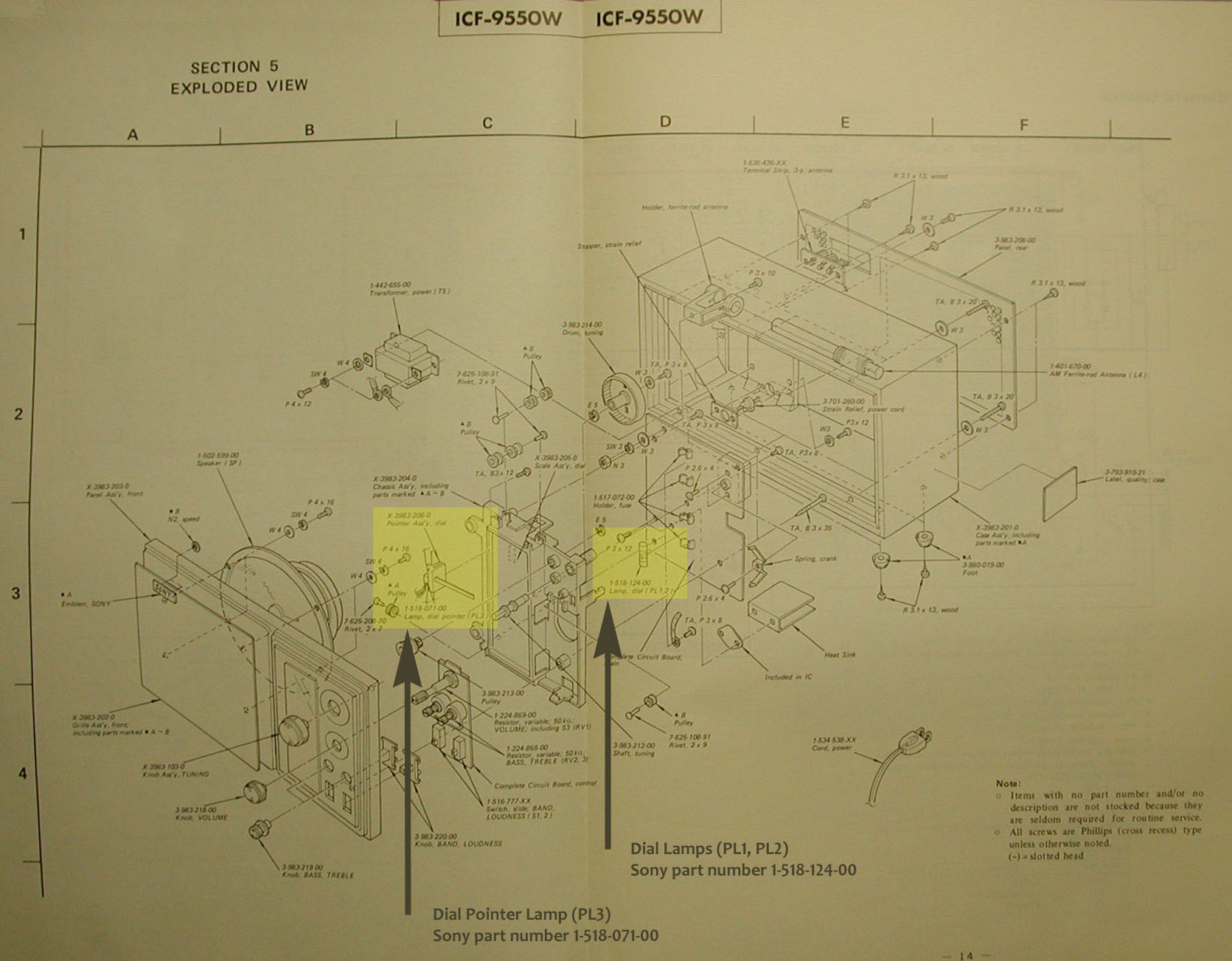

Parts Diagram / Dial Lamps
Update / October 6, 2014: In response to reader, Mike (KD8LUI), I referenced the main Service Manual to find the type of dial lamps used. According to the ICF-9550W Manual, the dial lamps (PL1, PL2) appear to be in-line, "fuse" style (Sony part number 1-518-124-00), and the Dial Pointer lamp (PL3) is listed as Sony part number 1-518-071-00, but the illustration precludes positive identification. It may be integrated with the dial pointer assembly. No lamp/bulb values or cross references were provided in the documentation.

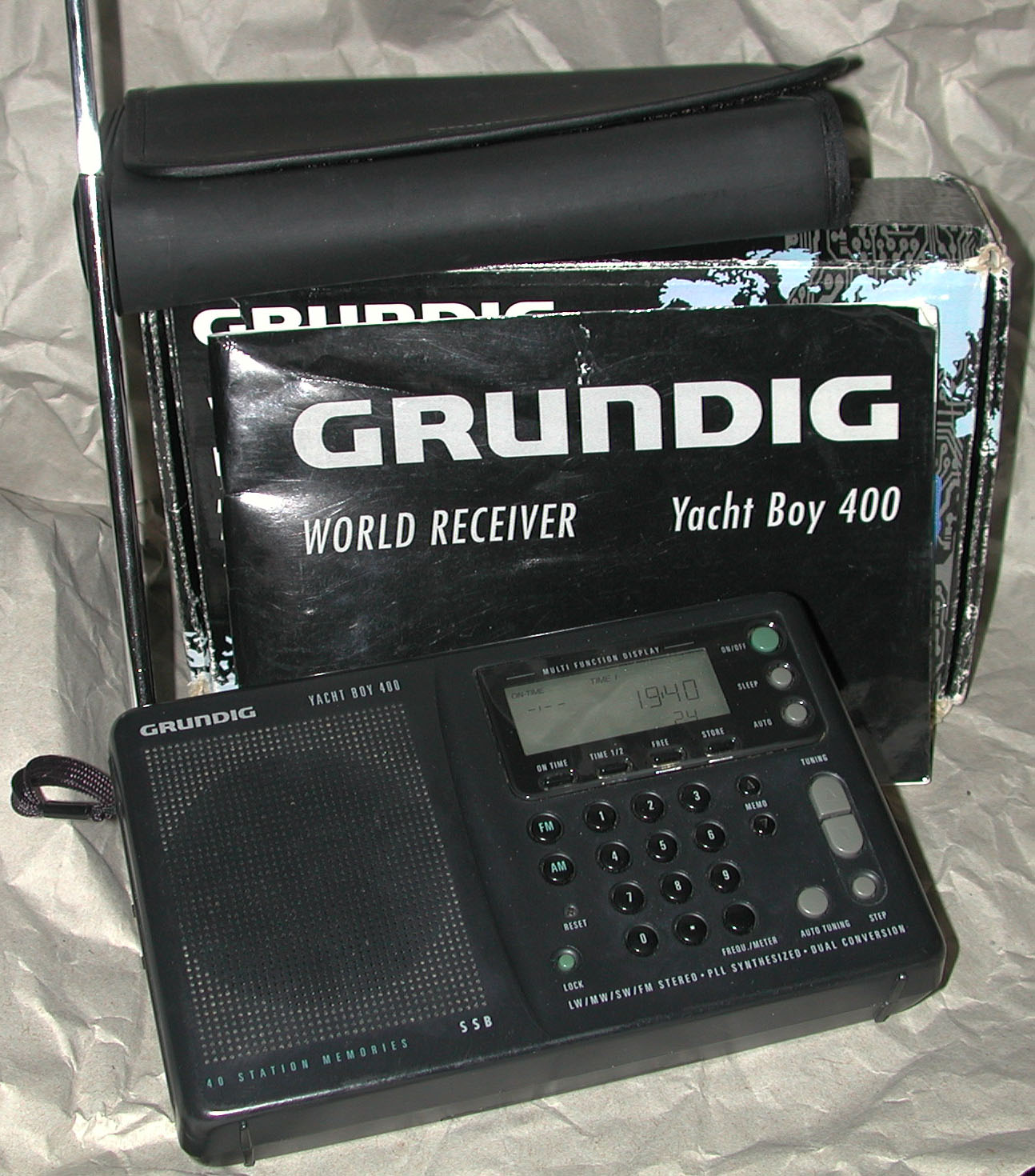

Photo: March 8, 2010 / Nikon Coolpix 990
Grundig "Yacht Boy 400" G RD 30-51
Serial Number 326171 / Color: Black Grey (Schwarzgrau)
General Coverage Portable Communications Receiver
FM: 87.5 - 108 MHz
SW: 1.711 - 30 MHz
MW: 520 - 1710 kHz
LW: 144 - 353 MHz
On Saturday March 6, 2010, during the 23rd Annual "SWL Fest" in Kulpsville, Pennsylvania, I bid on this "original incarnation" of the Grundig "Yacht Boy 400" (as distinguished from the later, "PE" [Professional Edition] model). The "Yacht Boy" name has been used by Grundig for decades, and the model 400 went through several iterations throughout its six-year production run (1993-1999). The SWL Festival (a.k.a. "International Broadcasting Conference") was sponsored by the North American Shortwave Association (NASWA). After making several bids in the silent auction, I ended up paying $45 for the radio, which included an AC adapter (by SONY; obviously not OEM equipment), the original vinyl storage pouch, the original box, and owner’s manual. It was all in fairly good condition. During the lively auction, it was plugged into the AC mains adapter, and working fine. The package would have originally included a "Shortwave Listening Guide", compact antenna, and "Passport" guide to shortwave stations, but they were missing.
After the auction was over, I walked a couple of blocks to the Walgreen’s convenience store to get six AA size batteries. Back in the solitude of my hotel room, I read the owner's manual, and checked out all the functions, and it seemed to be working quite well. I was able to pick up the various pirate radio stations that were operating "in the vicinity" on 6.900 MHz, 6.926 MHz, 89.1 MHz, 89.7 MHz, etc.
I also learned the radio was donated by NASWA member Joe Buch (N2JB / joseph.buch ]at[ dol.net) who said he purchased it from Universal Radio as a re-conditioned unit. There was indeed a sticker on the box that indicated the original speaker did not work.
Update: On Friday May 20, 2011, at the Dayton Hamvention I found a copy of the "Passport to the World of Shortwave Broadcasting Stations", the "Shortwave Listening Guide", and the Grundig compact wire antenna. It was part of a complete set (including radio, box, AC adapter, owner's manual), but the vendor was willing to separate these three pieces for $20. This turned out to be my most extravagant purchase at the 2011 Dayton Hamvention.
Photo: March 6, 2010 (camera: Sprint / LG "Rumor" cellphone)
This photo shows the probable location of one of the pirate stations (WBNY and others) that were operating during the SWL Winterfest. Note the Jolly Roger, and the long wire (just barely visible) coming out the window. The random wire was terminated in a pine tree across the parking lot. There was also what appeared to be a dipole set up on the roof.

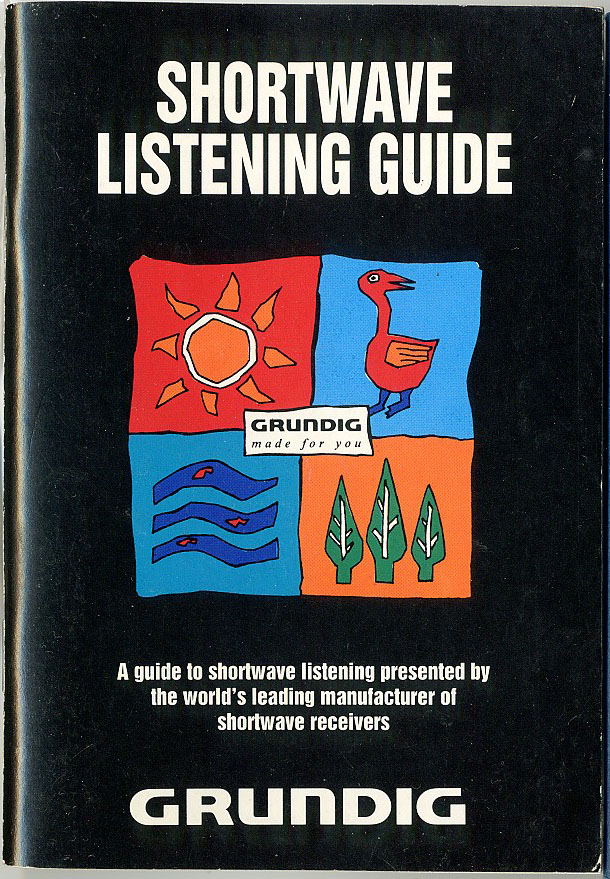

References for the Grundig Yacht Boy 400
- Owner's Manual (Model 400PE)
- DXing.com / www.dxing.com/rx/yb400.htm
- Universal Radio / www.universal-radio.com/CATALOG/portable/0040.html

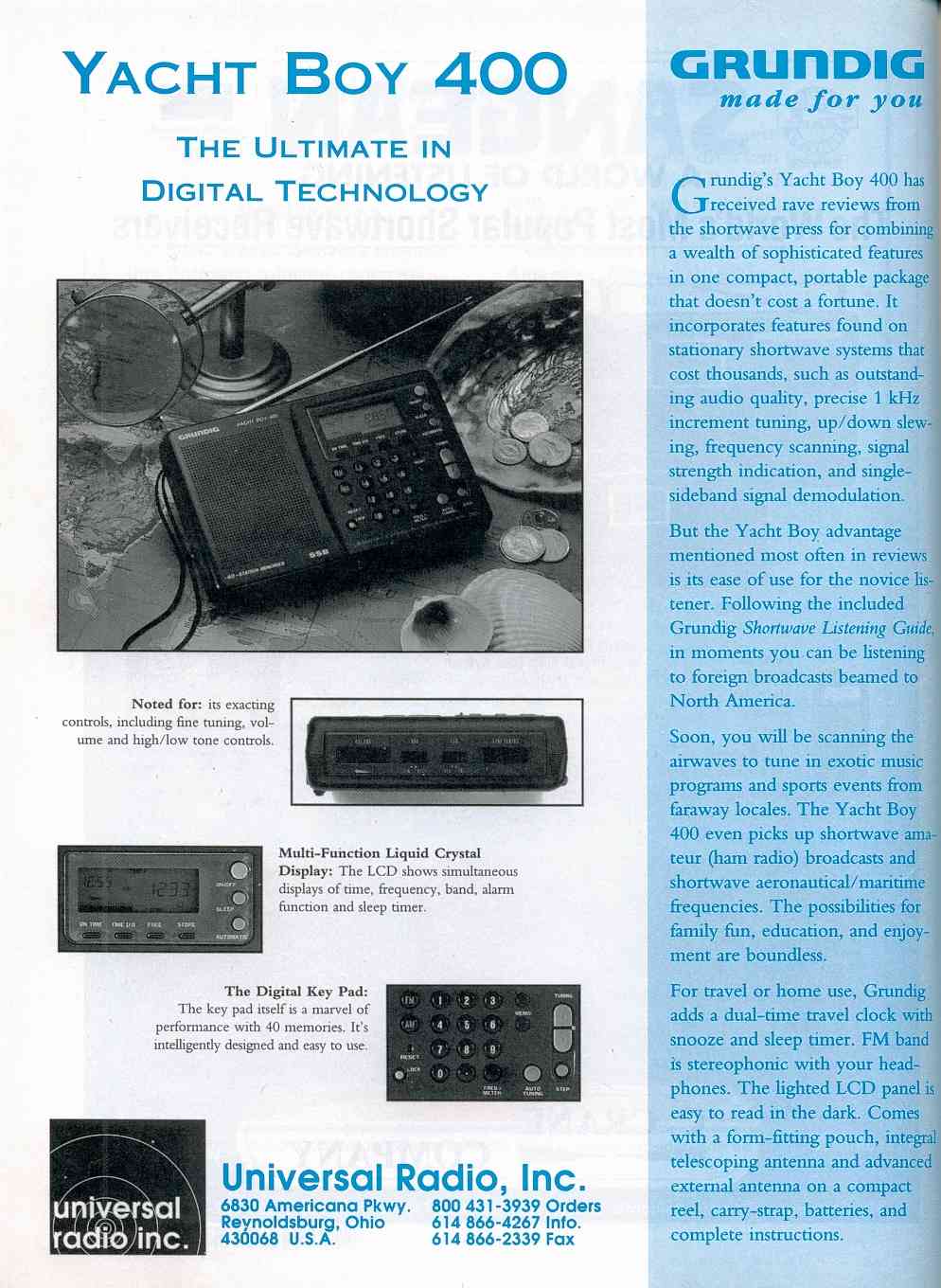

- Magazine Advertisement

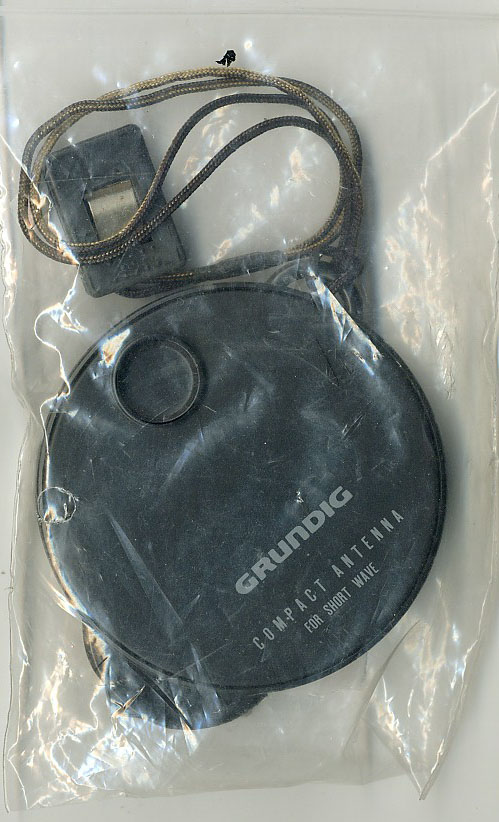

Grundig "Yacht Boy 400" General Coverage Portable Communications Receiver
Made In: People's Republic (PR) of China 1993-1999
Voltages: 9 VDC 6 x AA batteries
Coverage: 144 - 30000 kHz with FM Stereo (with headphones or ear buds)
Readout: Digital LCD
Modes: AM/SSB Selectivity: Two-Position
Circuit: Dual Conversion
Physical: dimensions: 8 x 5 x 1.5", weight: 1.4 lbs
Features: Mini Headphone Jack, S-Indicator, Battery Indicator, Tone Switch, 40 Memories, Dial Lamp, Sleep, FM Stereo, Lock, Local/DX Switch, Keypad, Antenna Jack, Tuning Steps: 1, 9, 10 kHz (MW), 24 Hour Clock-Timer
Optional Accessories: AC adapter model "400ACA". 9 V, negative tip. Available from Universal Radio (as of March 8, 2010) as order number 3672 for $14.95.
Comments: The original Yacht Boy 400 sold for $170-250 when new and included a vinyl storage pouch, wind-up (spool) antenna, stereo earplugs, an owner's manual and a shortwave listening guide. The AC adapter (model "400ACA") was optional. The later model YB-400 PE "Professional Edition" ($200-$270 when new) featured a titanium colored case and was supplied with the Grundig AC adapter. Both units have enjoyed wide acceptance.

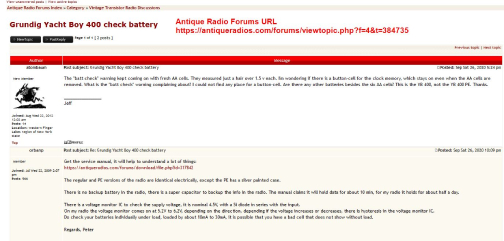

Update / September 26, 2020: The "Batt Check" kept coming on with fresh AA cells. Read the Antique Radios Forum question. Was there a separate cell for the clock memory? If not, why was it complaining about new AA cells that measured just over 1.5 v each?
The "batt check" warning kept coming on with fresh AA cells. They measured just a hair over 1.5 v each. I'm wondering if there is a button-cell for the clock memory, which stays on even when the AA cells are removed. What is the "batt check" warning complaining about? I could not find any place for a button-cell. Are there any other batteries besides the six AA cells? This is the YB 400, not the YB 400 PE.

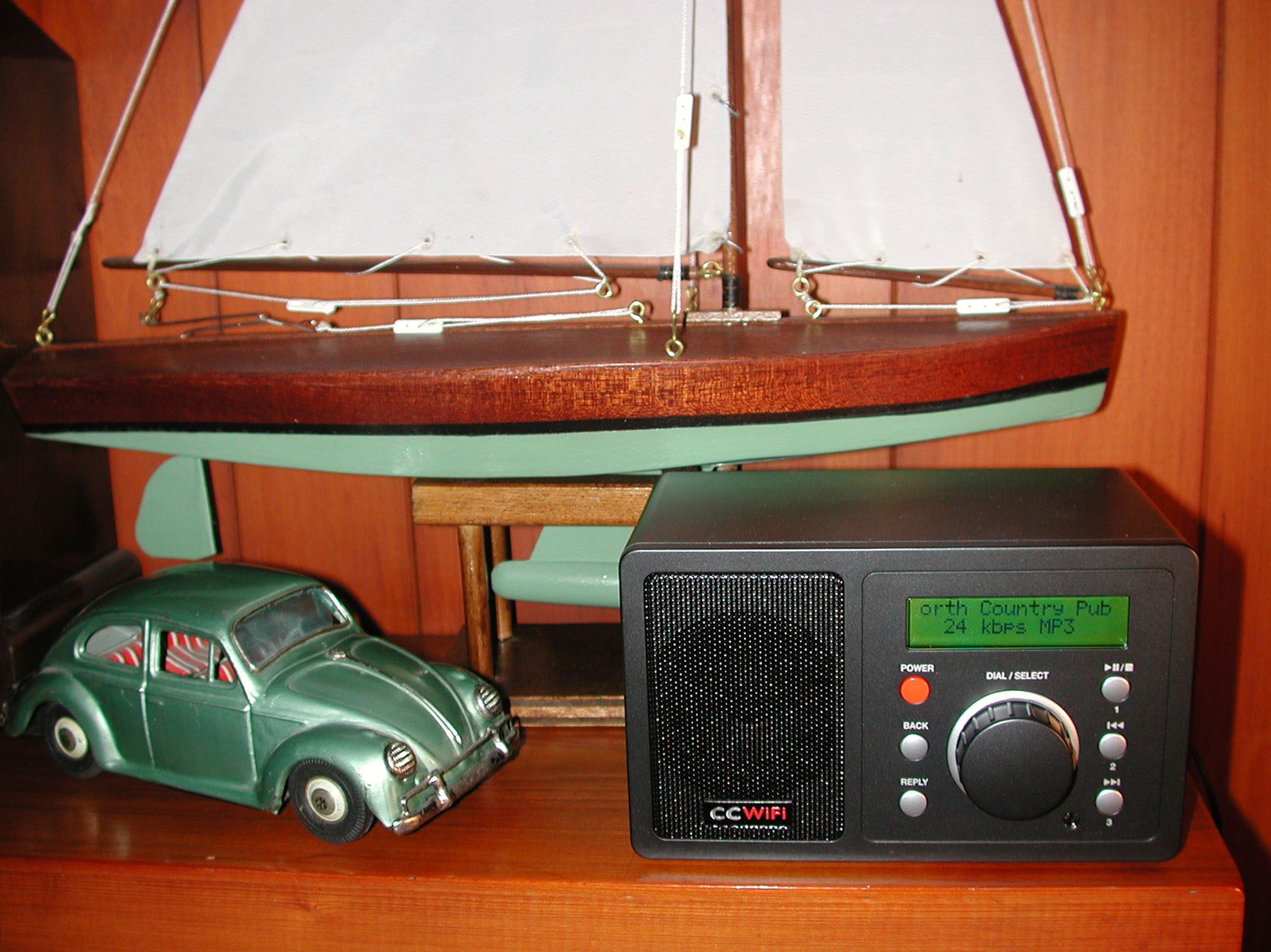

Photo: August 7, 2010 / Nikon Coolpix 990
Station on LCD display: North Country Public Radio (serves northern NY, and the Adirondack region)
Stock Photo (includes remote control)
|C. Crane CC Wi-Fi internet Radio (China)|
Sunday July 18, 2010
Took the plunge into the world of Wi-Fi radio by ordering the C. Crane "CC Wi-Fi internet Radio" from www.amazon.com. Saved $29.96 from the C. Crane list price ($139.95). The Amazon vendor (J&R Music and Computer World [www.jr.com]) was asking $109.99 (plus $8.55 shipping and $8.89 tax). I had a balance on a couple of Amazon gift certificates, which knocked the package down to $100.03.
With increasing numbers of shortwave radio transmitters going dark, a Wi-Fi radio is a logical alternative for listening to favorite global programming. On Saturday July 17, 2010, I had the opportunity to enjoy a friend’s C. Crane Wi-Fi radio, and although the audio quality was not superb (the best stream-rate was around 128 kilobytes/s), the ability to select stations from around the world based on location or genre made it seem attractive.
Radio arrived July 22, 1010. Opened the box, plugged it in, and it found and connected to my modem in about five seconds. I was listening to stations from around the world in two minutes.
- Owner's Manual
- Reciva portal: was "reciva.com", but it was shut down in September 2021.
The C. Crane Wi-Fi radio uses the Reciva portal for its stations. Reciva is a UK-based company that makes modules for most of the Wi-Fi internet radios that were on sale in 2010, and it also provides an internet radio portal that lists over 10,000 stations and over 20,000 on-demand streams. One good feature of the Reciva portal is that it allows you to search by location as well as by genre. However, one downside of Reciva's portal is that it does not list the bit rate levels the stations are using, so it is not that great for discovering new stations, as it does not provide any indication of what the audio quality is likely to be.
September 2021: Unfortunately, the Reciva portal was shut down, and all C. Crane Wi-Fi radios were rendered useless. Any other Wi-Fi radios that were also using the Reciva portal were also kaput.
Photo: August 20, 2010 / Nikon Coolpix 990
FM: 87.5 - 108 MHz
AM: 535 - 1605 kHz
Citizens Band (CB): 26.8 - 27.8 MHz
VHF FM: 145 - 174 MHz
Beacon Band (LW): 150 - 400 kHz
This intriguing radio was in the flea market at the Antique Wireless Association (AWA) Conference on August 19, 2010. Price was $50, and included the original (copyright 1977) manual, which gave a good indication of the year of manufacture. I am still trying to figure out what to do with it. Maybe now I need to buy a boat? It is powered by either an external 13.6 V DC source (11.0 V minimum, 16.0 V maximum), or eight C cells. Interesting to note the radio includes the “Citizens Band” due to it being manufactured during the height of the 1970s C.B. craze.
Photo: August 20, 2010 / Nikon Coolpix 990

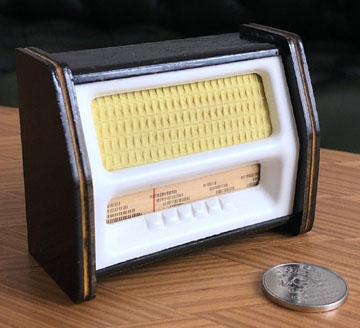

Miniature replica of a 1950s European style table-top radio. Purchased for $5.00 on August 20, 2010 at the Antique Wireless Association (AWA) Conference flea market. The vendor (Walter Buffinton / Willimantic, Connecticut) had an interesting collection of miniature radios made from tin, lead, and wood – some dating from pre-WWII. As of May 3, 2022, Walt Buffinton's Facebook page had numerous photos of his miniature radio dioramas, which are worth checking out.
The car is a 1:18 scale Mercedes-Benz Type W111 220Sb "fintail" (heckflosse) sedan. The color is black, with a red and amber striped (lithographed) interior. This tinplate vehicle has an opening trunk lid that reveals two levers – one is used to raise either the left or right side clockwork motor-driven "jacks" under the car, which simulates changing a tire. The other trunk lever toggles the side of the car that gets raised. The wheels come off by unscrewing the hubcaps. This toy was distributed in 1962 by Shioji Shoten & Co. Ltd. (a.k.a. SSS) of Osaka, Japan.

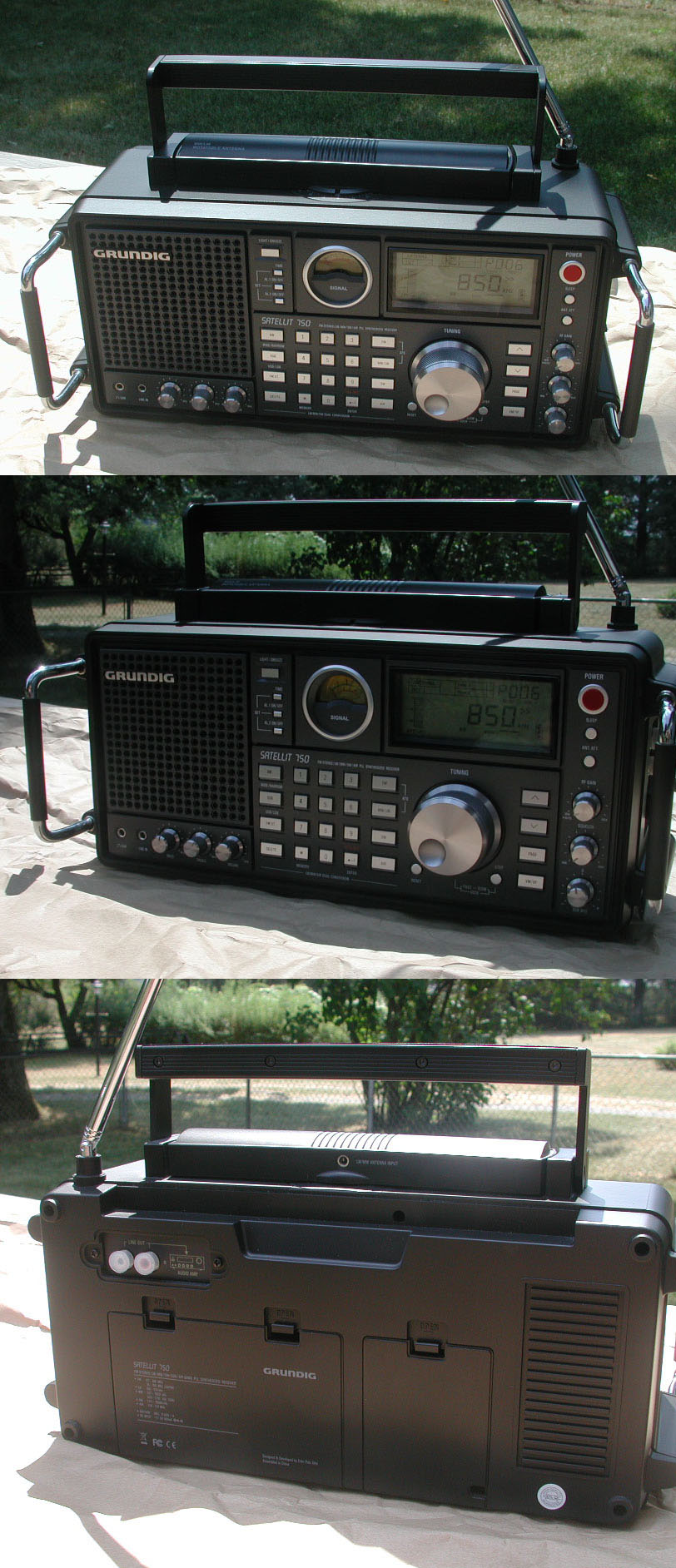

Photo: July 23, 2011 / Nikon Coolpix 990

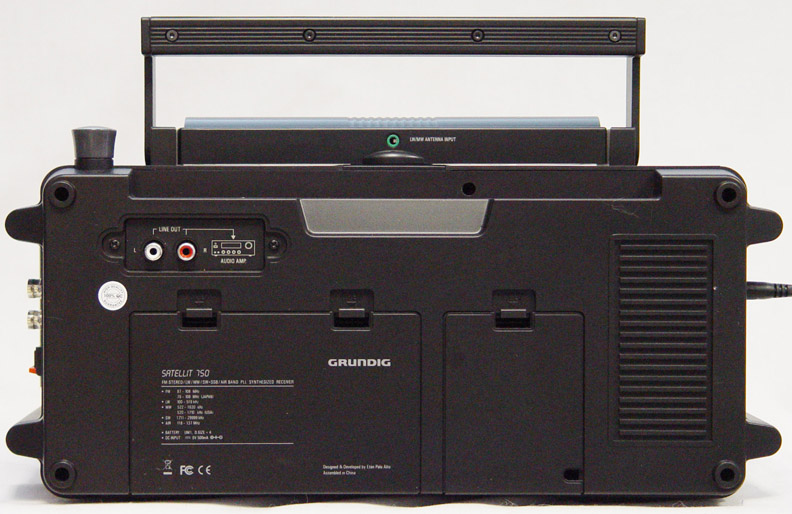

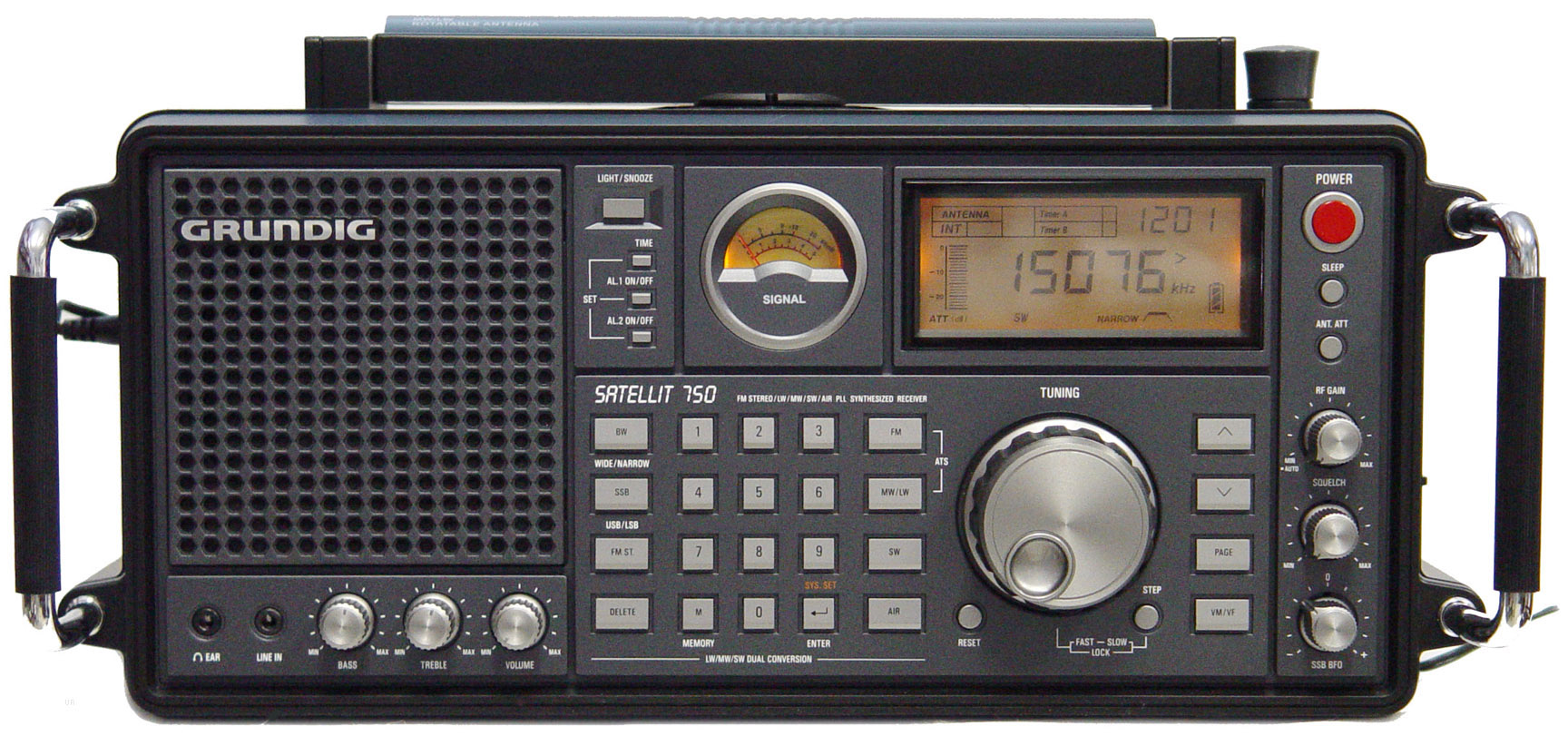

Grundig "Satellit 750" (a.k.a. Tecsun "S-2000", Eton "Elite 750")
Universal Radio: Grundig Satellit 750 www.universal-radio.com/catalog/portable/0750.html
Universal Radio: Eton Elite 750 https://www.universal-radio.com/catalog/portable/1750.html
Owner's Manual: Grundig_Satellit_750_Manual.pdf
The Grundig "Satellit 750" was originally scheduled for release in March 2008, but did not appear until early August of that year. The initial price was $299. The Chinese company, Tecsun manufactured this radio (known in China as the Tecsun "S-2000"), and it was distributed for Grundig in America by Eton. It had great retro looks, but unfortunately, first technical impressions in the online (Yahoo!) chat group were unfavorable. I monitored the traffic on the chat group for two years before deciding the bugs had been worked out.
Received this radio as a gift from my wife on November 16, 2010 to acknowledge my graduation from Rochester Institute of Technology (R.I.T.). Universal Radio also shipped a new Grundig "G6" radio as a promotional deal. Photos and details of both to follow.
Waited to opened the box until "Black Friday" November 26, 2010 – the day after Thanksgiving – because it was the first time I was able to enjoying the process of reading the manual while also becoming familiar with its features and controls. This was an event to be savored!
Contrary to the cavalcade of naysayers in the Yahoo! Group, the radio was quite impressive. The controls were tight, and there was an overall feeling of top-notch quality. There were no disappointments whatsoever. I was surprised the owner's manual did not include a diagram of the front, rear, and side panels. Programming the radio was straight-forward while referencing the instructions.
One gripe might be that the radio does not detect which shortwave band it is on, and automatically set the correct sideband (for listening to SSB amateur radio traffic). Instead, the operator needs to have some knowledge of which shortwave bands use the Upper Side Band (USB) versus the Lower Side Band (LSB). If the operator has no prior knowledge of the band plan, they have a 50-50 chance at getting it right the first time. Of course, since the radio does not automatically detect and set this parameter, it allows the operator to listen to conversations by amateurs who are not following the band plan.
- If the frequency is 10 MHz or higher, use the USB setting
- If the frequency is lower than 10 MHz (eg. 40m, 80m, 160m) use the LSB setting
|REMEMBER: To locate and scan through saved memory/frequency channels,
press the PAGE button and turn the tuning dial to "Page 0".
Then toggle the "VM/VF" button (Memory/VFO) to the Memory
mode, and use the tuning dial to scan the saved memory
The Tecsun-created Owner's Manual seems to suggest that "V" is intended to mean "mode", thus VF = frequency mode, and VM = memory mode.
Due to its great retro styling, performance, and ease of use, the Grundig Satellit 750 stands to become a another highly sought-after Grundig classic in years to come.

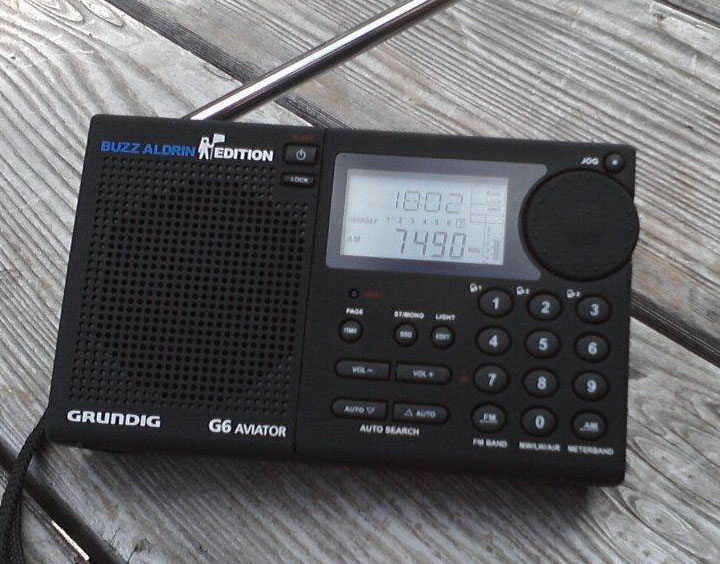

Grundig "G6 Aviator" (Buzz Aldrin Edition)
Grundig (assembled in China) "G6 Aviator" tuned to WBCQ 7.490 MHz
FM: 87.5 - 108.1 MHz
AM: 150 - 29999 kHz
Air: 117 - 137 MHz
Owner's Manual: Grundig_G6_Aviator Manual.pdf
- Dual conversion
- Digital, PLL tuning
- Tuning via Thumb-wheel or direct keypad entry
- BFO (for tuning SSB signals)
- 700 memories (100 pages [0 - 99] with seven memories per page)
- Illuminated (backlit) LCD dial light
- Powered by two AA cells
- AC adapter
- Black carry pouch
- Ear buds (stereo output capable with line out)
XYL Kitchen Radio Review (# 20120808)
Grundig "G6 Aviator" (Buzz Aldrin Edition)
"It's a versatile little radio"
August 8, 2012: Finally "unboxed" the Grundig "G6 Aviator" – nearly two years after receiving it (promotional incentive with the Satellit 750). It compared favorably to other similar radios in Youtube videos, so I broke it out from the bottom drawer. The Owner's Manual (.pdf) facilitated quick programming (it was different from other radios, so the documentation had to be good). The package included a black, vinyl storage pouch, ear buds, AC adapter, and a hard copy of the Owner's Manual. Powered by two AA cells (not included). Extra points for having an illuminated LCD display, and a thumb-wheel tuning dial. Reception was good on all bands. It was still being sold new at that time, and the going price was $89.95 – so getting it for free was not a bad deal.
Update / September 22, 2020: Went to use the radio, and discovered the original rubberized surface had become soft and sticky. Not only that, but one of the AA batteries had leaked (last changed in 2012) and was stuck inside. Eventually coaxed it out, but unfortunately the sticky rubberized surface made this radio unusable.
Six transistor / AM-band / novelty radio
Tuning Range: 540 kHz - 1600 kHz
Made in Japan (circa 1975-1985?)
This novelty radio came by way of Dennis Schauber of Harrisburg, North Carolina. It was found in an antique shop in Black Mountain, NC, and I received it on December 25, 2010. The grill is modeled after Mercedes-Benz passenger vehicles from circa 1953 to 1968. Rotating the star clock-wise turns the radio on, and adjusts the volume. The frequency is selected by turning the dial directly below the star (see photo on far right). The grille badges include the text, "INTERNATIONAL", and "GRAND PRIX"
The back of the radio features a jack for headphones or ear plug. There is also an oval sticker with, "Stellar® / US REG'D TRADE MARK". Other markings include, "6 TRANSISTOR" / "MADE IN JAPAN" / "NO. 803". The bottom has three green, felt, table protectors. It is powered by a 9 V battery. Performance is similar to other novelty radios. Overall condition is excellent.
Additional Photos of 1958 Blaupunkt "Granada deluxe 3D 2330"
July 1, 2011, 10:01 a.m. (UTC - 4)
July 1, 2011, 10:04 a.m. (UTC - 4)

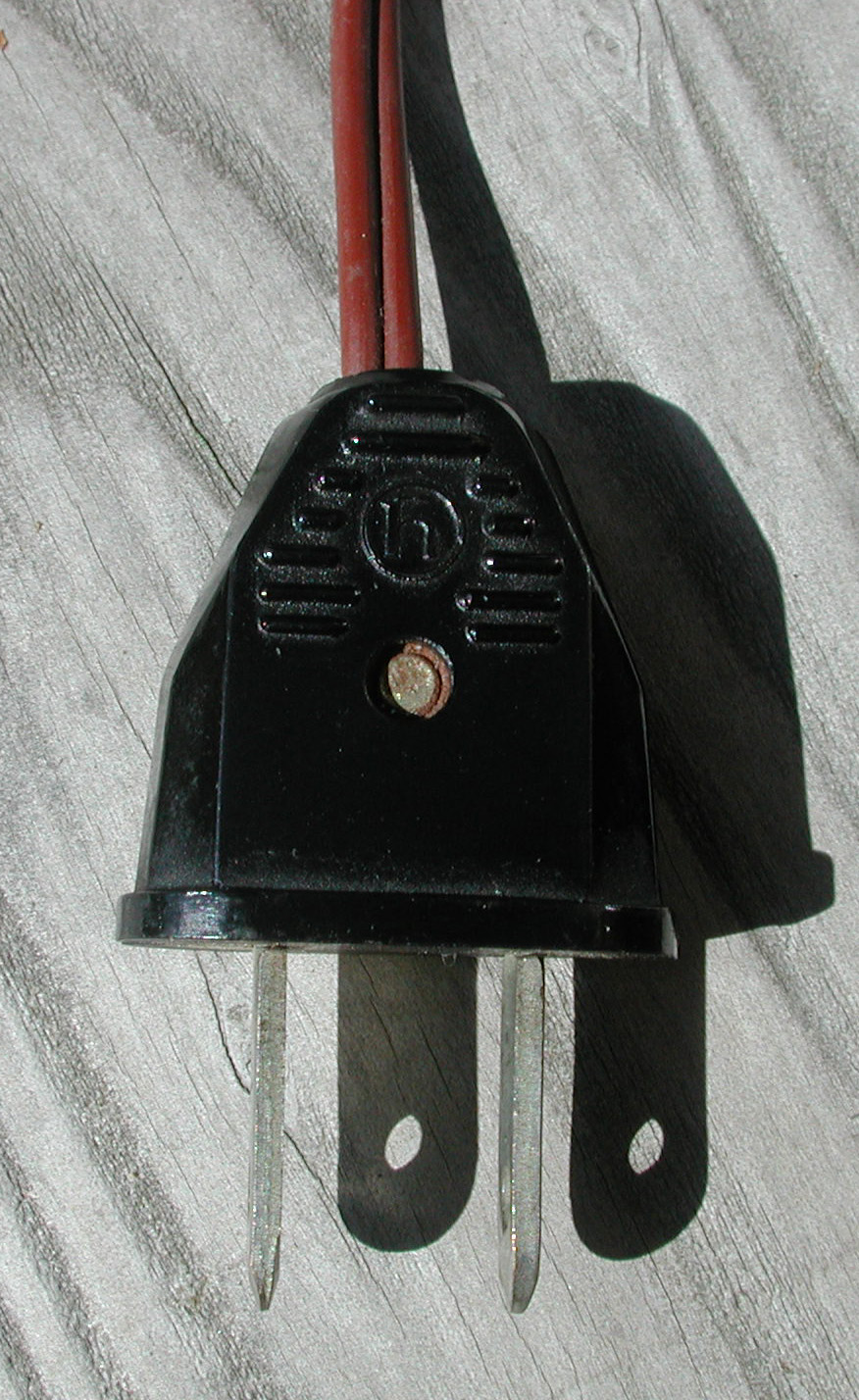

Lower case "h" for Hirschmann
I noticed this Teutonic beauty at Radio Daze on Tuesday, June 28, 2011 during a nice morning bike ride. I got thinking about it and decided to inquire. The next day, I ended up bringing my Zenith Trans-Oceanic “B600” to Radio Daze (to re-assemble), and bought this fine example of mid-20th century craftsmanship at the same time. The purchase date of the Blaupunkt was June 29, 2011 and the price was $235.00 plus $18.80 tax for a grand total of $253.80.
It had accumulated a layer of grime, which needed some attention, but all bands worked well, and nothing was broken or missing. Surprisingly, most of the grime cleaned up with some spray-on furniture polish, a dust cloth, and a little elbow grease. I hit it again later with my patented slurry of "rottenstone" and paraffin oil (search elsewhere on this page for details), which was topped off with an application of buffer's polish.
In my experience, finding a good sounding vintage Blaupunkt table-top radio in excellent cosmetic condition is somewhat unusual, so this was an exciting discovery. The grilles were often made of plastic, and can be easily damaged over time. The piano style push-button selector switches are also plastic, and are not as durable as they appear. Fortunately, this radio was all original right down to the power cord featuring the lower case "h" on the plug, which signified the Hirschmann brand – most commonly known as the German supplier of traditional and automatic (motorized) antennas on Mercedes-Benz automobiles.
The reference to "3D" (in the model name) may refer to the loudspeakers at each end of the cabinet as well as the one in front. This was pretty high-end stuff back in the day.

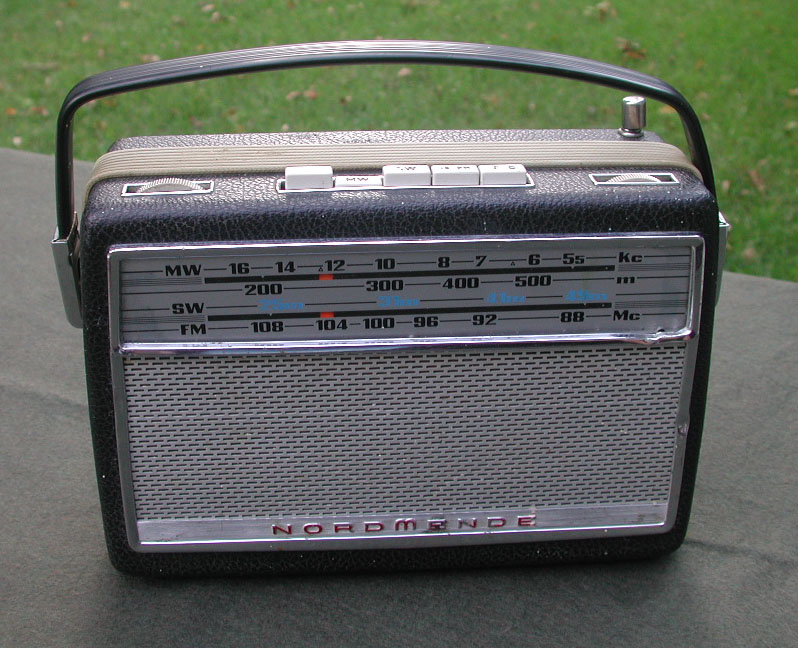

Nordmende "Transita DeLuxe"
Made in Bremen, Germany for the 1963-1964 season
|MW||550 kHz - 1600 kHz|
|SW||49 meters (5900 - 6200 kHz)|
|SW||41 meters (7200 - 7450 kHz)|
|SW||31 meters (9400 - 9900 kHz)|
|SW||25 meters (11,600 - 12,100 kHz)|
|FM||88 - 108 MHz|
Purchased this portable, Nordmende transistor radio on Thursday, August 18, 2011 at the AWA Conference flea market. The seller, Lewis Bodkin* of Toronto, was looking to get "fifteen dollars." This was my first foray into Nordmende radios, and I pounced on the opportunity to take it home. The cabinet was a little dirty from what appeared to be 50 years of normal use (resplendent with tiny paint splotches), and there were some dents to the metal trim, but the internals and battery compartment looked clean and complete. In Germany, this style of radio is known as a kofferradio (suitcase radio) because of its small size and portability.
*Lewis Bodkin made an unscheduled presentation at the AWA Conference showing a silent film made in 1932 by Rogers radio (Toronto, Canada).
The Transita DeLuxe required an odd size 9 V battery (Eveready № 266 [a.k.a. PP7], NEDA 1605). Distance between terminal contacts: 19 mm. Fortunately, they were still being sold, albeit somewhat expensively. I found them online for $17.95 (www.batterymart.com). Purchased a battery on Saturday, August 20, 2011 for $20.94 including shipping. The battery cost more than the radio (another example: Grundig "Transistor 301").
The battery arrived August 26, 2011 and the radio performed well on the FM band, but the sensitivity on AM and shortwave was not quite so good. It was hard to tune stations on shortwave because of the lack of a band spread adjustment. This radio might benefit from an overhaul.
|1963-1964 Nordmende "Transita DeLuxe"|

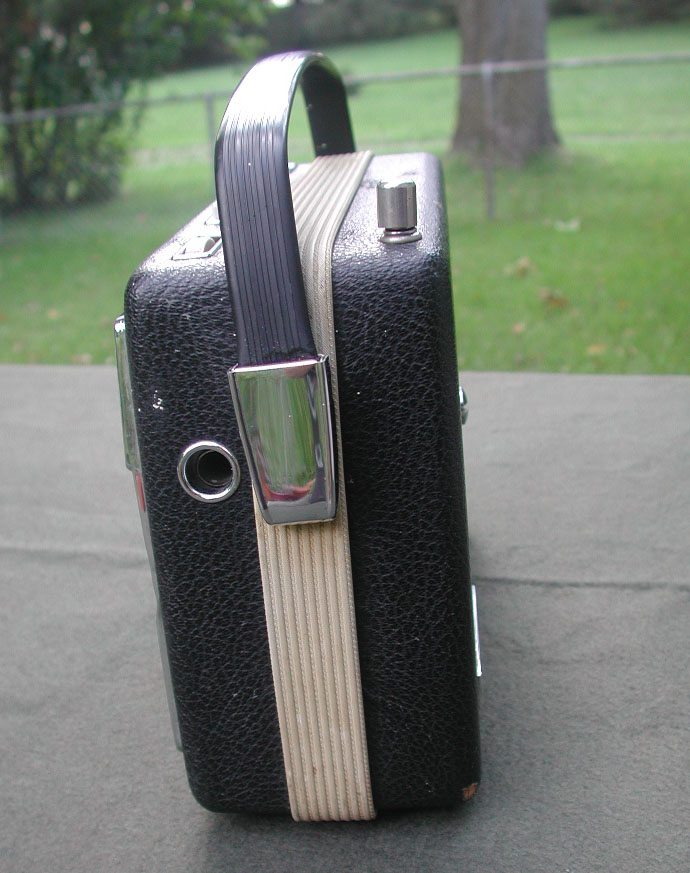

|Rear view – one screw secures back cover||"PAL" antenna connector (European standard)||Headphone, and 9 V sockets||Nordmende Transita DeLuxe with 1957 Mercedes-Benz Type 190 Ponton sedan (August 20, 2011)||2011 AWA "Old Equipment Contest" – from the collection of Michel Chabot (VA2DFI)||Eveready, 9 V, № 266 (a.k.a. PP7), NEDA 1605 battery|

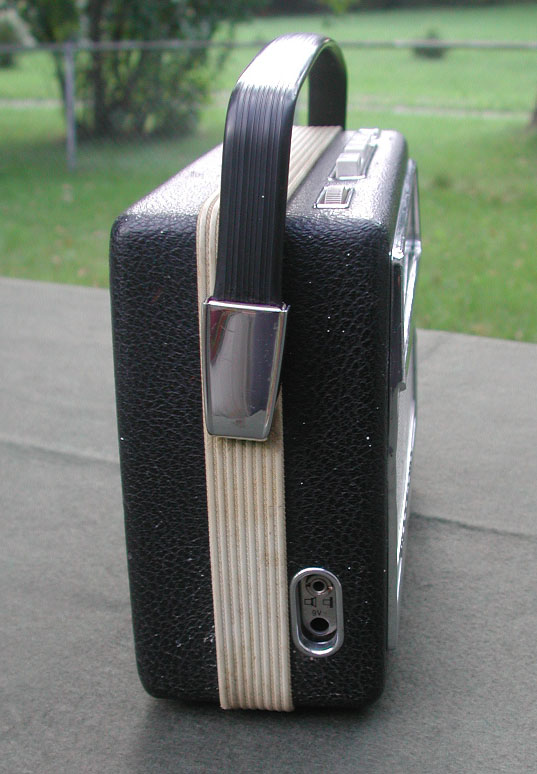

The outdoor photos were taken August 19, 2011 with a Nikon Coolpix 990, except where noted. The indoor photo (with orange table cloth) was taken at my behest by AWA member Joe Di Maggio (WA1HFQ) with his Canon "Powershot SD1100 IS." He then generously copied all of his AWA Conference photos from the camera to his laptop, and then onto my thumb drive. The radio was part of the 2011 AWA "Old Equipment Contest", and integrated into a display of Nordmende transistor radios owned by Michel Chabot (VA2DFI) from Quebec City.
Update / 25-apr-2012: The radio was a weak performer on AM (low volume) so I dropped it at Radio Daze. They (Brian) replaced four capacitors, and then it sounded nice, with plenty of volume. The bill came to $73.66. Picked it up on 30-apr-2012.
Total cost (so far): $15 (radio) + $20.94 (battery) + $73.66 (replace capacitors) = $109.60.
Photo: February 5, 2009 (at Radio Daze) / Nikon Coolpix 990

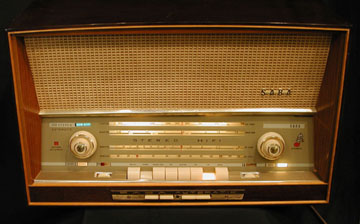

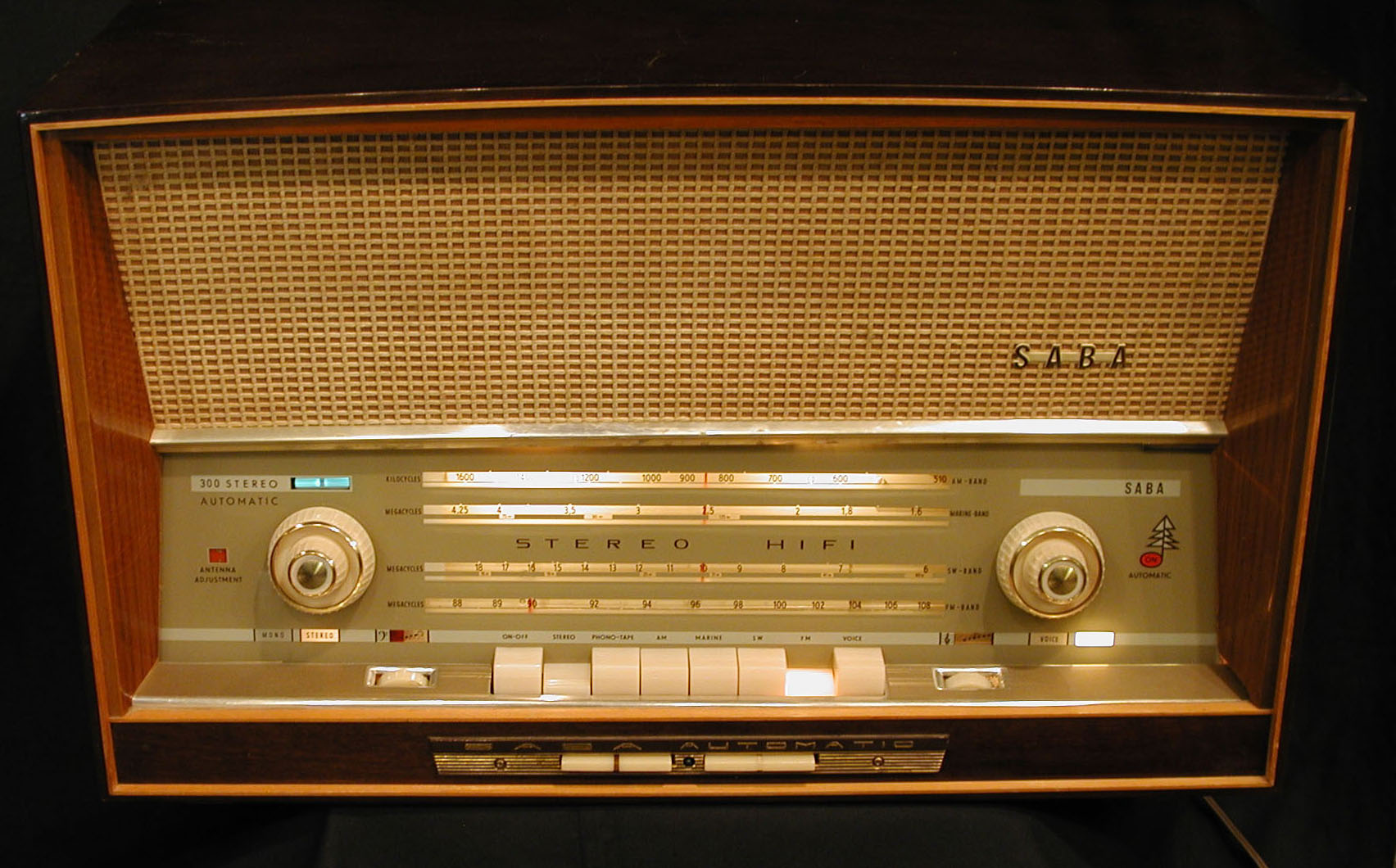

1961-1962 SABA (Germany) "300 Automatic Stereo 11"
FM: 87 - 108 MHz
SW: 5.9 - 18.9 MHz
Marine: 1.55 - 4.3 MHz
BC (AM): 510 - 1640 kHz
Valve (tube) Line Up
EC92, EC92, ECH81, EF85, EM84,
EABC80, EABC80, ECL80, ECL86, ECL86
Provenance of This Radio
I first saw this particular radio sitting next to another, identical radio at Radio Daze. A customer called Greg Gosson had dropped off both sets for servicing, and they were ready to be picked up. Mr. Gosson inherited both radios from his father in non-working condition, and Radio Daze was charged with bringing them up to snuff. I was so surprised to see two of these amazing creations together, that I hurried back home to grab my camera, tripod, and cloth backdrop. The photo shown here is from that initial encounter on February 5, 2009.
The SABA "300 Automatic Stereo 11" shown here was originally purchased in 1964 by Greg's uncle. His father and uncle were twins, and both men purchased matching radios at Ferrari's Furniture Store at 489 Chili Avenue (near Thurston Road) in Rochester. The building is still there, and they still sell furniture, but the name has changed over the years.
I contacted Greg several times between 2/2009 and 8/2011 about buying one of these radios, and he finally agreed (albeit hesitantly) to sell his late uncle's set. So, at 5:15 p.m. on August 24, 2011, we met at his workplace (Time Warner / 71 Mount Hope Avenue) to scrutinize the radio, and come to an agreement. Everything checked out, and the rest is water under the bridge. The price was $500, which was a lot of money, but the last time I checked, SABA was not making these anymore.
Backstory: As is typical with many old radios, even when they enjoy regular use, the stations may not get changed that often. Favorite stations are pre-tuned on each band (usually FM and AM), and then the radio waits to be switched on occasionally. In the case of this Saba 300, the AM/SW/Marine band dial cord had not received any regular exercise for months, or maybe even several years.
Update / November 16, 2019 (Sunday): Discovered the tuning knob for the AM band was not moving the dial pointer. At first, it was intermittent, but it quickly got worse. It appeared that the dial cord was not broken, because rotating the tuning knob back and forth many times caused the dial pointer moved a little bit. Got the radio onto the workbench, and discovered that the dial cord band selector clutch was slipping out of position when the piano key selector switch was in the AM band position. The clutch was designed to engage either one of two separate dial cords – one for AM (also controls the SW and Marine bands) and another for the FM band. The clutch was engaging securely on the FM band, which reduced the scope of the problem.
First, to reduce potential friction points, the dial cord pulleys were examined and carefully lubricated with a variety of products. Applied Labelle 108 (light-weight synthetic oil), and sprayed the shaft of the large tuning capacitors with PB Blaster, and DeoxIT, but after further scrutiny over the course of several days, the clutch seemed to be the real problem. While holding the clutch in place with minimal finger pressure, the tuning knob at the front of the radio moved the pointer up and down the dial freely. Nothing was binding or inhibiting travel – especially after the rigorous lube job.
SABA "300 Automatic Stereo 11"

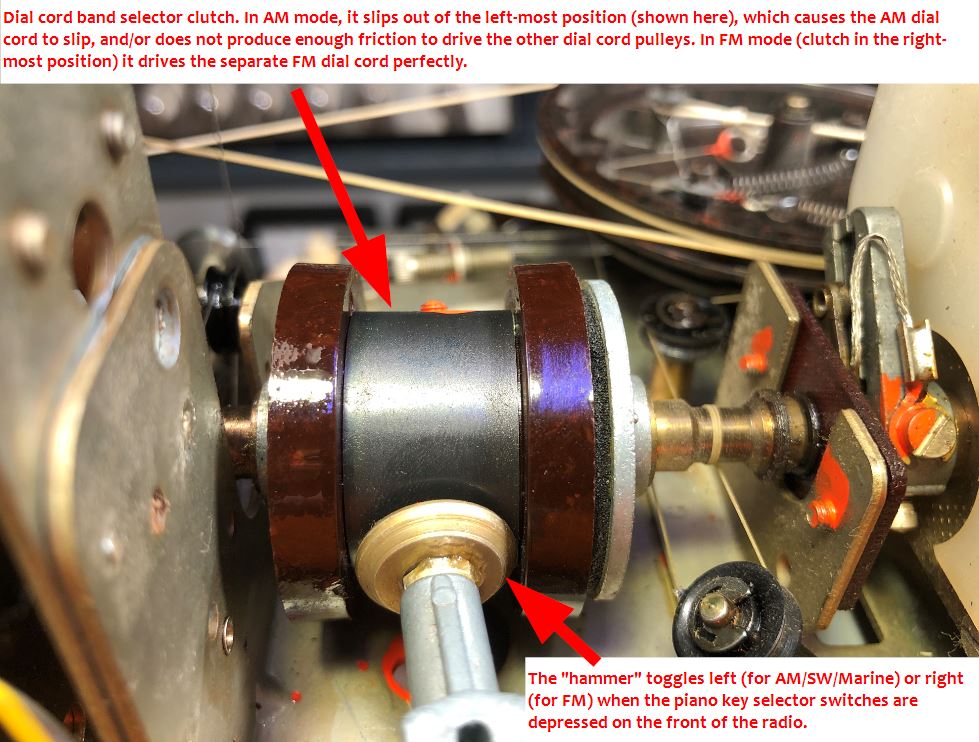

Dial Cord Band Selector Clutch
|Photo 1. Clutch Location
November 16, 2019 / iPhone 8
|Photo 2. Problem Description
November 16, 2019 / iPhone 8

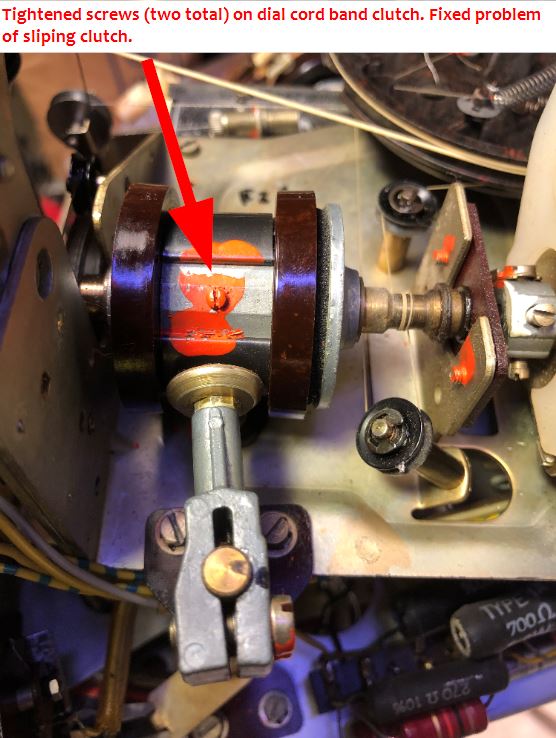

|Photo 3. Solution
November 19, 2019 / iPhone 8
FM band dial moving freely in both manual and automatic (motorized) modes
November 19, 2019 / iPhone 8
November 19, 2019 (Tuesday): Ultimately, the clutch was adjusted, and repaired by tightening the two screws (one on each side of the clutch cylinder) found under the factory-original orange quality-control paint. Reference the photos.
Quest for Original Documentation
Please contact me if you know where I can find any/all original documentation for the SABA 300 "300 Automatic Stereo 11."
Replacing Missing Knobs and Trim

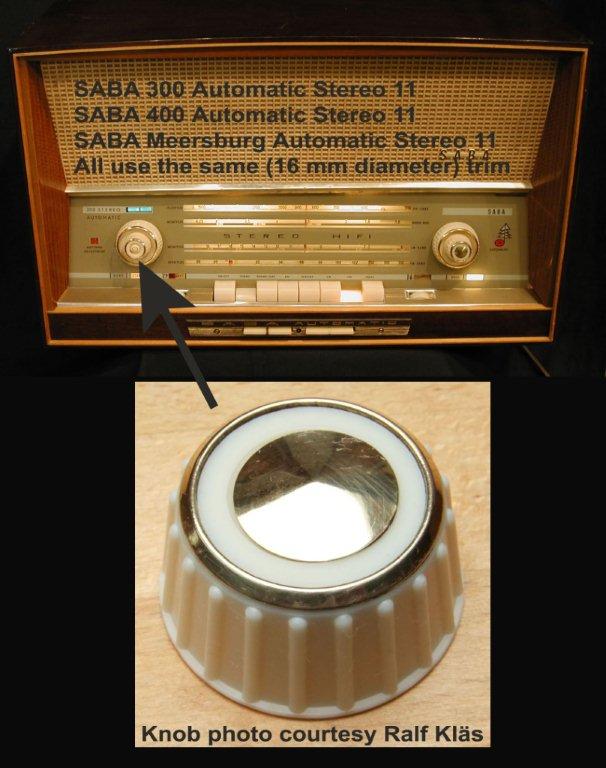

The volume control knob (left side) was missing the 16 mm Ø center trim piece. Other radios that use the same knob are: SABA "400 Automatic Stereo 11", and SABA "Meersburg Automatic Stereo 11." Fortunately, AWA member, Robert Eslinger (KR1U) of Connecticut (oldradiodoc.com) had a donor radio (SABA 400) with the correct knob. He gave it an ultrasonic cleaning, and dispatched it for $25 plus $4 shipping. I sent the funds via Paypal on August 30, 2011.
The concept of ultrasonic cleaning vintage radio parts grabbed my attention, and I discovered a nice article on the subject by AWA member, Robert Lozier (KD4HSH).
Discovered later that day that the brass trim plates for the knobs were being reproduced at Volker Friedrich's shop in Germany. He rebuilds and sells them for €2.80 ($4) each. Reference: http://shop.antikradio-restored.de. It pays to shop around.
According to Eslinger, it would take approximately 100 hours to completely refurbish one of these rare beauties. Repair costs for the Type 300 are slightly less than the Type 400. As of August 31, 2011 a complete restoration of a SABA 300 was estimated to cost between $900 and $1,200. The SABA "400 Automatic Stereo 11" would cost nearly $2,000 to completely refurbish!
The replacement knob arrived on Friday, September 2, 2011 but initially, I was a bit dubious because the metal trim looked heavily tarnished, and had a dull brown color. I guess I was expecting something more dazzling because of the ultrasonic cleaning. The ivory plastic knob was in good shape, I just had to figure out a method of cleaning the brightwork. Fortunately, an hour of polishing with Nevr-Dull [sic] Magic Wadding Polish, made it look more radiant than the one on the other side. This naturally led to another block of time spent polishing the other one.
Mr. Eslinger also said that U.S. President John F. Kennedy (JFK) had a SABA 400 in the White House, and it was subsequently purchased in an auction by a Boston lawyer for a lot of money. Eslinger restored the exact same radio around 1996, and said that there are currently only a handful of repair shops in the USA equipped to work on them. Apparently, there are some specialized tools (no further details provided).
JFK in the Oval Office with the fabled 1961-1962 SABA "400 Automatic Stereo 11." It boggles the mind to speculate what he was listening to at the time. Was it one of Khrushchev's shortwave broadcasts from Radio Moscow (beginning October 27, 1962) about the Cuban Missile Crisis?
About the SABA brand (by Thomas J. Wiegand)
Schwarzwalder Apparate Bau Anstalt (SABA), or Black Forest Equipment Building Concern, was founded in Villingen, Germany, in 1839 as a maker of cuckoo clocks and music boxes. Radio production began in 1923. By the 1950s, a small line of high-quality table radios, consoles, tape recorders and television sets was produced. SABA celebrated its Jubilee Year (marking 125 years in business) in 1960.
More Information on the SABA "300 / 400 Automatic Stereo 11"
Hunting for an Über-Radio – Personal Experiences Looking for a SABA "300/400 Automatic Stereo 11"
The first SABA radio I remember seeing was at Bavarian Radio Works in Massachusetts. It was a 1961-1962 SABA "400 Automatic Stereo 11." The date was September 1, 2005 and Ross Hochstrasser (W1EKG) had the chassis mounted in a home-made jig, which facilitated access to all sides of the radio while sitting or standing. I was impressed by the set's sheer size, complexity, and the servo motors for automatic tuning.
The fall 2005 Kutztown (Pennsylvania) Radio swap meet was fun, but it seemed like there were more vendors, and a better selection of European radios at the fall 2004 swap meet. The radio that captured my imagination at the 2005 event (September 17, 2005) was a 1961-1962 "400 Automatic Stereo 11." In good working and cosmetic condition, the seller (Jeffrey Weber of Fogelsville, PA) was asking $450, which seemed excessive at the time. This was also the first time I saw the mammoth SABA radio cabinet with a working radio inside, and it was a magnificent sight. It did not include the optional stereo multiplex plug-in unit, so radio reception would have been in mono until a multiplex unit could be sourced and fitted. The radio was being demonstrated by the owner in conjunction with a portable, battery powered CD player via the DIN connector input jack at the back. The demo CD was Paul McCartney's "Flaming Pie" (1997). Note the CD played in stereo without the multiplexer in this configuration. These radios feature motorized automatic signal tuning (fascinating to watch), and are enclosed in a large, handsome wood cabinet with an attractive, and somewhat more "modern" tuning dial design – compared to other early 1960s sets. The ivory colored "piano key" style push buttons light up when depressed. Indeed, there are a lot of buttons and controls that light up on this radio!
On August 23, 2007, at the annual AWA Conference, I "temporarily" purchased a 1962 SABA "Wildbad 12" radio from Richard Modafferi (K2ICO). I loaded the radio in my car, and then realized it was meant for the European market because the FM band only went up to 100 MHz. Richard graciously returned my check ($150) when I discovered the oversight.
There was a vendor at the AWA Conference on August 18, 2011 who had a nice SABA "400 Automatic" resplendent with the plug-in stereo multiplexer, remote control cable, and some photo-copied color documentation. It appeared to be in top physical condition, but he was asking $900, and stated emphatically that he was not willing to accept any offers. He was displaying it from the back of his van in direct sunlight, which warped the plastic, rectangular "track" for positioning the sliding station markers – an unfortunate development. Even though this radio was "#1" on my wish-list, I decided to hold off because when a vendor brings a 50-year-old, used radio to a swap meet, they should be prepared to do a little negotiating.Happy Hunting!

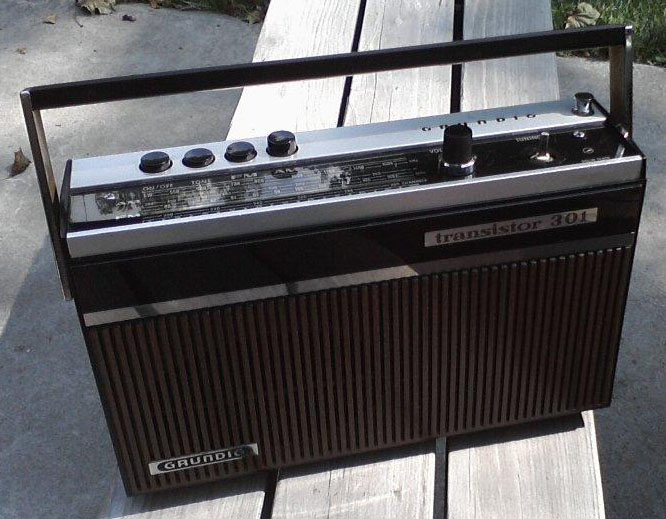

Photo: August 4, 2012 (as found)
Grundig (Portugal) "Transistor 301"
FM: 87 - 108 MHz
BC (AM): 510 - 1640 kHz
Found this radio August 4, 2012 for $3.00 at the Niagara Frontier Wireless Association (NFWA) swap meet in Amherst, NY. It was missing the tuning knob. Got a set of matching replacement knobs while visiting Ross Hochstrasser in Massachusetts (September 14, 2012).

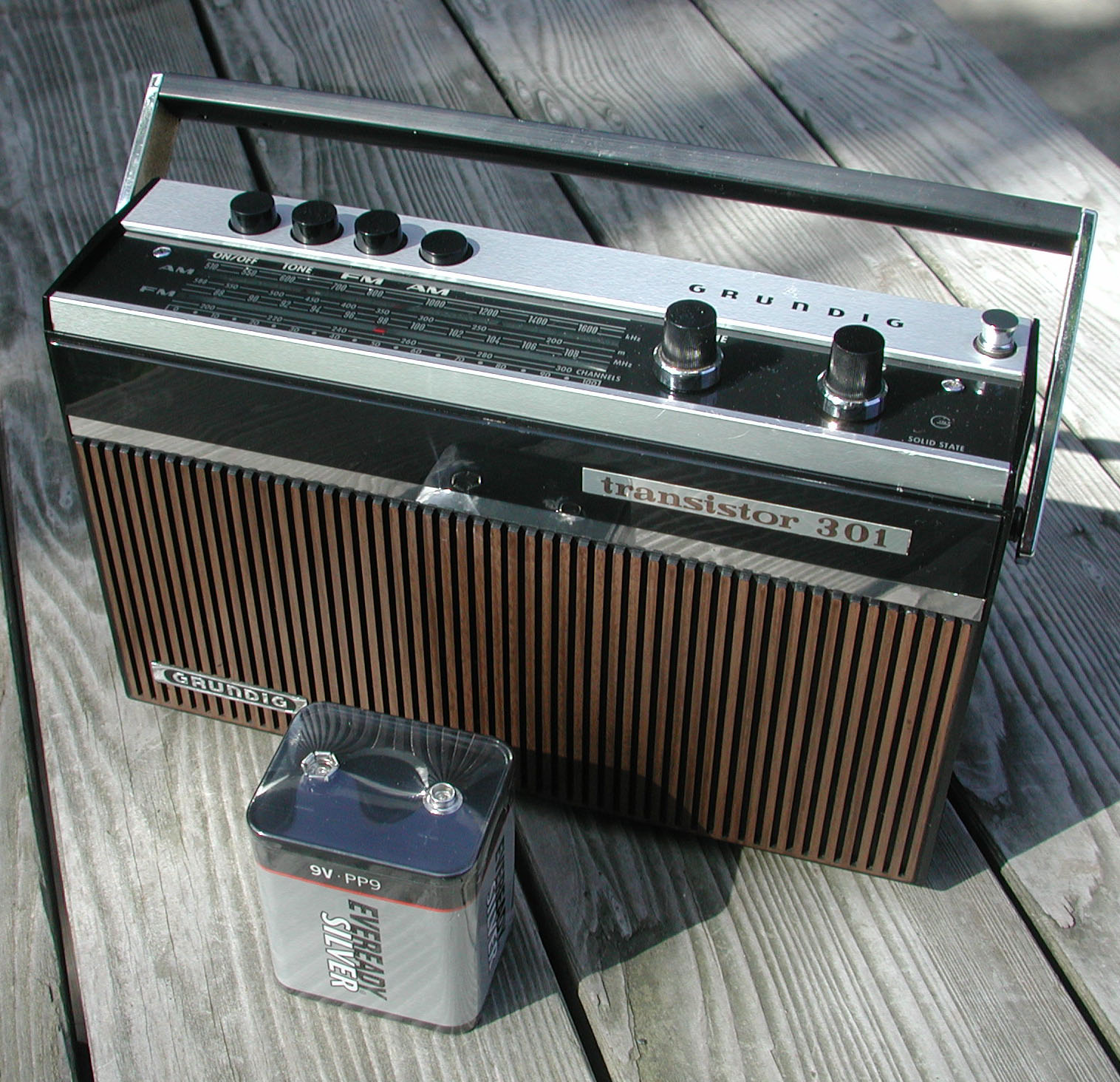

Photos: July 24, 2013 (after refurbishing activities)
Update / June 2013: Began refurbishing. The tuning dial was nearly impossible to turn, so I carefully applied "P.B. Blaster" (penetrating lubricant) being careful to minimize over-spray inside the radio. This eventually solved the problem, but it took several months of dedicated spraying and turning to get it working. Got it all back together, rubbed out the cabinet with Novus plastic polish № 2, and it looked great. The next challenge was finding a battery to fit the connector terminals and battery compartment.
Update / July 7, 2013: The "Transistor 301" required yet another, odd size, 9 V battery (Type IEC 6F100, PP9 [Eveready, Panasonic, etc.]). Distance between terminal snap connectors: 35 mm. Locating a vendor from the UK and/or Germany willing to ship the US was a challenge.

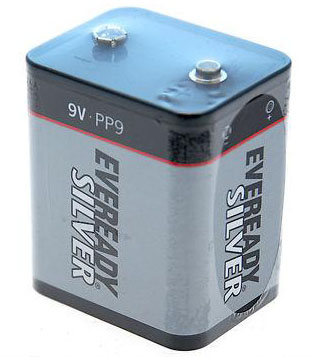

|Bought an Eveready PP9 (9 V battery) from UK eBay (.co.uk).
Distance between terminal connectors: 35 mm.
Price (10-jul-2013) £6.95 plus £5.99 freight for a total of £12.94 ($19.80).
Update / July 10, 2013: Bought an Eveready PP9, 9 V battery from a UK eBay vendor. Price was £6.95 plus £5.99 freight for a total of £12.94 ($19.36). The vendor was JLS Batteries – (Mr. D Foxley / 36 Elder Drive / Apley Castle / Telford, Shropshire / TF1 6TJ / United Kingdom).
Update / July 24, 2013: The Eveready PP9 battery arrived from the U.K. The radio worked, but needed an alignment because the tuner dial was off frequency. The audio quality was good! Once again (see Nordmende "Transita DeLuxe") the battery cost more (six times more in this case) than the radio.
Possible Sources for Battery Power
- Quick Reference: Distance between terminal connectors: 35 mm.
- Eveready / Panasonic PP7 (a.k.a. IEC 6F100), 9 V, 5000 mAh typical – unavailable in US. Try UK eBay vendors (ebay.co.uk).
- Original style: Varta № 439, 9 V, 4300 mAh typical, (UK and German sites [amazon.uk / amazon.de] won't ship to USA).
- Eveready № 276, 9 V (discontinued).
- Eveready 4.5 V, 1289 (two - with adapter may work (too large for battery compartment?) – unavailable in US.
- Six AA batteries in "cube" style holder (not in-line) might work, but would need the wider (spaced 35 mm apart) 9v battery connector snaps.
- AC adaptor model "TN-12A" (vintage Grundig, etc.).
- Modern wall wart with 9 V output (need European plug for radio socket).
Update / December 4, 2018: The "Transistor 301" required some expert service. For a long time, the AM/FM band switches had to be toggled back and forth to get any audio. Once the exact right position of the switches was found, the audio was good. I tried on two separate previous occasions to open it up and get down to the power and band switches to lubricate them with DeoxIT but was only able to remove about 10-12 screws and knobs, and get as far as the top of the switches. Didn't have the guts to go any deeper because of the risk of breaking something on the inner plastic assembly. So today, brought it to Brian Sargeant to see what he could do. There was also the very real possibility that the switches were getting lubricated by spraying the DeoxIT, and another component had failed, but I was unable to get it opened far enough to see or access any of the circuitry.
Update / March 17, 2019: Brian returned the radio at WYSL where I was working. He tried re-soldering components, but unfortunately, was unable to fix it. So, this set became a display-only piece. The battery measured below 9 V, so tossed it in the bin.

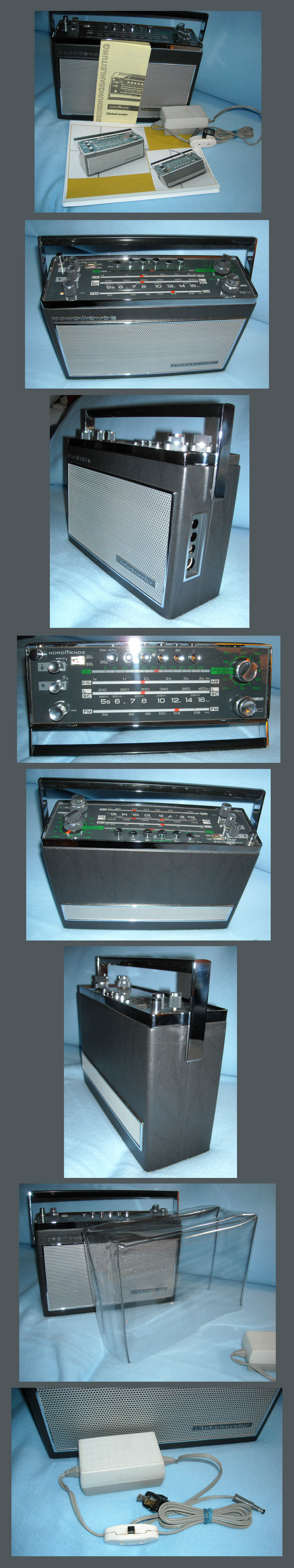

Purchased a Nordmende "Globetraveler" from eBay on August 12, 2012. The "Buy It Now" price was $225, plus $28 freight, which included the service manual, owner's manual, AC adapter, and a custom-made clear, plastic cover. The radio appeared to be in excellent condition. Photos and data will be posted as time permits.

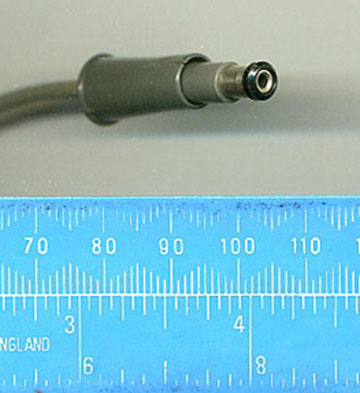

Runs on five D cells, or the optional AC adapter. AC adapter model: "TN61" 7.5-9v / 300 mA. Radio has center pin in AC adapter socket. AC adapter cord has a round hole "plug" (almost a socket in itself).
Photo: August 19, 2012 / Nikon Coolpix 990

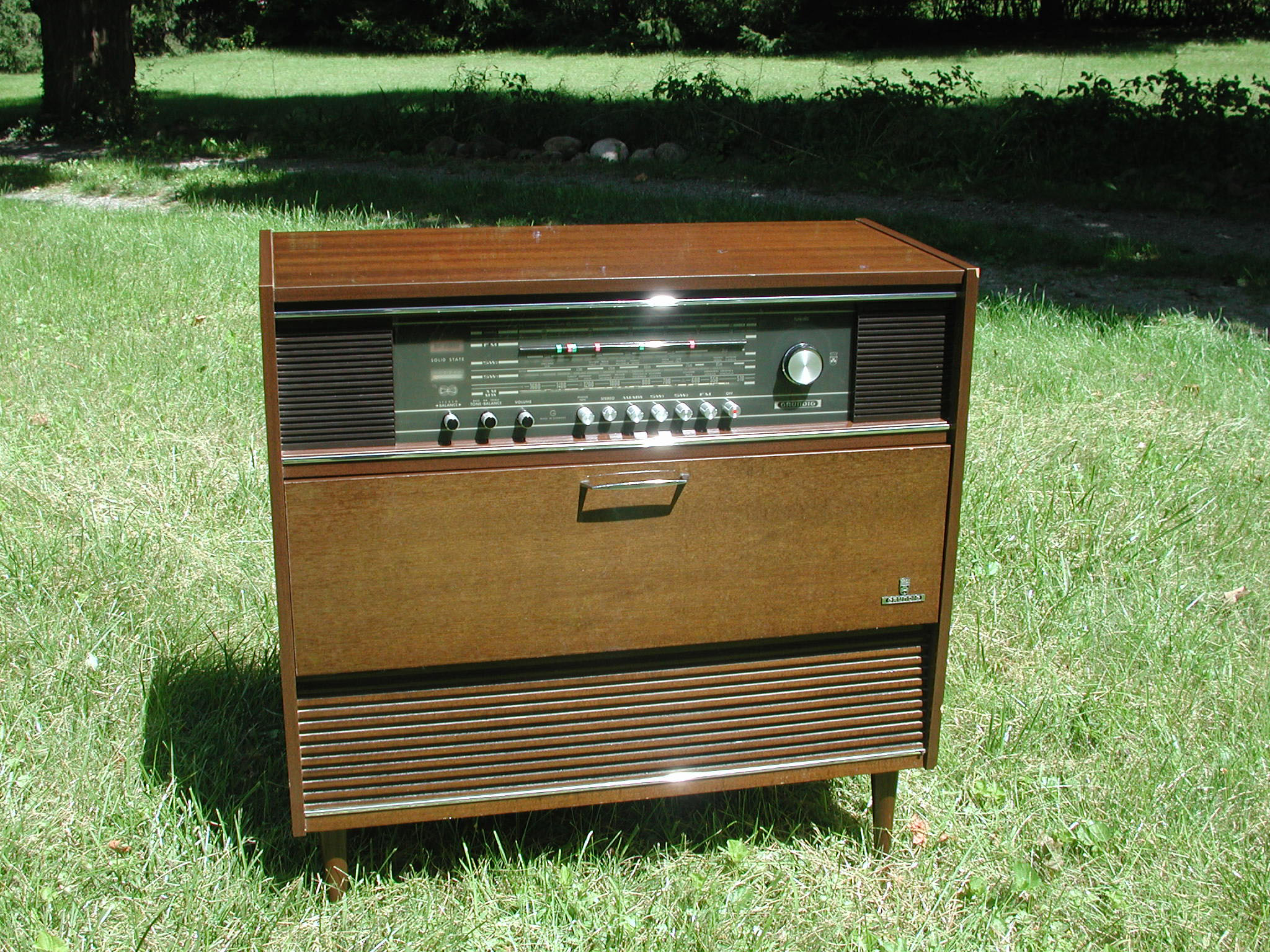

Grundig (Germany) "Locarno 3/U" stereogram (1970)
Model № 2357 Locarno 3/U
Serial № 63944
Solid-state AM, FM stereo, and shortwave radio console with four-speed record changer (16 RPM, 33 RPM, 45 RPM, 78 RPM) – Grundig record changer model "Automatic 36"
Photo: August 19, 2012 / Nikon Coolpix 990

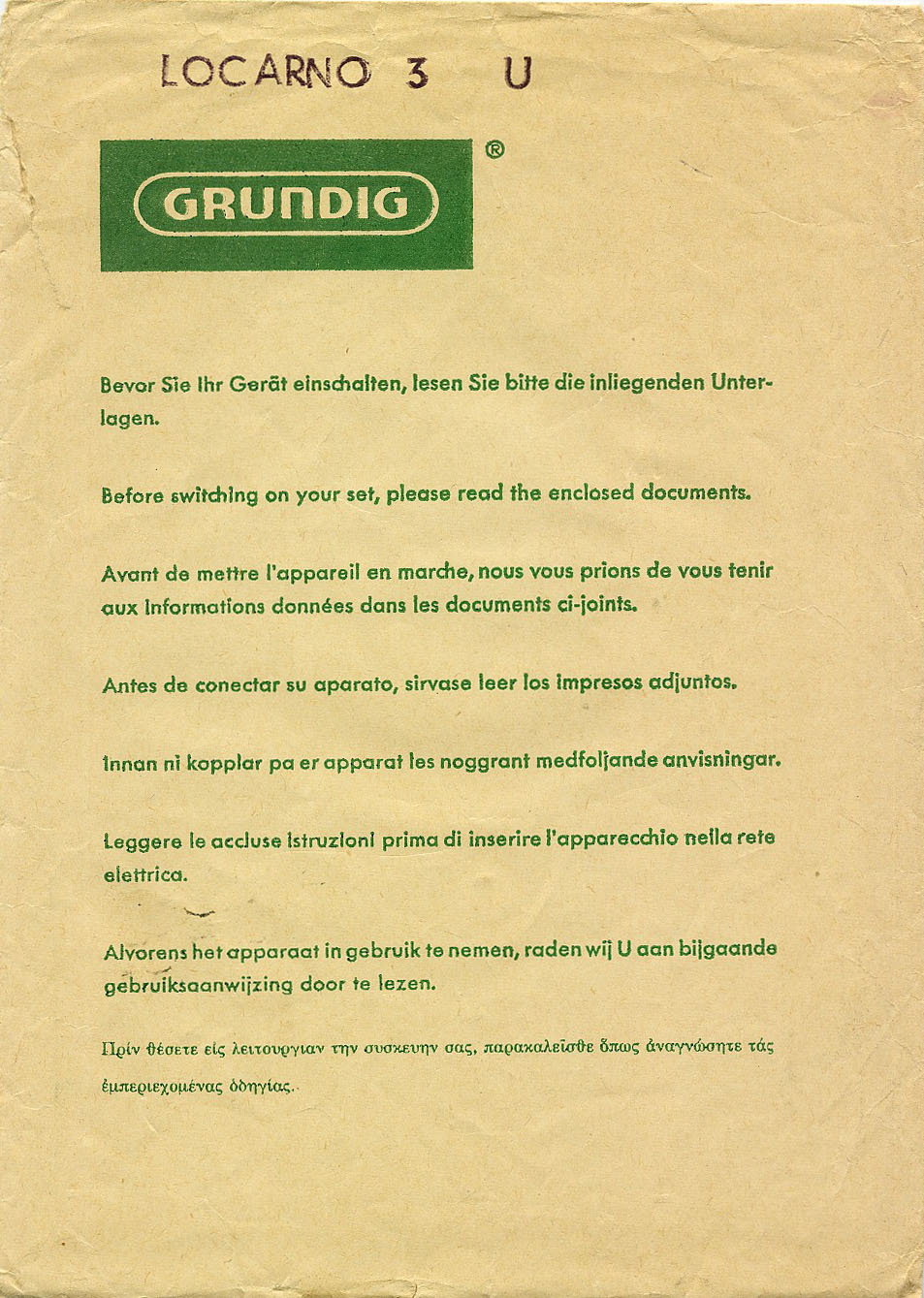

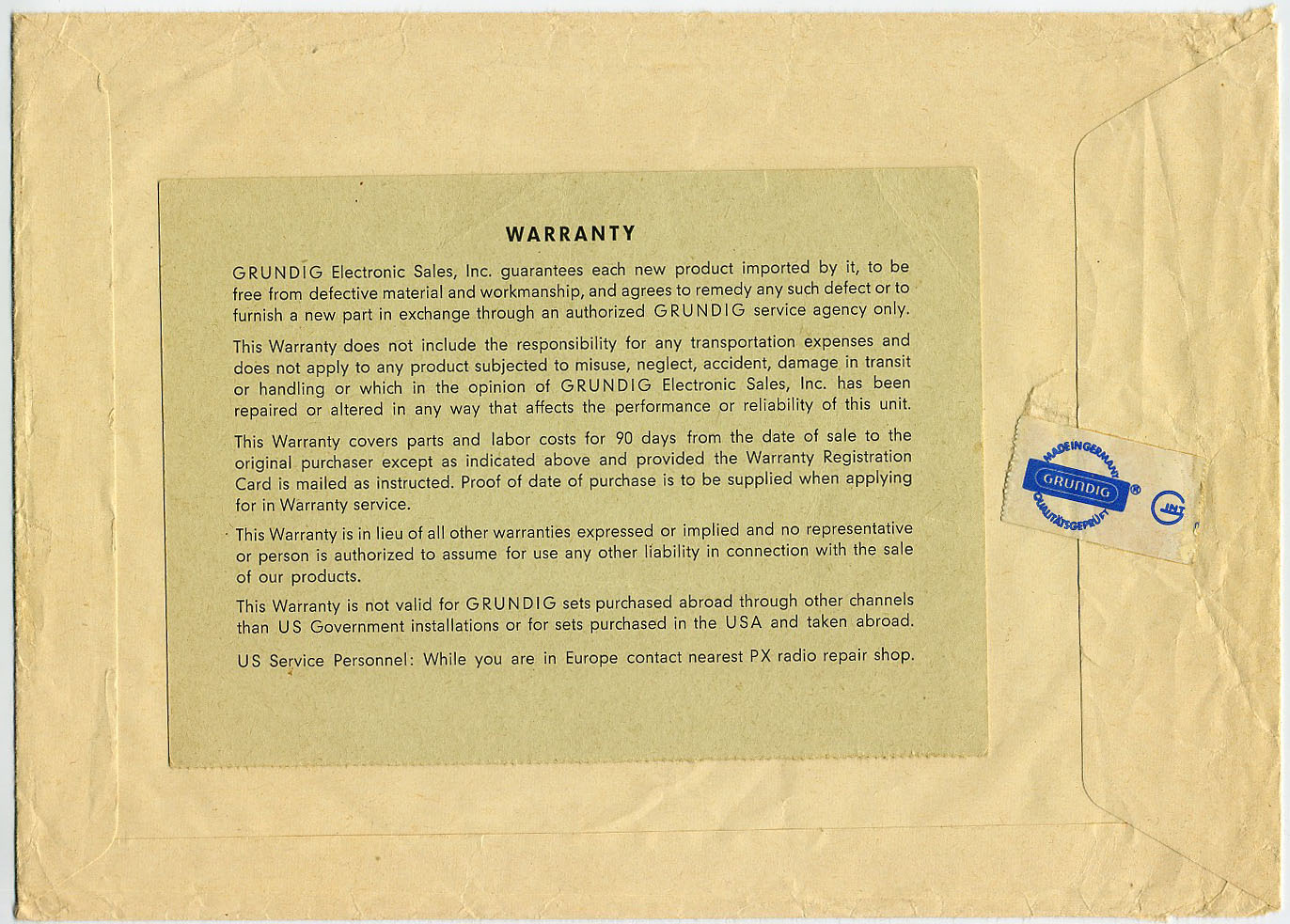

Scans of paperwork: August 18, 2012 / Scan of
schematic: August 20, 2012

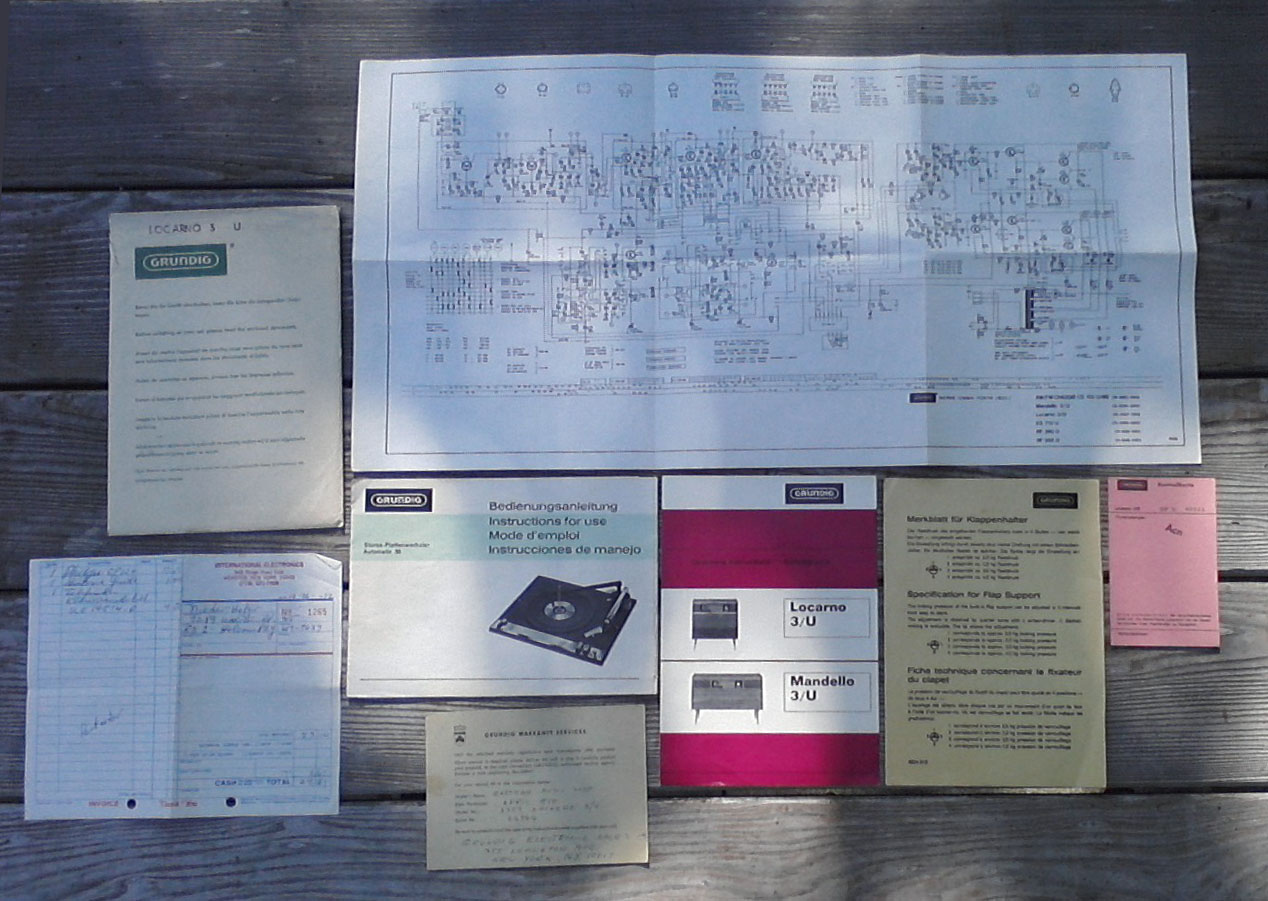

Photo of documentation: August 18, 2012 / LG cell phone
This "stereogram" was purchased Saturday August 18, 2012 for $40 at "Barn Sale / Items of Experience" (Rte. 64 in Mendon, NY). The cabinet was covered with a thick layer of dust, but it powered up and played well, and included all factory, and original sales documentation, which revealed the sales agent and first owner. It also included extra needles and pick-up for the turntable, as well as many photo-copied pages of a vintage shortwave listening guide. Finally, there were two "Reader's Digest" 33 RPM LP records of jazz and swing music (without jackets).
I first noticed this console in the spring of 2011 at "One Potato Two" (Routes 5&20 and 444 / Bloomfield, NY). Since it included the name and address of the original owner, I took the liberty to theorize how this set might have made it to an antique shop after a long life of service to its careful owner. A spare parts order from 1972 included the name and address of the original owner – "Niederhofer / 7289 Woolston Road / Holcomb, NY". I looked up the name, and found an obituary of Elisabeth Sofie Niederhofer (1919-2010). The story of her life seemed to correlate with someone who would be interested in a German-made shortwave set. She was married to Kurt J. Niederhofer, had a family, and was active in the German-American society "Rochester Touristen Verein" (RTV) based in Lima, NY. The RTV website said, "On the second Sunday of June each year, the RTV club hosts a large celebration of nature's reawakening, called the "Baumblüten Fest" (Blossom Festival)." This radio appeared at "One Potato Two" roughly six months after Elisabeth's passing (September 30, 2010). If you know the family, and can confirm this radio was in their home, please contact me.
Eastman Music Shop
Date Purchased: April 1970
Model № 2357 Locarno 3/U
Serial № 63944
Grundig Electronic Sales Inc.
355 Lexington Ave.
New York, NY 10017
Niederhofer (possibly Kurt J.)
Address: 7289 Woolston Road
RD1 Holcomb, NY
Both Sides Now
After thoroughly cleaning the cabinet, knobs, tuning dial, and replacing three dial lamps, the only remaining issue was the balance control knob, which caused distortion through the left side speakers when turned to the left-most position. I removed the chassis and used DeoxIT on the balance potentiometer, but it made no difference. The ultimate solution was to replace the blown fuse (20 mm, 1 Amp, slow blow) for the left side circuitry.

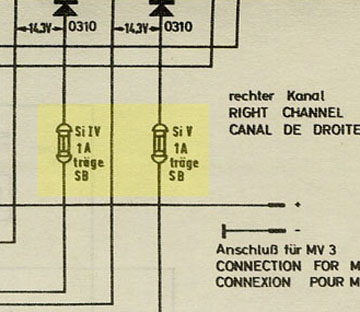

Radio Shack had the correct fuses
Description: 1.0A 250V 5 x 20 mm Slow-Blow Glass Fuse (4-Pack)
Model: 270-1063 / Catalog #: 270-1063
The signal strength lamp, and two tuning dial lamps were replaced with Type 40 lamps (6.3 V, 0.15 A, screw base).
Stereo Signal Lamp – "Unobtanium"
The "stereo" signal lamp was the only one still working when it was rescued from the barn. It was an Osram® 6 V, 0.3W, screw base. The schematic listed it as 6 V, 50 mA (6 V * 50 mA = 0.3 Watt). As long as the chassis was out of the cabinet, I wanted to replace all bulbs as a preventative measure. It was impossible to find a bulb with these specific ratings at the usual sources in the USA, but an internet search resulted in a hit from the U.K. The key was to include "0.3W" in the search.
For Reference Only: the original link to the exact bulb no longer works as of 26sep2020.
Original link: http://www.lampspecs.co.uk/Light-Bulbs-Tubes/Panel-Lamps-10x28mm-E10/10mm-x-28mm-6V-50MA-0-3W-E10
Description: 10 mm x 28 mm 6V, 50 mA, 0.3 Watt, screw base
Price: £0.75 each, plus VAT and freight (selected non-Euro Royal mail)
Ordered six bulbs August 21, 2012
Total: £13.50 GBP ($21.31)
Photo: September 26, 2012 / Nikon Coolpix 990

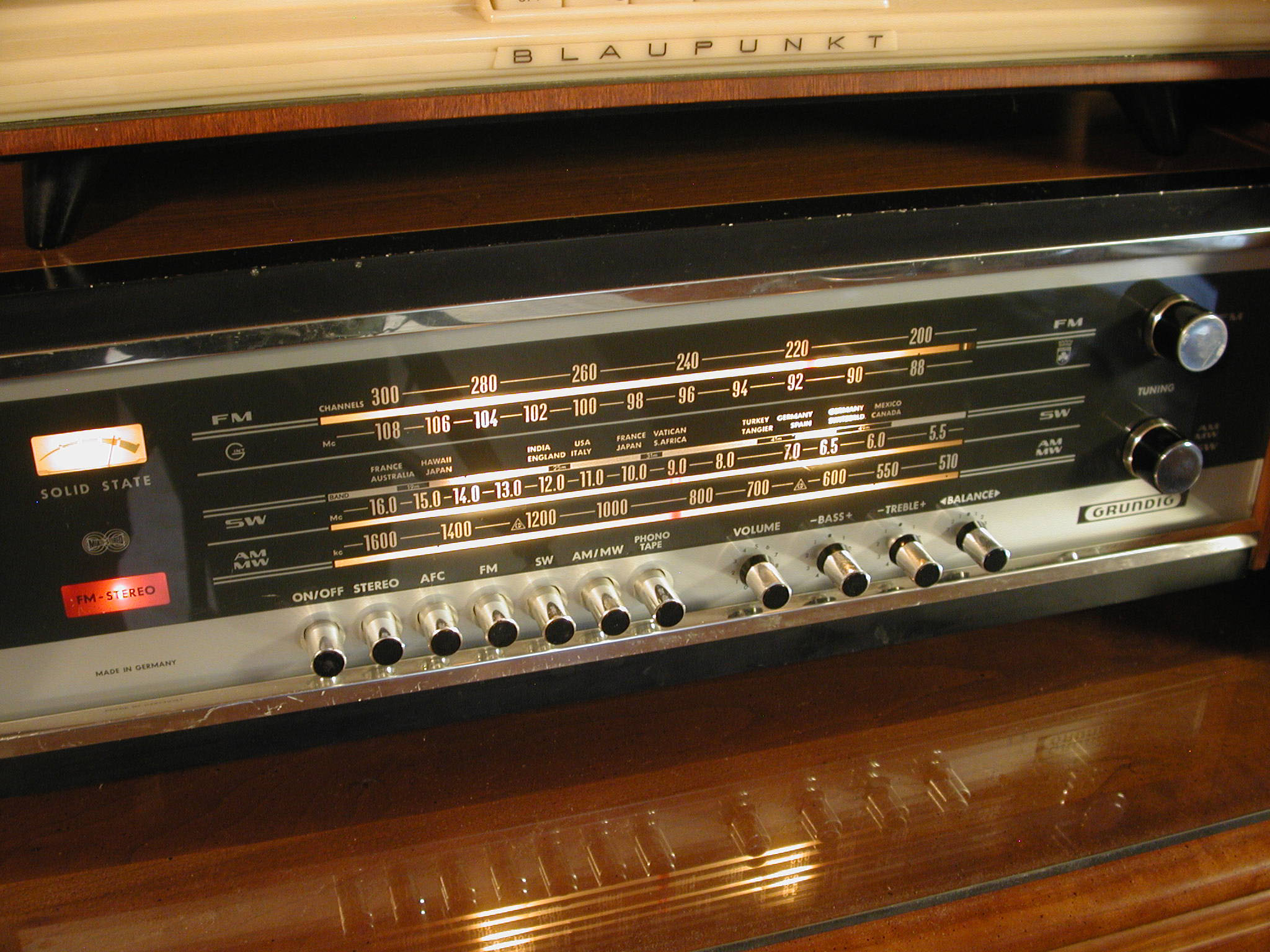

Detail of 1969 Grundig (Germany) "RTV 320U" AM/FM/SW stereo receiver/tuner
AM: 510 kHz - 1600 kHz
FM: 87.5 MHz - 108 MHz
SW: 5.5 MHz - 16 MHz
Visited Ross Hochstrasser (formerly known as Bavarian Radio Works) on the way from Wellfleet, Massachusetts to Boston on Friday September 14, 2012 and picked up a 1969 Grundig "RTV 320U" AM/FM/SW stereo tuner/receiver. He graciously included a single matching Grundig "Box 8" speaker (the grille was slightly damaged) and a Grundig "Super Hi-Fi" speaker (slightly "crunched"), which was designed to hang from a brass hook (included). No other model number was found on the "Super Hi-Fi" speaker. The RTV 320U itself was in nice shape, with a few scuffs, but fully functional – including both dial lamps, the stereo indicator lamp, and the signal strength meter – price was $50. Although the speaker enclosures were slightly damaged, they functioned, and had the "DIN 2-pin male connectors" necessary for the radio.
Photo: September 26, 2012 / Nikon Coolpix 990
Blaupunkt (Germany) "Sultan" (Type 20203) AM/FM/SW table-top radio

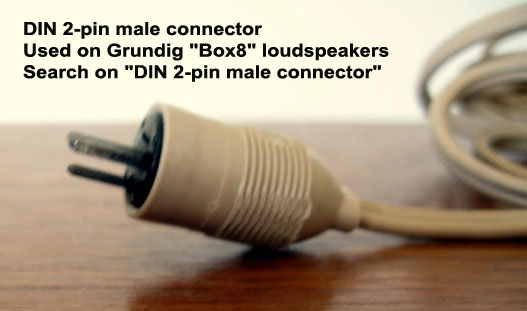

Bottom: Grundig (Germany) "RTV 320U" and Grundig "Box 8" speakers (stacked on right)
A few days later (September 18, 2012) while vacationing in the Adirondacks, I also bought a nice set of matching Grundig "Box 8" speakers on eBay for $150 (see photo). In 1969 the radio was sold without speakers, so it was left to the customer to make a decision. The "Box 8" speakers are short (only as tall as the radio itself), while there were also similarly designed Type "Box 412" loudspeakers that were taller (15"). Either one is considered "period correct."
|Photo: September 22, 2013 / Nikon Coolpix 990||Photo: August 15, 2017 / iPhone 7|

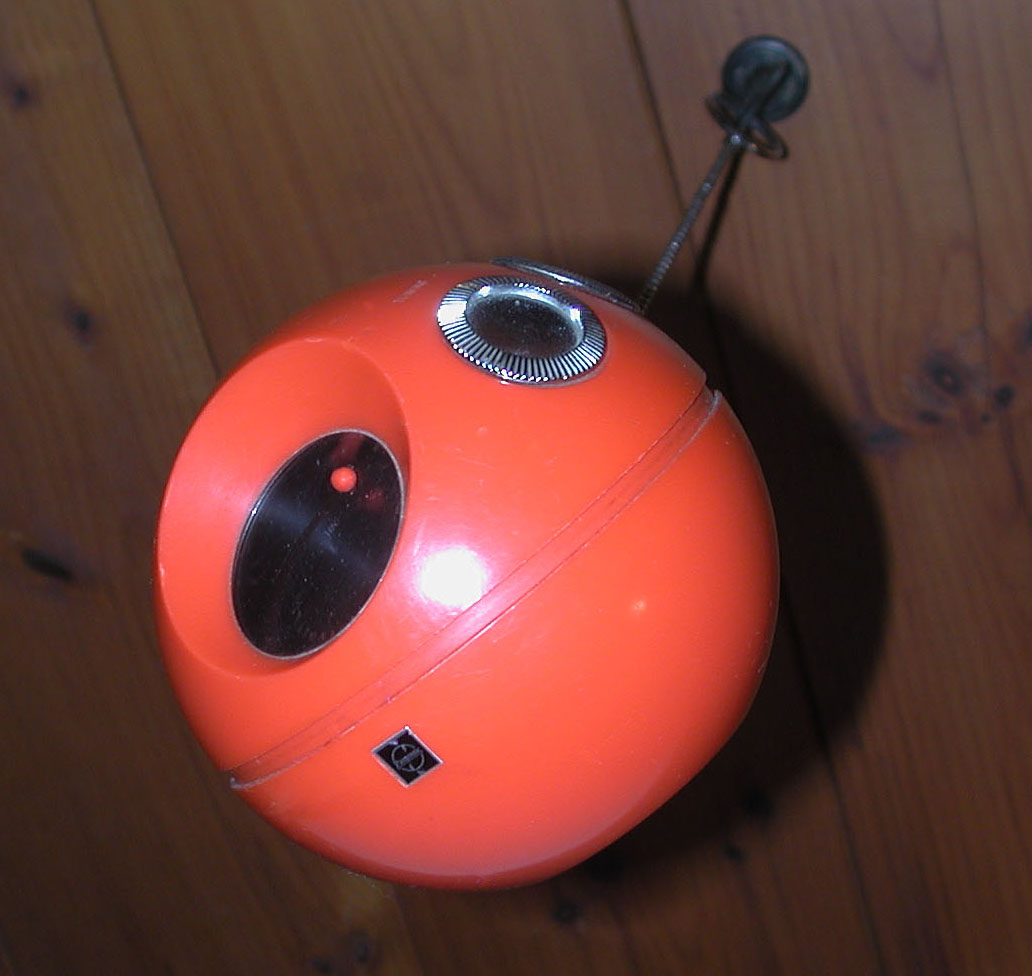

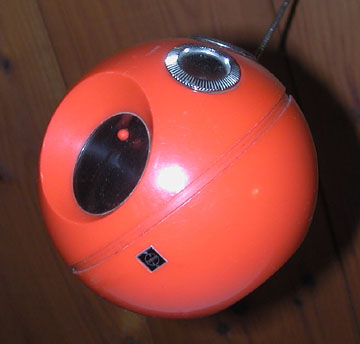

Panasonic (Japan) "R-70" AM transistor radio
Is this a new red planet? No, it's the R-70 hanging by its chain from the ceiling!
Found this icon of 1970s kitsch at the annual, town-wide flea market in Indian Lake, NY on September 19, 2013. Price was $10. Picked up a 9 V battery (in Speculator, NY) but only got static. There was a dearth of AM stations in the area, but back in civilization, it picked up all local AM stations. This radio was also known as the "Panapet" – Pana (Panasonic) and Pet (presumably, because it's on a chain). This also opened up a new way to display radios – by suspending them from the ceiling. Note the full size components inside. This is from what I call the "pre-Walkman era" just before the personal, miniturized electronics revolution began. See Sony ICF-9550W.

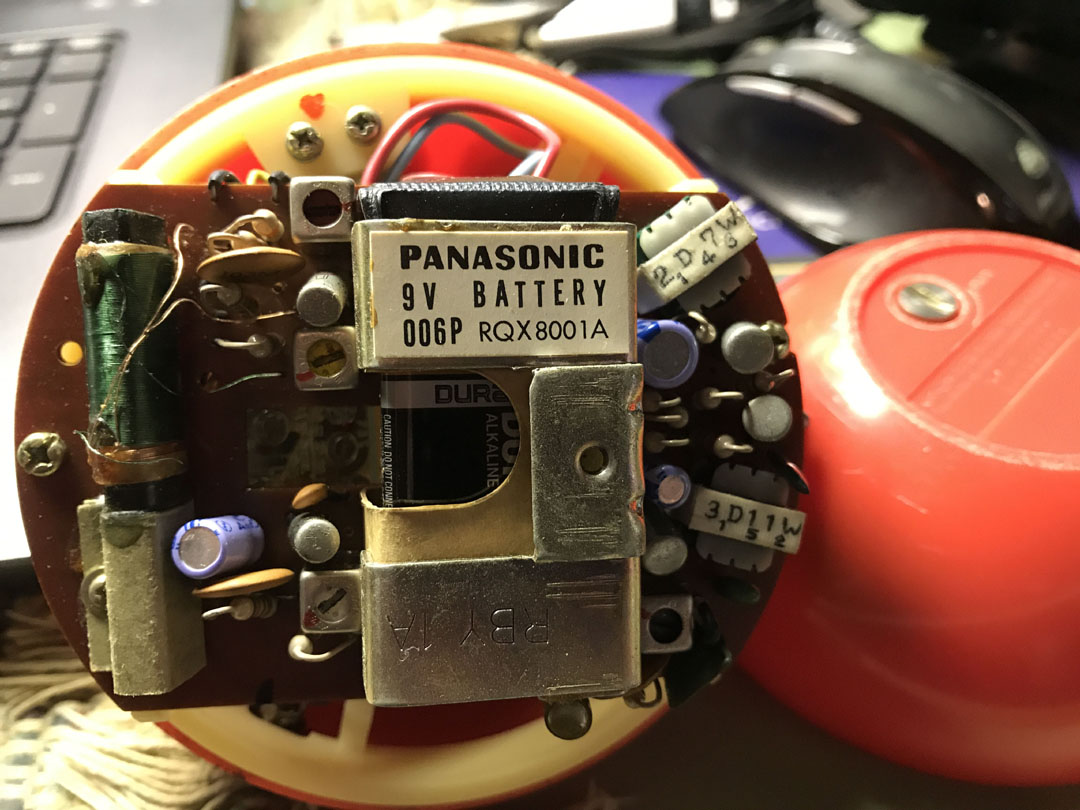

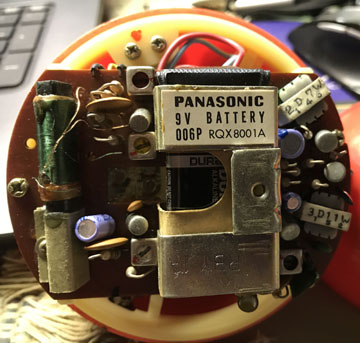

Update / August 15, 2017: Cleaned the volume pot with DeoxIT.
October 27, 2013: Picked up this novelty AM transistor radio at the annual toy and collectible show in Buffalo, NY for $15. The on-off switch and frequency control dial are both on the bottom. The top unscrews to reveal the 9 V battery connection.

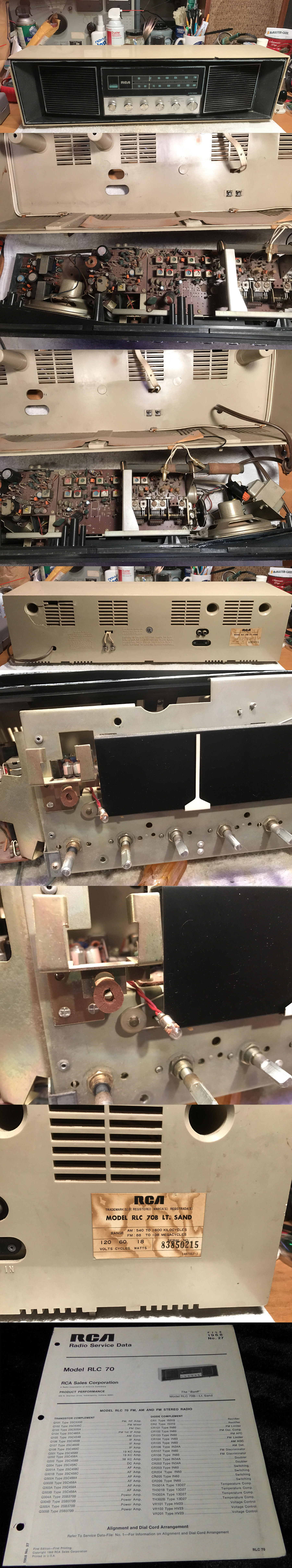

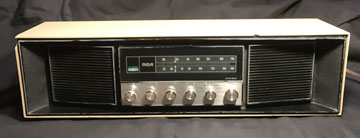

1968 RCA (USA) "RLC 70B" (AM/FM stereo) receiver
Serial Number 83850215 / more photos
Photos: February 4-5, 2017 / iPhone 7
AM: 540 kHz - 1600 kHz
FM: 88 MHz - 108 MHz
January 22, 2017 (Sunday): WYSL operations manager Bob D'Angelo presented me with this 1968 RCA model "RLC 70B LT SAND" (light sand color). He got it at a garage sale, "for a couple bucks", and no longer had a need for it.
February 4, 2017 (Saturday): Had the day off from WYSL (Michael Warren Thomas was recorded), so had time to replace the stereo indicator lamp (a mini, "grain of wheat" style bulb) and clean the pots with DeoxIT.

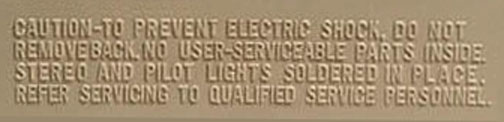

The tuning dial appeared to have no illumination. Did the designers think that radios are only used during the day? Even though the back of the cabinet says, "stereo and pilot lights are soldered in place", I was unable to locate any dial lights or "pilot lights." The power cord had already been replaced by Bob. The cabinet had some cracks, and normal wear and tear (average for a 49 year old plastic exterior) but the interior was in good shape (albeit a little dusty). Reception and audio were fine on both FM and AM, and after cleaning, the pots could be adjusted without any scratchiness. See resulting YouTube video. Looking for a schematic. I'd like to encourage anyone who has one of these radios to contact me to compare notes.
This Grundig 2420U was generously donated and shipped from Afton, Virginia by Allen Dolleris, who found this page, and got in touch via email. He inherited the radio from his father, and while he claimed to have no practical use for it, he thankfully chose to save it from the landfill and find it a new home. His initial contact was December 9, 2018. I must have been somewhat skeptical, and wanted some assurance that it wasn't a basket case, so at my behest, he made a video of the radio performing on the BC (AM) band. Finally, after several months of sporadic messages about shipping logistics, it arrived at WYSL (my weekend gig) on April 18, 2019.
Photos: December 1, 2019 / iPhone 8
Lewco Model No 7015
12" Gumby Table AM/FM Radio
Frequency: AM 535 - 1605 kHz / FM 88 - 108 MHz
Power supply: DC 9V (006P x1)
Made in Hong Kong

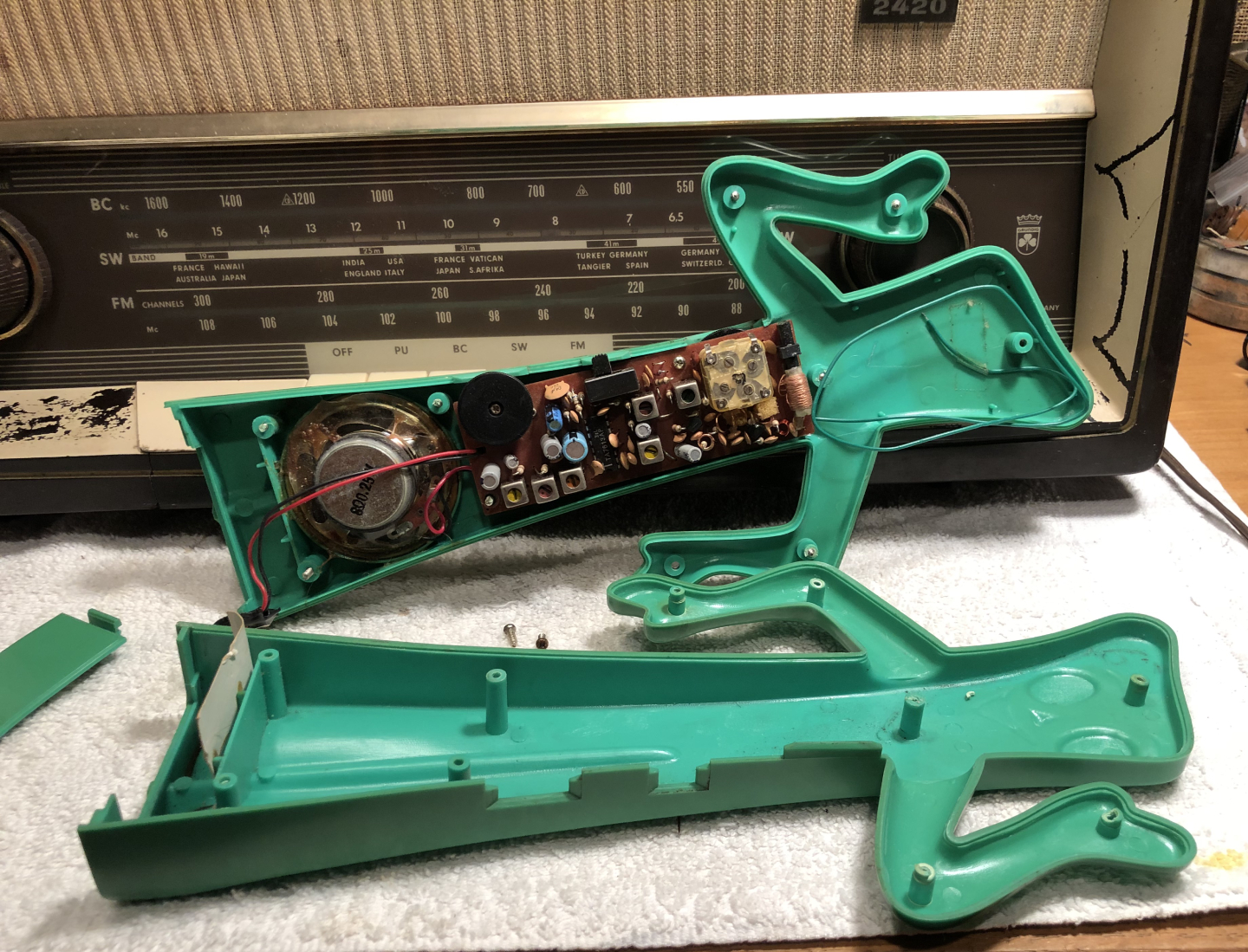

November 30, 2019: Grabbed this novelty AM/FM transistor radio at the Antique Marketplace of Lemoyne (415 Bosler Ave, Lemoyne, PA). It was marked $35, but they had a 30% off sale, so it set me back $24.50. Kind of fun that it had both AM and FM. Many novelty radios feature only one band – typically AM. With a fresh 9 V battery installed, it worked well on both AM and FM. See video of Gumby radio on YouTube.
|© 1985 – Prema Toy Co., Inc.
All Rights Reserved.
Manufactured by Lewco,
|Lewco Model No 7015
12" Gumby Table AM/FM Radio
Frequency AM 535 - 1605 kHz
FM 88 - 108 MHz
Power supply DC 9V (006P x1)
Complies with FCC Part 15 Rules
Made in Hong Kong
|Photo: Friday / December 13, 2019 / iPhone 8|

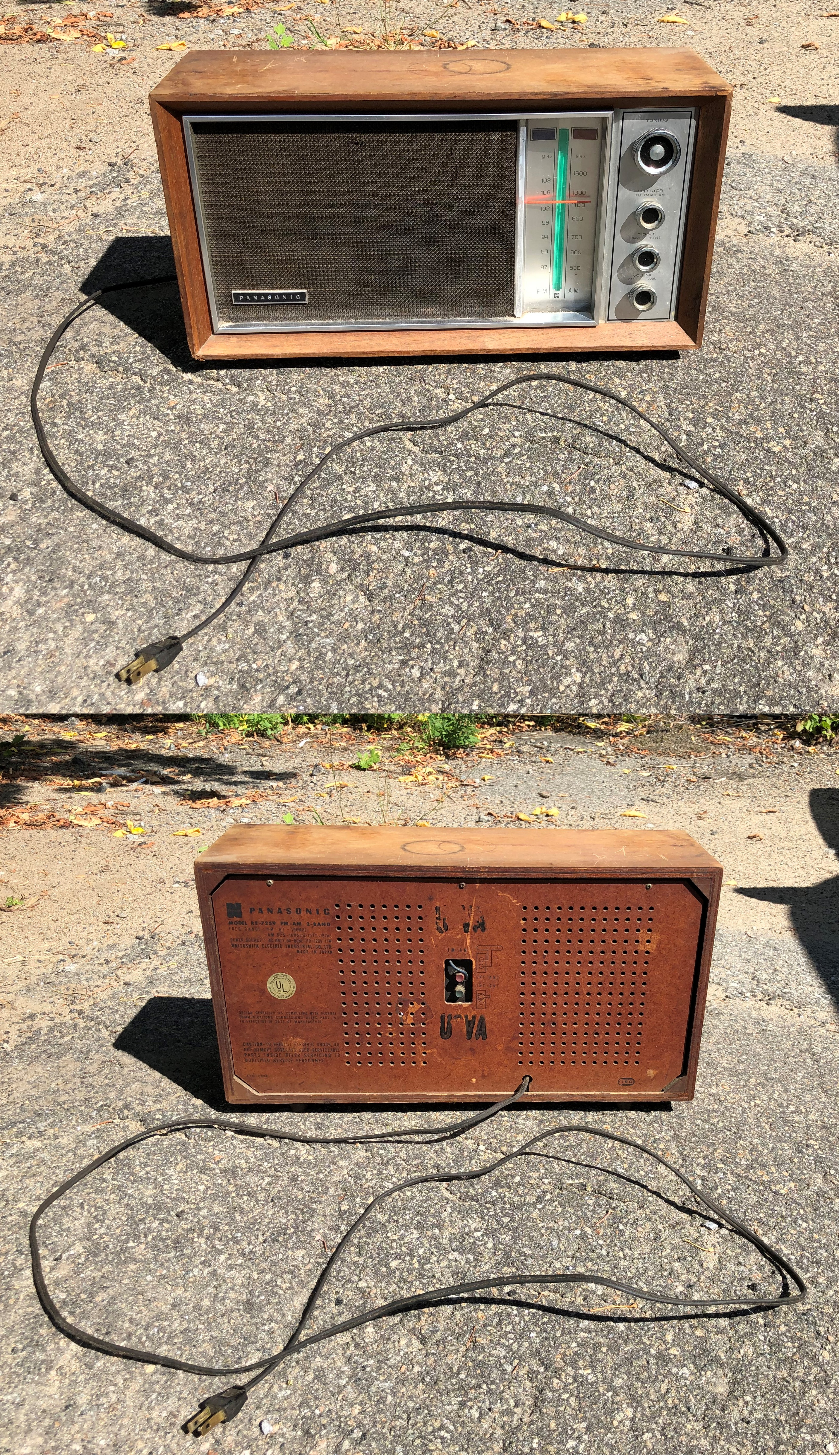

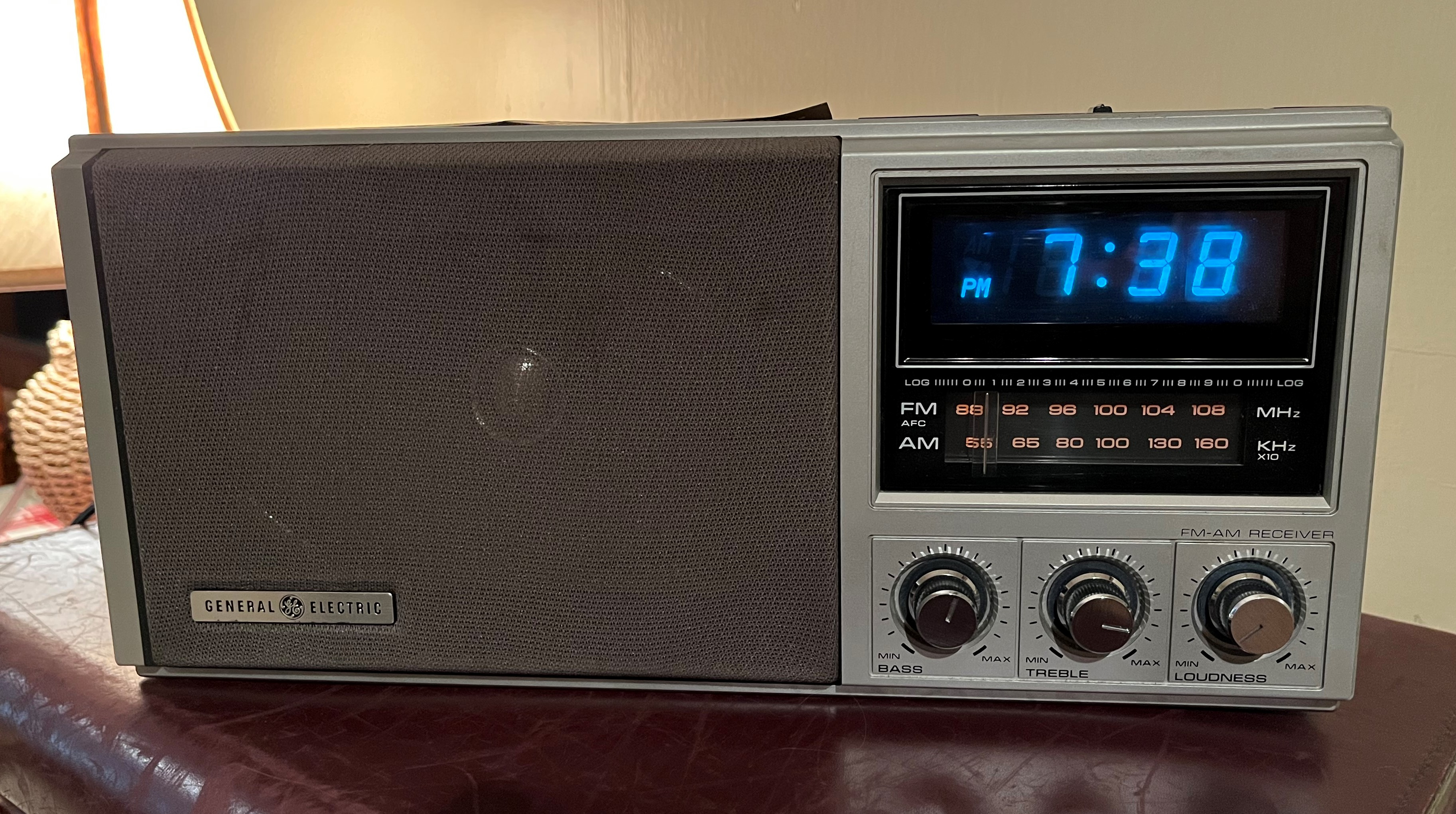

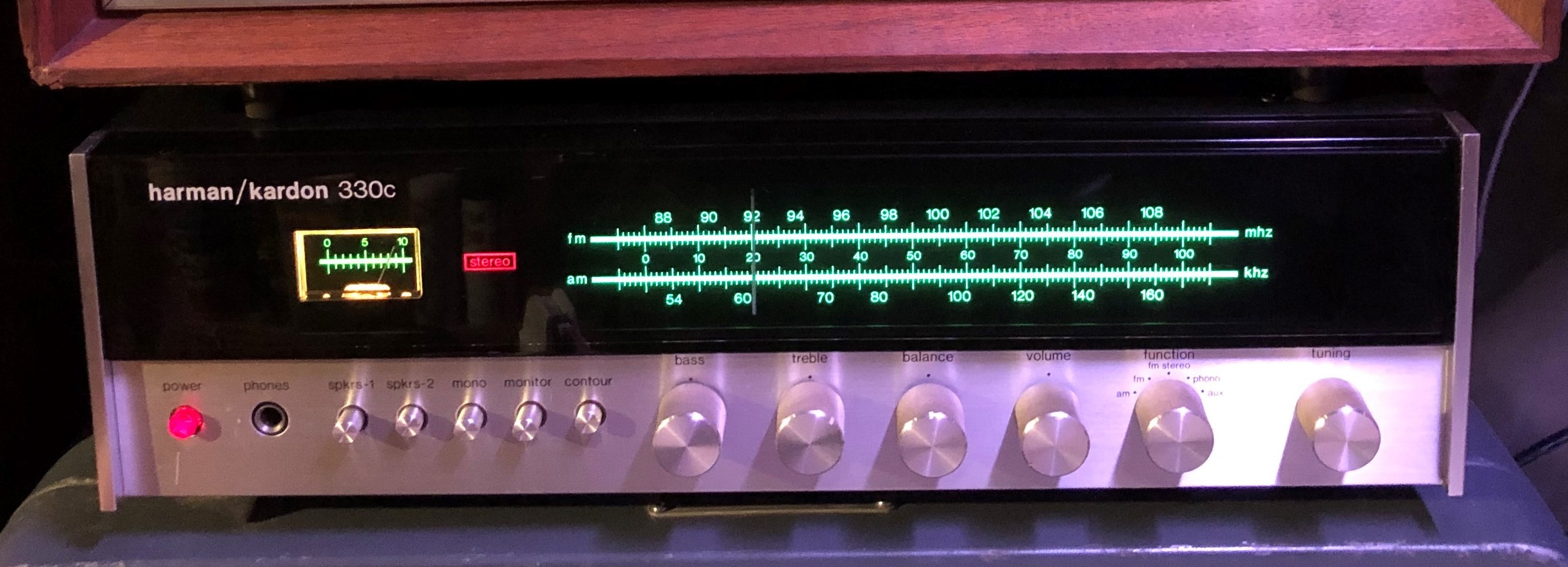

September 11, 2021 (Saturday): Discovered this radio while on vacation in Tupper Lake, NY. After verifying that it worked, returned twice to scrutinize it before making an offer. See the restoration page for details.
September 19, 2021 (Sunday): Discovered this radio while on vacation in Inlet, NY. After verifying that it worked, returned twice to scrutinize it before purchasing. See the restoration page for details.
This radio is not as old as it looks. It was made to appear like it was from the 1930s, but was actually made in 1990.
April 27, 2022 (Wednesday): Discovered this 1930s replica "tombstone" radio at Crossroads Country Mall (7348 East Main Street / Lima, NY) after recording a Time Out! radio show (TORS № 97 - with interview guest Tony Mesolella) at WYSL in Avon.
April 29, 2022 (Friday): After recording a second Time Out! radio show in the same week (№ TBD - with interview guest Dave Kaspersin of Dynamic Recording), I returned to the antique store located in the old church, and verified the radio worked. It was in good condition, the dial light worked, it had an interesting retro appearance, the volume knob was scratchy, and the audio quality was mediocre. It was marked $29, but they knocked off 10% for a final price of $26.10.
Overview / Features / Construction / Maintenance

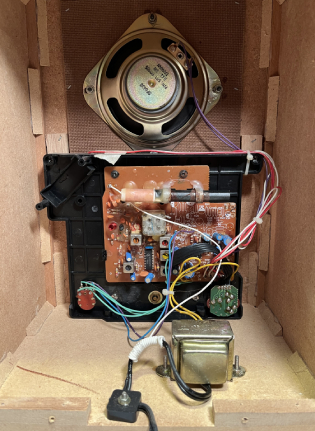

April 29, 2022 (Friday): In the evening, brought it down to the workbench, and removed, and scrubbed the knobs with with a nail brush and Palmolive dish washing liquid under warm water. Then, opened up the back (removed 12 screws), and applied DeoxIT to the volume control pot to eliminate the static, which is common on radios that have been sitting for a while. Next, used a cotton rag with a few drops of Novus plastic polish № 2 on the dial glass to remove some fine scratches. Finally, applied the "rottenstone treatment" (see elsewhere on this page) on the wood cabinet to make it look its best. As far as the audio quality, it has a single, 3 inch, 8 Ω, 3 watt mid-range speaker (see photo), so it's nothing special (especially on FM). It would be nice to have a tweeter with separate bass and treble controls. The cabinet is put together with particle board and hot glue (see photo). The speaker grille cloth is nice, and the overall appearance of the "tombstone" style cabinet looks like an old radio. The lighted tuning dial also has that old-timey antique appearance. This replica radio was made in 1990, so it is an antique of an antique. Note that Thomas model № 711 also included a cassette player on the right side of the cabinet, which this model (№ 710) does not have. The FM antenna (white wire in photo) is wrapped around the step-down transformer cord, which couples it to the 120 v AC power cord. In other words, the power cord is also the FM antenna. The switches on the front are 1) AM-FM-AFC, 2) Tuning, and 3) On/Off-Volume.
July 24, 2022 (Sunday): Got a hall pass from WYSL to perform some field research at the East Avon Flea Market, and stumbled across this radio. Incidentally, the vendors were also selling marijuana plants, which supposedly was legal at the time. Before seeing my money go up in smoke, we found a pavilion with power, and tested the basic functionality. Was able to tune in multiple stations on both bands, and ended up bringing it home for the asking price of $15.00. It was a little grungy, but it cleaned up well. Much has been written about this radio, so the internet will be an excellent resource for more details.
Quest For Sound "R601P"
Grundig "G2 Reporter"
- Press Release for the Grundig "G2 Reporter" was January 9, 2012
Sangean "PR D2V Q"
Grundig (West Germany) "Satellit 210 / Transistor 6001"
- Built 1969-1971
- Original price: $500-$600 USD
- AC adapter "TN-12" - or six D cells
- The black case is sometimes included with well-maintained examples
- Satellit antennas: www.classic-worldband.com/pages/info/projects/parts_info/antennas/sat_ant_inf.htm
- Other specefications: www.classic-worldband.com/pages/1970/grundig_satellit_210.htm
The standard monaural output on shortwave radios will only play through one channel of a stereo headset, unless a "Stereo-to-Mono Audio Adapter" is used. As of April 4, 2005 Radio Shack sells the needed adapter (Radio Shack part number 274-368) for $2.99. The adapter accepts a 1/8" Ø stereo phone plug (on the headset) and fits a 1/8" Ø mono phone jack (on the radio).
Radio Shack's website describes part number 274-368 as:
Use stereo headset with mono device such as scanner!
* Accepts 1/8" Ø stereo phone plug
* Fits 1/8" Ø mono phone jack
* Lets you connect stereo headphones to scanner, CB or shortwave radio, or recorder
Note that a 1/8" Ø phone jack (on US models) is the same as a 3.5mm Ø (DIN 45318) as found on German and European radios.

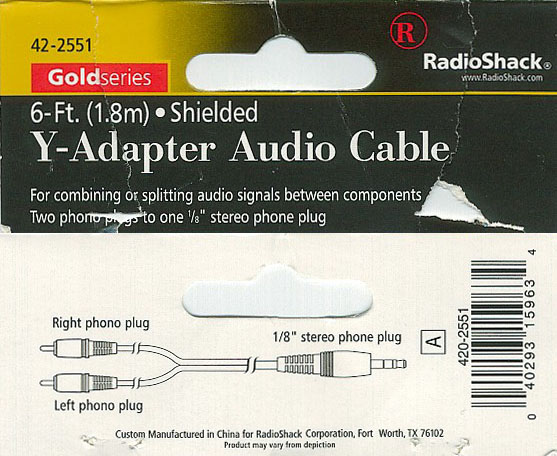

Send 1/8" Ø stereo headphone jack output to RCA type plug inputs on your stereo receiver. Radio Shack sells an adapter (part number 42-2551) with 6 feet of cable for sending the output of your 1/8" Ø stereo headphone jack to RCA type connectors on your stereo system. This way, a portable CD player, cassette player, or portable shortwave radio can be used in conjunction with your favorite stereo amplifier and speakers, or your "alternate" stereo in your workshop, garage, etc. The official Radio Shack description of this part is, "6-Ft. Gold Series Phono-to-1/8" Y-Adapter."
Backstory of how and why I got involved with the AWA after a nine year hiatus: I retired (from my main profession) in March 2020 after 39 years (1981 - 2009: Eastman Kodak Company, 2009 - 2019: Carestream Health, and finally, 2019 - 2020: Philips), and naturally had more time to spend on the radio hobby. So, in August 2020, I contacted Lynn (W2BSN) about volunteering at the AWA Museum again, and he said to contact Mike Migliaccio (N3HLM). On Tuesday, September 15 (Tuesday is the weekly work-day at the Museum), I spoke to Lynn about Mike's cell phone number on the volunteer contacts page of the AWA website, and eventually got Mike's correct mobile number from Lynn, and spoke to Mike on the phone. Mike wasn't at the Museum that day, but at his home. From there, he emailed a PDF copy of the Handbook For Museum Historians. Since it was a beautiful day, I drove my 1966 Mercedes-Benz 250S to Manchester to get acquainted with Mike, and to see his Lionel train layout (a shared interest). Also, I scheduled Mike to be a guest on the Time Out! radio show (WYSL) to talk about his special interest in model trains. The radio interview was scheduled to be recorded Wednesday November 4, and air on Saturday November 7 at 9:00 a.m. and 5:00 p.m.
BFO = A beat frequency oscillator or BFO in radio telegraphy, is a dedicated oscillator used to create an audio frequency signal from carrier wave transmissions to make them audible, as they are not broadcast as such. The signal from the BFO is then heterodyned with the intermediate frequency signal to create an audio frequency signal.
Ø = diameter
DX = Distant Transmitter (as in, listening to long distance broadcasts)
Some notes about reading German schematics:
amplifier = verstarker
bass = bass = B
treble = höhen = H
voltage = spannung
volume = lautstärke = lautst. = LFerrite: From the Latin ferrus, meaning iron. When a radio is said to have a ferrite antenna, that means it is made of iron or another ferrus material.

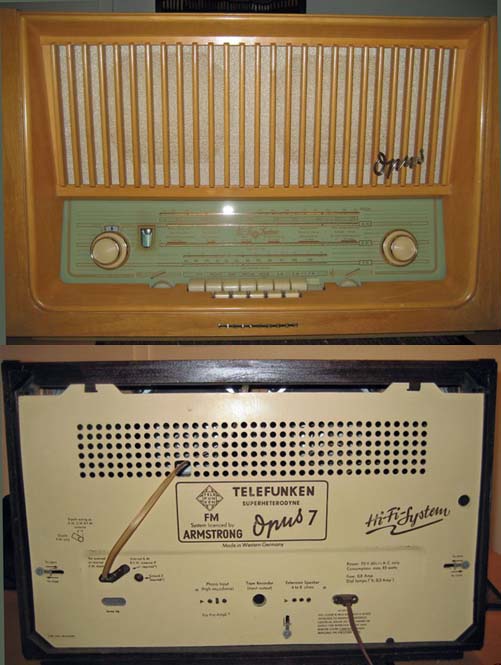

Telefunken: The abbreviation or trade name of the large German wireless concern, the full name of which is Gesellschaft für drahtlose Telegraphie m.b.H. The name is composed of the words "Funken," which is the German plural of "Funk", a spark, and "Tele," which has the same meaning as the English, namely "afar" (from the Greek tele).
Footnotes / References1 "The Lessons of Grundig" (Dr. Sam Vaknin): samvak.tripod.com/brief-grundig01.html
2 Grundig Historical Overview (per Wikipedia): en.wikipedia.org/wiki/Grundig
3 Channel Master cassette recorder model "6305A" (Serial # 973931). DC operation via 5 "C" cells (7.5 V DC). AC operation via a 120 V "wall wart" transformer. Photo Courtesy: Scott Vandusen / February 25, 20084 Radio-Phono Fernseh Katalog courtesy: Bob Havalack (Eager Brothers Music) August 23, 2007
