Mercedes-Benz Ponton Engine Removal
Sub-Frame Castor and Transmission Support
View Ponton Engine Removal (II)
Sub-Frame Castor and Transmission Support
View Ponton Engine Removal (II)

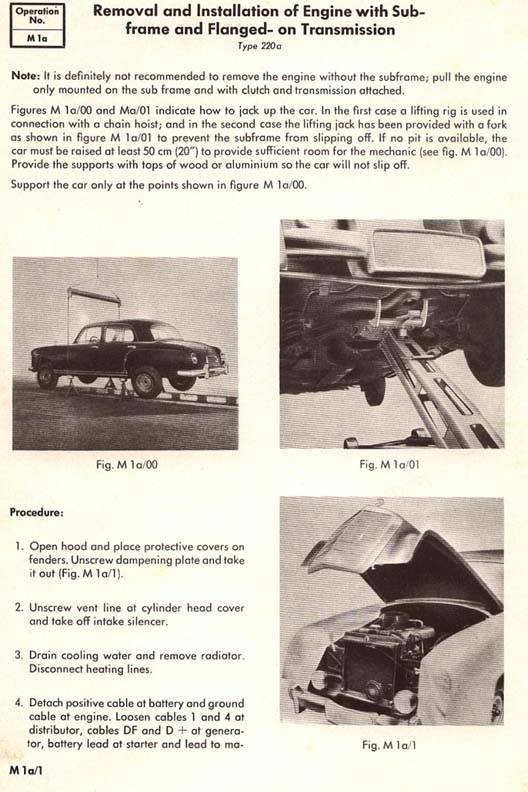

These pages from the Mercedes-Benz service manual (dated 1955 for the Type 220a and 220S) were provided by Bill Vickery who thought they would be appropriate for the International Ponton Owners Group (IPOG) discussions on engine removal.
Created: September 20, 2005 / Jeff Miller
Images courtesy: Bill Vickery / Len Sokoloff
