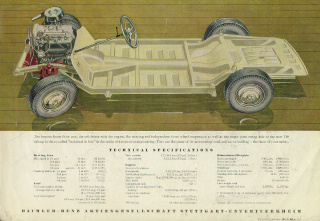

| Mercedes-Benz 180 (W120) Technical Specifications | ||
| Driving data | ||
| Maximum speed | m.p.h. | km/h |
| 1st gear | 26 | 42 |
| 2nd gear | 46 | 74 |
| 3rd gear | 72.5 | 117 |
| 4th gear | approx. 84 | 135 |
| Climbing ability | Gradient | |
| 1st gear | 1 in 2.19 (54%) | |
| 2nd gear | 1 in 3.77 (27.5%) | |
| 3rd gear | 1 in 6.8 (15.5%) | |
| 4th gear | 1 in 11.4 (8.8%) | |
| Fuel | ||
| Fuel consumption during average highway driving | 35-23.5 m.p. Imp. gal. 29-19.5 m.p. US gal. (8 to 12 ltrs./100 km) | |
| Fuel consumption* | 26 m.p. Imp. gal. 21.5 m.p. US gal. (10.9 ltrs./100 km) (measured at 101 km/h) | |
| Tank capacity | 12.3/14.8 Imp./US gal. (56 ltrs.) | |
| incl. reserve | 1.1/1.3 Imp./US gal. (5 ltrs.) | |
| Engine | ||
| Number of cylinders | 4 | |
| Bore/stroke | 3.34/3.29 ins. (85/83.6 mm) | |
| Total piston displacement | 115.75 cu. ins. (1,897 c.c.) | |
| Engine output | 74 gr.HP/4,700 r.p.m. (acc. to SAE) | |
| Max. speed | 6,000 r.p.m. | |
| Compression ratio | 6.8 : 1 | |
| Capacity of cooling system with heating | 2.0/2.4 Imp./US gal. (9 ltrs.) | |
| Capacity of crankcase max./min. | 7.0/4.4 Imp. pts., 8.5/5.3 US pts. (4/2.5 ltrs.) | |
| Oil cooling | oil water heat exchanger | |
| Dimensions/Weights | ||
| Maximum length | 176⅝ ins. | 4,485 mm |
| Maximum width | 68½ ins. | 1,740 mm |
| Maximum height, unloaded | 61⅞ ins. | 1,560 mm |
| Wheelbase | 104⅜ ins. | 2,650 mm |
| Ground clearance, 2 occupants | 7⅝ ins. | 195 mm |
| Turning circle dia. approx. | 35 ft. | 10.7 m |
| Tires | 6.40-13 | |
| Battery | 12 volts/56 Ah | |
| Curb weight with spare wheels and tools | 2,560 lbs. | 1,165 kg |
|
Notes
* Determined at ¾ of maximum speed, max. 110 km/h, less 10%. Design and equipment subject to modifications. |
||
