Mercedes-Benz Ponton Fuse Legends

These Mercedes-Benz Ponton fuse legends were made by scanning the originals, and cleaning them up with Photoshop. If you have a fuse legend in better condition, and can scan it, or make it available for scanning, please contact: editor@mbzponton.org



English Fuse Legend for 4-Cylinder Ponton Models

Try printing the black and white image on off-white card stock.  If you have a color printer, use the image on the right.  These files should be printed at a height of 184 mm (7.25 inches).

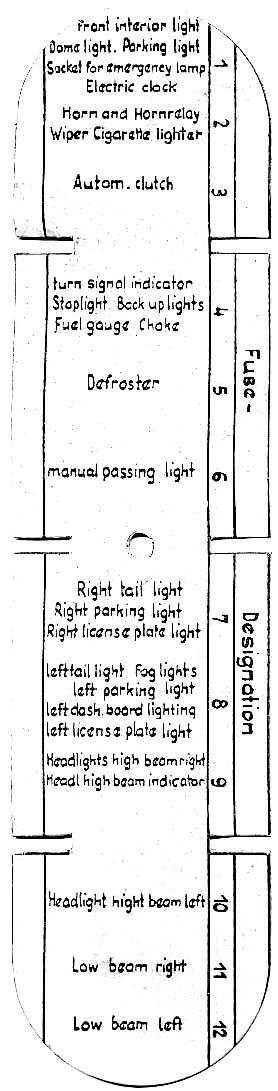

English Fuse Legend for 6-Cylinder Ponton Models

Try printing the black and white image on off-white card stock.  If you have a color printer, use the image on the right.  These files should be printed at a height of 184 mm (7.25 inches). The font used on these fuse cover legends is the original style.




Fuse Legend for 4-Cylinder Ponton Models (German)

Try printing the image on off-white card stock. This file should be printed at a height of 184 mm (7.25 inches).


Created May 2, 2003 / Jeff Miller
German 4-cyl. legend added February 2, 2013
Thanks to Dan Diamond, Bob Graham, and Charly Denecheau
